E100-240-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES 4 SPOOL SERVO ASSEMBLY SSH Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
4	SERVO CONTROL DECAL, 4 SP S5 401/D1237	1	AVAILABLE TO ORDER	$12.17	Quantity
5	(P) GROMMET 2410/1001	1	AVAILABLE TO ORDER	$0.68	Quantity
6	ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055	1	2 IN STOCK	$4.51	Quantity
7	HOSE 1/2" BSP 615mm LONG 613/43200	1	AVAILABLE TO ORDER	$238.72	Quantity

Showing 1 to 4 of 4 parts

DIAG-E130-15-1-404417 E130-15-1 HYDRAULIC CIRCUITS CHASSIS VALVE BLOCK ASSEMBLY, 3 SPOOL
View Diagram

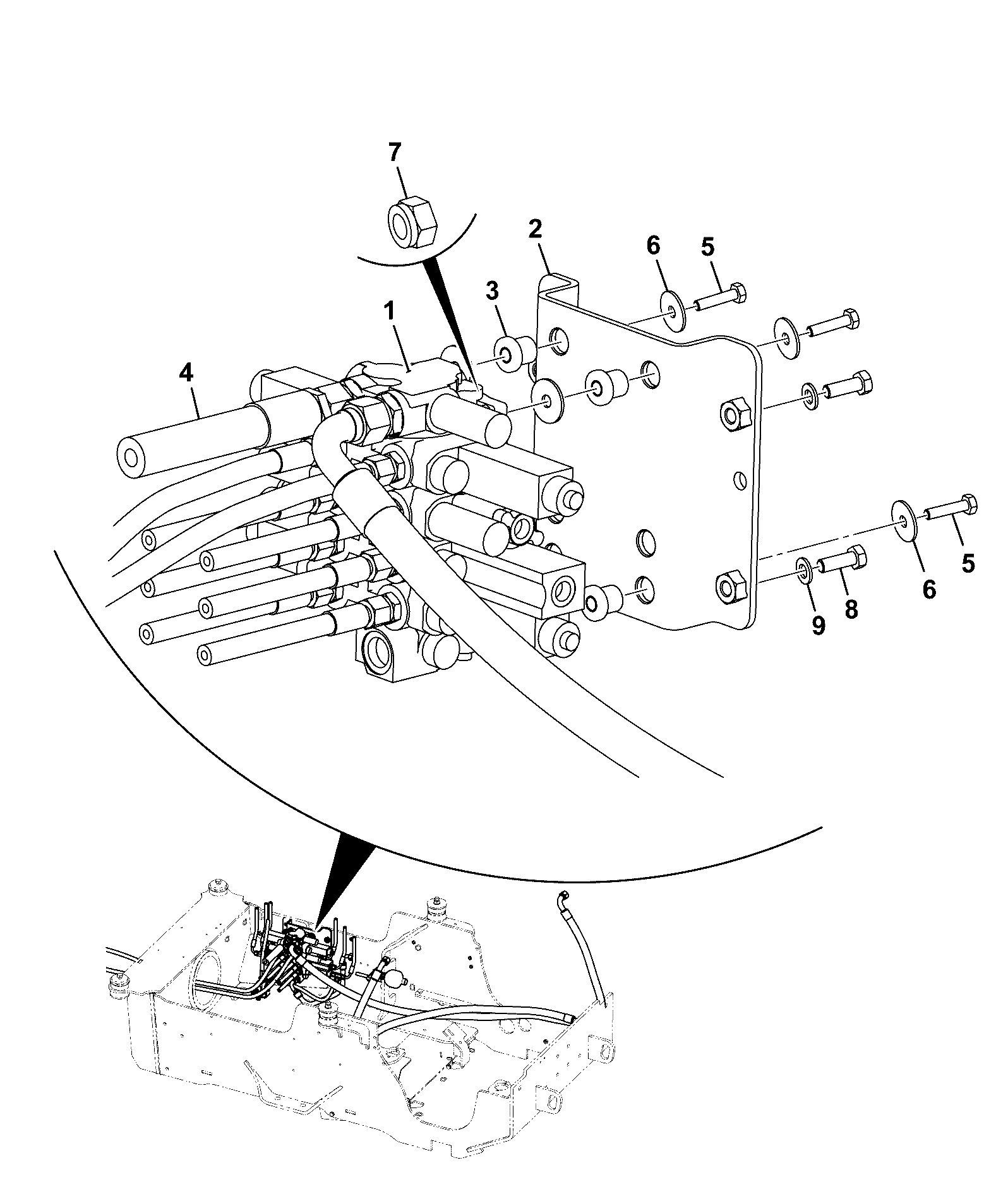

DIAG-E300-35-5-404417 E300-35-5 VALVE INSTALLATION ASSEMBLIES VALVE 4 SPOOL SERVO ASSEMBLY
View Diagram

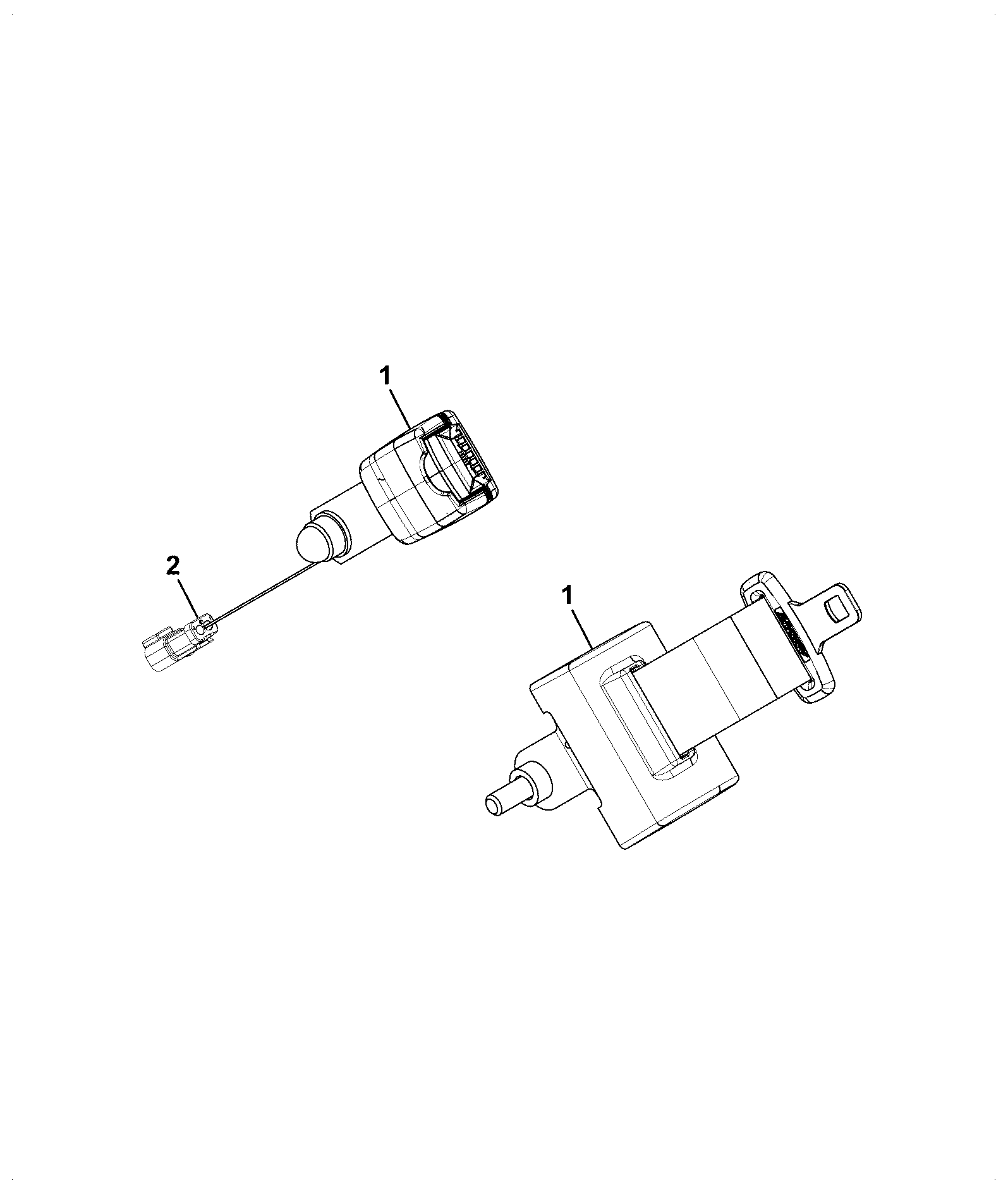

DIAG-B260-65-1-404417 B260-65-1 SEATS ABI BLACK SEATBELT KIT
