Scroll to zoom Click a part # to view details

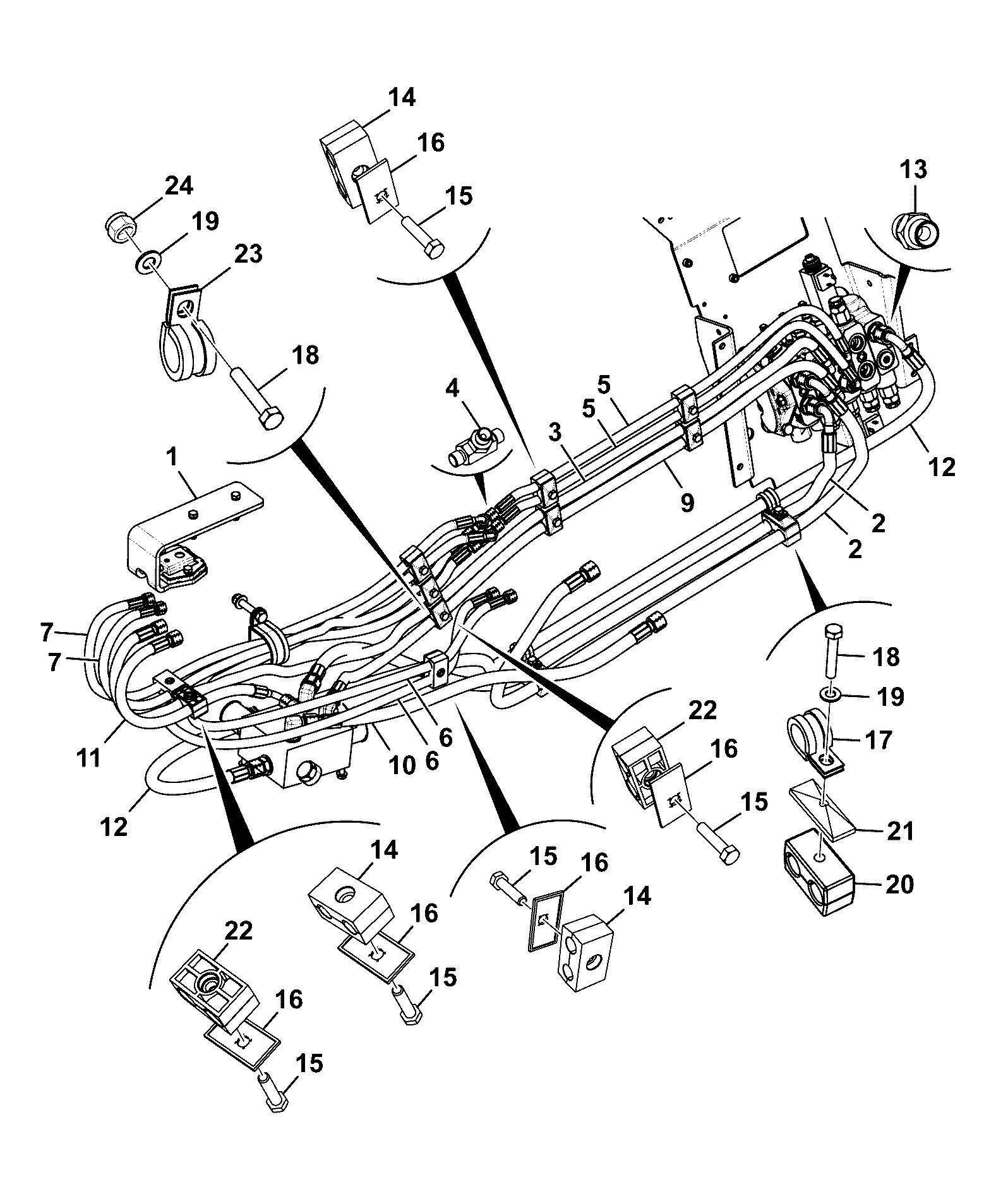

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | SOLENOID VALVE.LOCK OUT 25/220897 | 1 | $201.95 | |||
| 8 | ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $4.44 | |||
| 9 | HOSE 5/8 BSP HP 900C 34AP/ED090 | 1 | $100.07 | |||
| 10 | HOSE -12 BSP LP 580C 25AP/CA058 | 1 | $105.04 | |||
| 11 | HOSE3/4-310-90-ST 635/80035 | 1 | $122.07 | |||
| 32 | HOSE -12 BSP LP 1080C 25AP/EA108 | 1 | $126.10 | |||
| 42 | SUCTION HOSE - CHARGE 332/S0824 333/P1063 | 1 | $54.18 | |||
| 43 | SUCTION HOSE - GEAR 333/T8824 | 1 | $122.42 | |||
| 44 | BLANKING SLEEVE 835/00152 | 1 | $32.88 | |||
| 58 | Adapter tee 816/90511 | 1 | $22.49 | |||
| 63 | 816/90062OR 3/8 BSP 816/90061 | 1 | $201.50 | |||
| 65 | ADAPTOR G5/8A-1-1/16UNF(M) 1620/0008 1620/2057 | 1 | $25.23 | |||
| 66 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 70 | HYDRAULIC FILTER 32/926033 333/W2486 | 1 | $448.82 | |||
| 85 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 88 | 'HOSE CLAMP.CROSS OVER TUBE(KANBAN) (BR3 320/05529 320/05569 | 1 | $16.87 | |||
| 92 | HOSE -12 BSP UHP 860mm B 624/80054 | 1 | $196.63 | |||
| 93 | HOSE 624/20400 | 1 | $270.15 | |||
| 94 | HOSE 5/8" LP 634/32100 | 1 | $88.14 | |||
| 98 | HOSE 624/20200 | 1 | $233.27 | |||
| 99 | 1/4' HOSE 675mm 332/S5663 | 1 | $54.49 | |||
| 100 | HOSE 3/8BSP 620mm 612/80249 | 1 | $58.60 | |||
| 101 | HOSE 633/10500 | 1 | $63.15 | |||
| 103 | Hose 624/80040 | 1 | $240.01 | |||
| 104 | BOSS STEER LEVER 829/30160 | 1 | $3.67 | |||
| 105 | ADAPTOR 1/2 BSP X9/16-18 816/90038 | 1 | $5.96 | |||
| 106 | (W) (Pre-P)-BOLT M6x70 1315/3216D | 1 | $6.97 | |||
| 107 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 108 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.22 | |||
| 110 | (S) CAP - 3/4"BSP 816/00196 | 1 | $36.35 | |||
| 111 | HOSE 1/2 IN BSP 633/31100 | 1 | $261.06 | |||
| 112 | HOSE -10 BSP HP 550 mm B 614/80055 | 1 | $61.53 | |||
| 113 | ADAPTER, ELBOW 816/90229 | 1 | $58.75 | |||
| 114 | ADAPTER 816/90141 | 1 | $29.50 | |||
| 115 | HOSE 3/4 BSP LP 1400C 25AP/CG140 | 1 | $136.27 | |||
| 117 | ADAP ELBOW 3/4 816/90163 | 1 | $28.85 | |||
| 118 | BLANKING CAP 3/8 BSP 816/90044 | 1 | $17.85 | |||
| 119 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 122 | TEE ADAPTOR M/F/F 816/90384 | 1 | $43.70 | |||
| 123 | CLIP WORMDRIVE WF 25/40mm 333/R7966 | 1 | $10.95 | |||
| 124 | PLUG 9/16UNF O RING BOSS 1745/0002 | 1 | $106.02 | |||
| 125 | HYDRAULIC TEST POINT ADAP 332/V3873 401/N8244 | 1 | $19.06 | |||
| 126 | ADAPTOR TEE 816/50010 | 1 | $20.30 | |||
| 127 | HOSE 1/2 BSP HP 1520B 33AP/BA152 | 1 | $84.71 | |||
| 129 | HOSE 1/2BSP 1960mm 613/80146 | 1 | $100.45 | |||
| 130 | ADAPTOR TEE M/M/F 816/90372 | 1 | $101.58 | |||
| 131 | Hose 1/4 BSP L/P 1620mm 332/S8878 | 1 | $282.27 | |||
Showing 1 to 47 of 47 parts
Related Assemblies
-
DIAG-E100-20-1-397381 E100-20-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES TLT 35D 2WD T4 NEUTRAL
View Diagram -

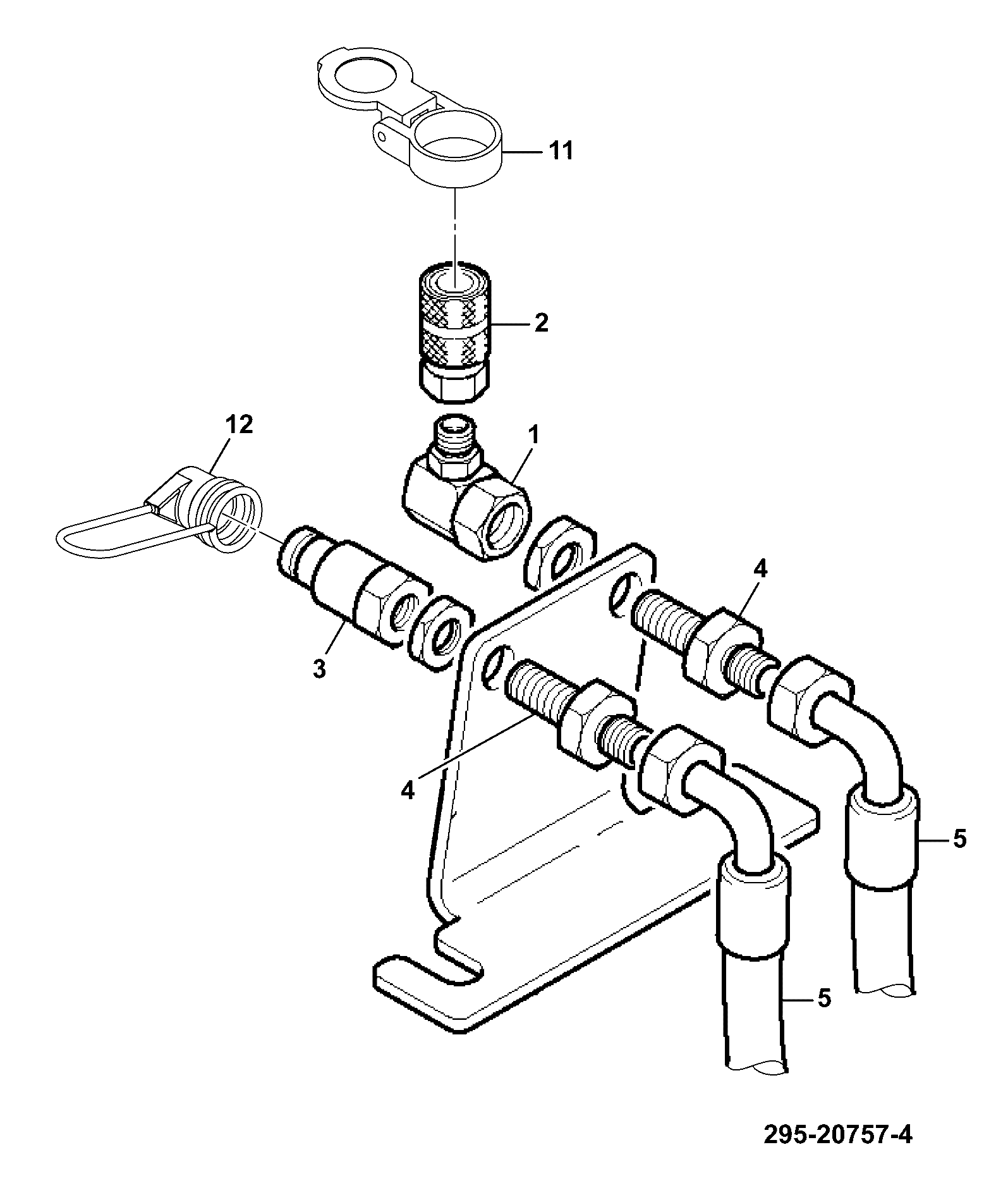

DIAG-E110-10-1-397381 E110-10-1 HYDRAULIC CIRCUITS ATTACHMENTS COUPLINGS ASSEMBLY
View Diagram -
DIAG-E120-50-5-397381 E120-50-5 HYDRAULIC CIRCUITS LOADER END 3.5T & HI-LIFT LMC
View Diagram
