Scroll to zoom Click a part # to view details

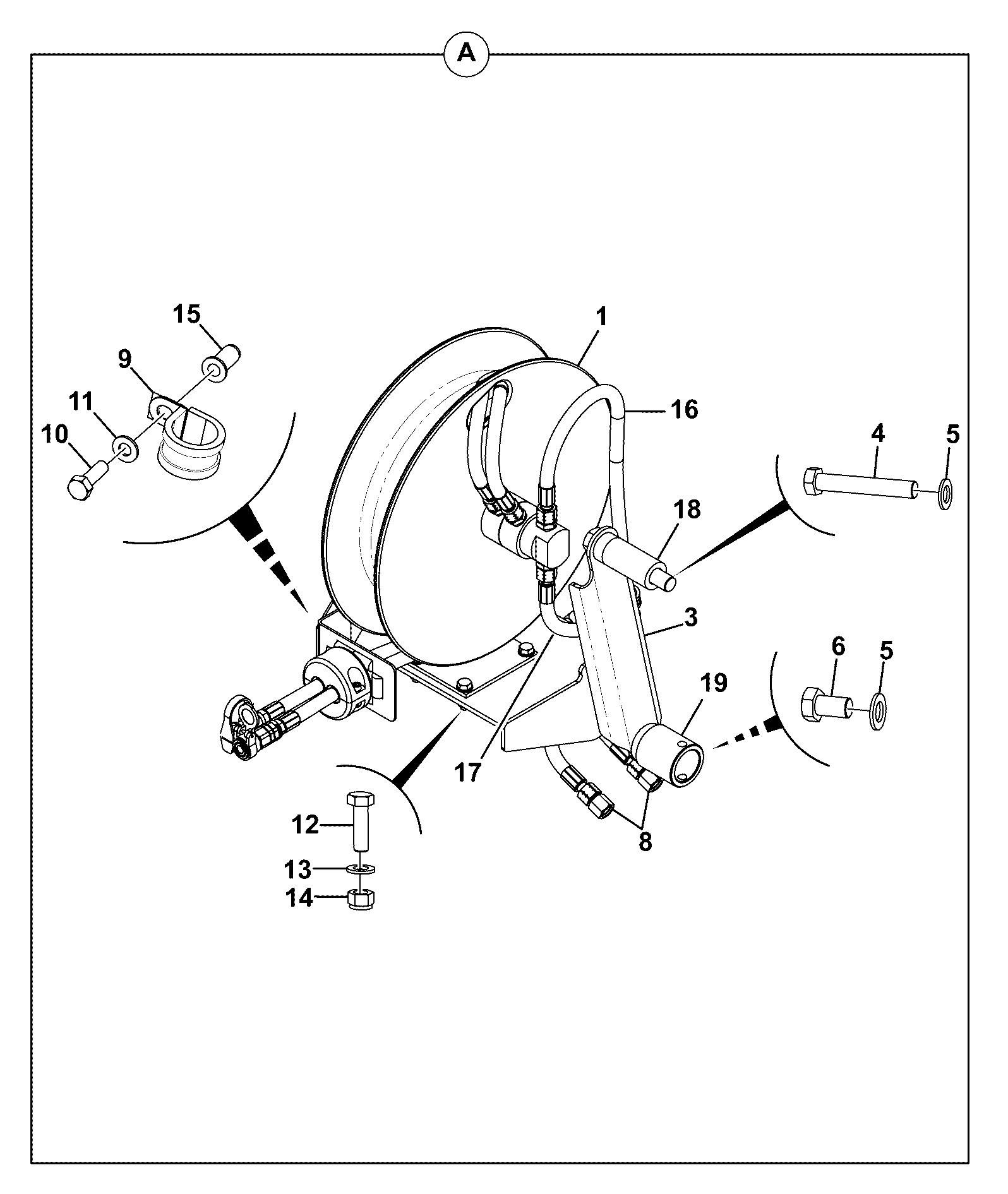

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ABI HOSE REEL 128/ 128/C8040 | 1 | $7,505.31 | |||
| 3 | WA MOUNT hose reel 3CX 128/D1173 | 1 | $1,179.94 | |||
| 4 | BOLT 1315/4025Z | 1 | $81.50 | |||
| 5 | WASHER M24 PLAIN 1420/0014Z | 1 | $6.23 | |||
| 6 | BOLT 1315/1010Z | 1 | $64.66 | |||
| 8 | ADAPTER 816/90019 | 1 | $53.85 | |||
| 9 | P CLIP M8 28MM FIXING(KANBAN) (BR3) 821/10474 | 1 | $6.05 | |||
| 10 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $0.37 | |||
| 11 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 12 | SET M12 L-40mm HT 1315/0510Z | 1 | $2.57 | |||
| 13 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $1.15 | |||
| 14 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $6.91 | |||
| 15 | RIVET NUT M8 826/01254 826/01106 | 1 | $1.15 | |||
| 16 | HOSE 1/2 BSP HP 1100A 33AP/AA110 | 1 | $66.23 | |||
| 17 | HOSE 1/2 BSP HP 660A 33AP/AA066 | 1 | $52.08 | |||
| 18 | SPACER 333/D1437 | 1 | $70.16 | |||
| 19 | HOSE REEL COLLAR 401/P2832 | 1 | $167.49 |
Showing 1 to 17 of 17 parts
Related Assemblies
-
DIAG-E100-225-1-394821 E100-225-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES TWIN HOSE REEL 2WS WITHOUT LOADER LOCKOUT VALVES
View Diagram -

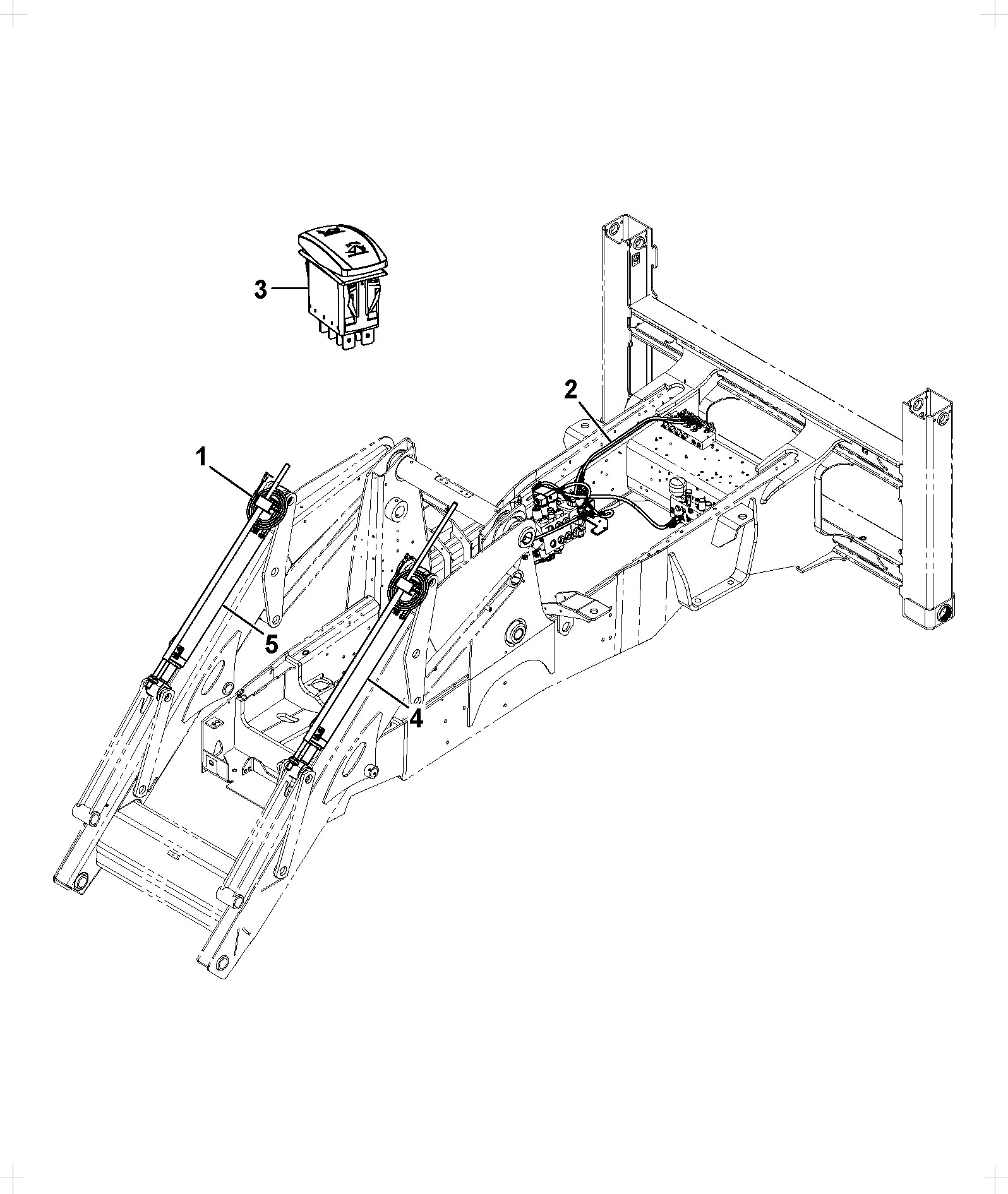

DIAG-E100-310-1-394821 E100-310-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES ASSEMBLY RETURN TO GRADE/DIG AEC
View Diagram -

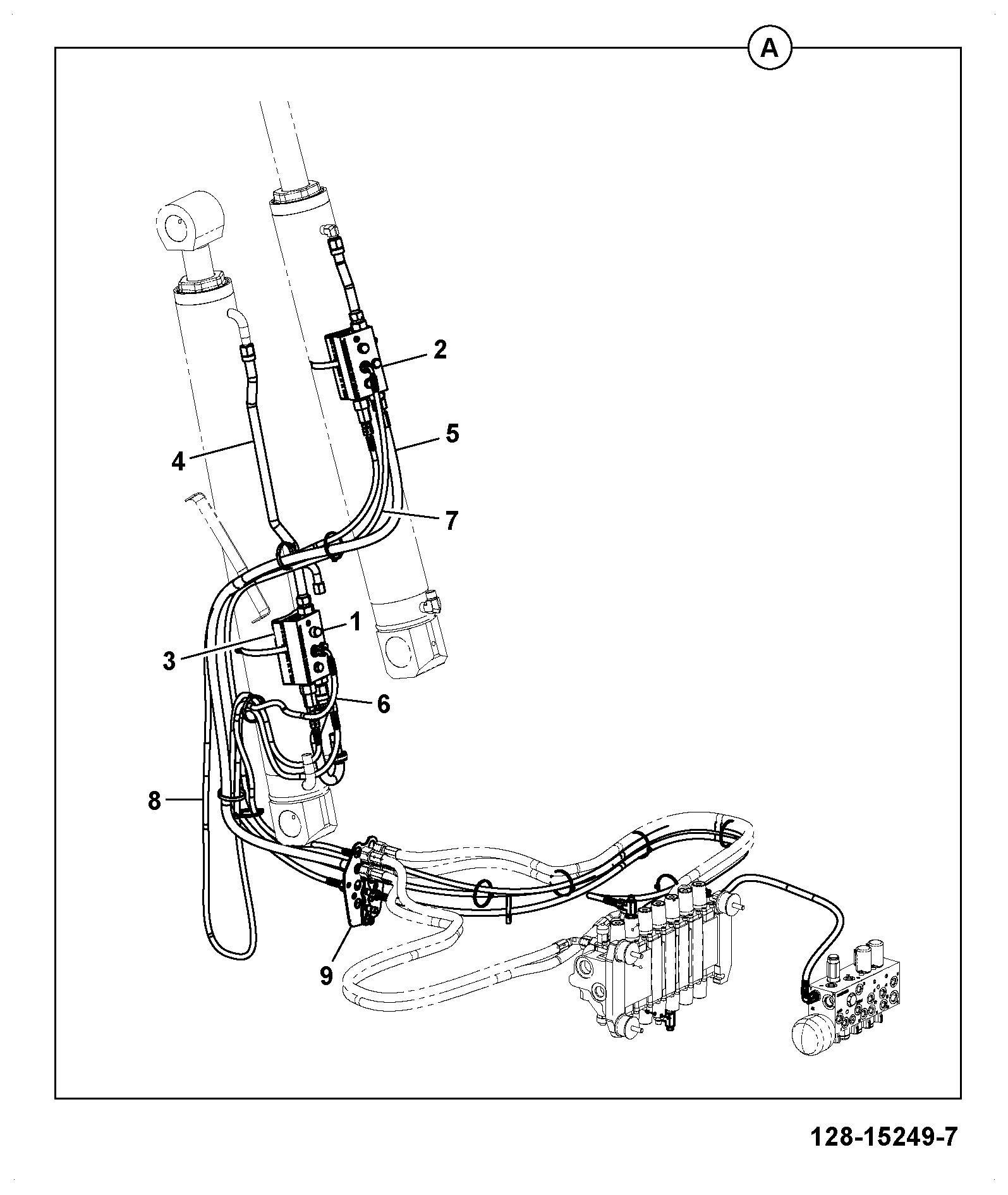

DIAG-E100-105-1-394821 E100-105-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES CIRCUIT LOCKOUT PC4 B/D 14 S/S
View Diagram
