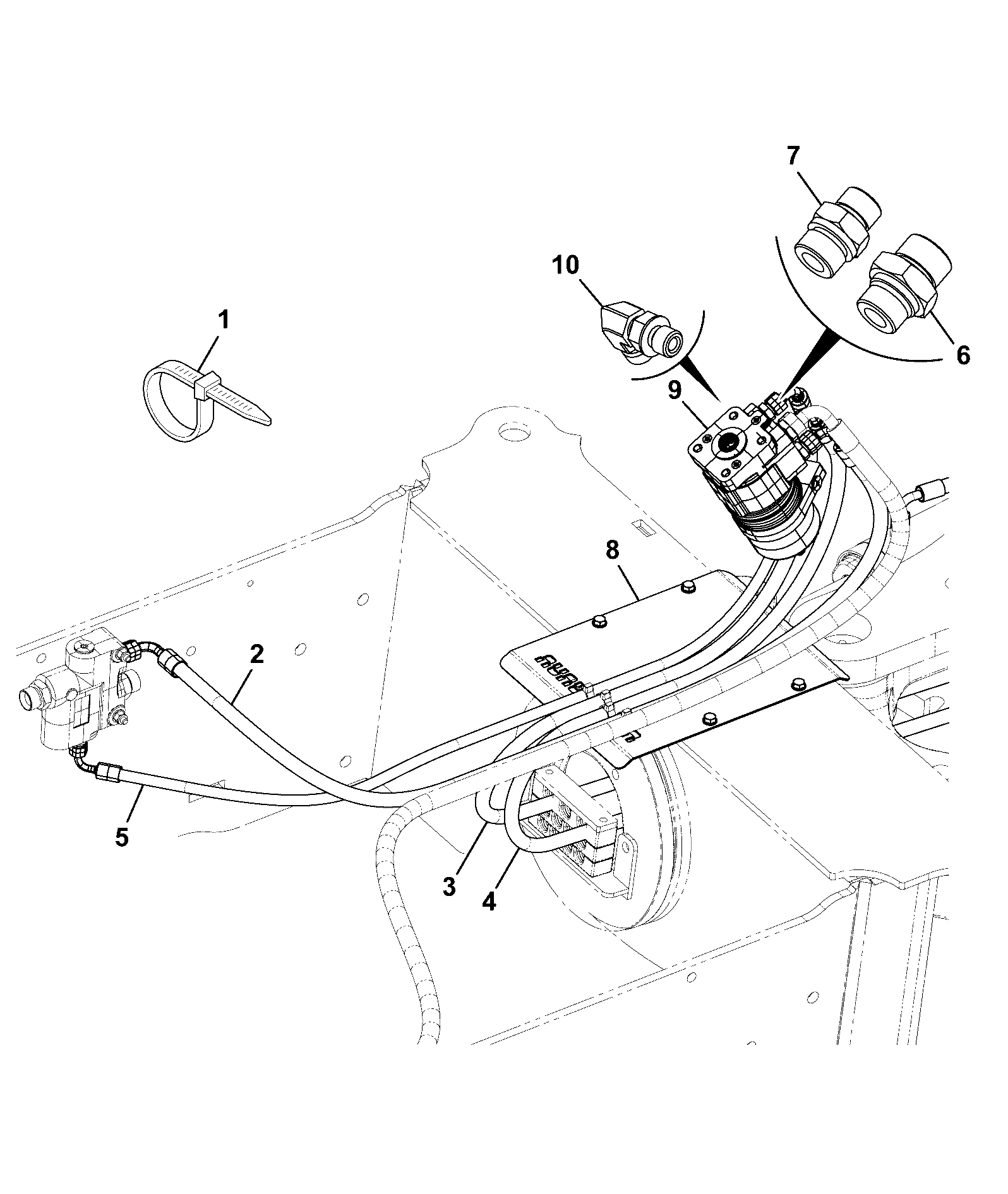

E100-170-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES 3 SPOOL SERVO, HIGH SPEED, LOCKING DIFFRENTIAL Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
5	(P) GROMMET 2410/1001	1	AVAILABLE TO ORDER	$0.68	Quantity
9	HOSE 1/2" BSP 615mm LONG 613/43200	1	AVAILABLE TO ORDER	$238.72	Quantity
10	ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055	1	2 IN STOCK	$4.51	Quantity
11	SERVO CONTROL DECAL, 3 SP S5 401/D1337	1	AVAILABLE TO ORDER	$12.17	Quantity

Showing 1 to 4 of 4 parts

DIAG-E100-165-1-404414 E100-165-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES 3 SPOOL SERVO CONTROLS
View Diagram
DIAG-E100-225-1-404414 E100-225-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES 3 SPOOL SERVO ASSEMBLY HIGH SPEED SSH
View Diagram
DIAG-E100-160-1-404414 E100-160-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES STEERING HYDRAULICS ASSEMBLY
View Diagram
