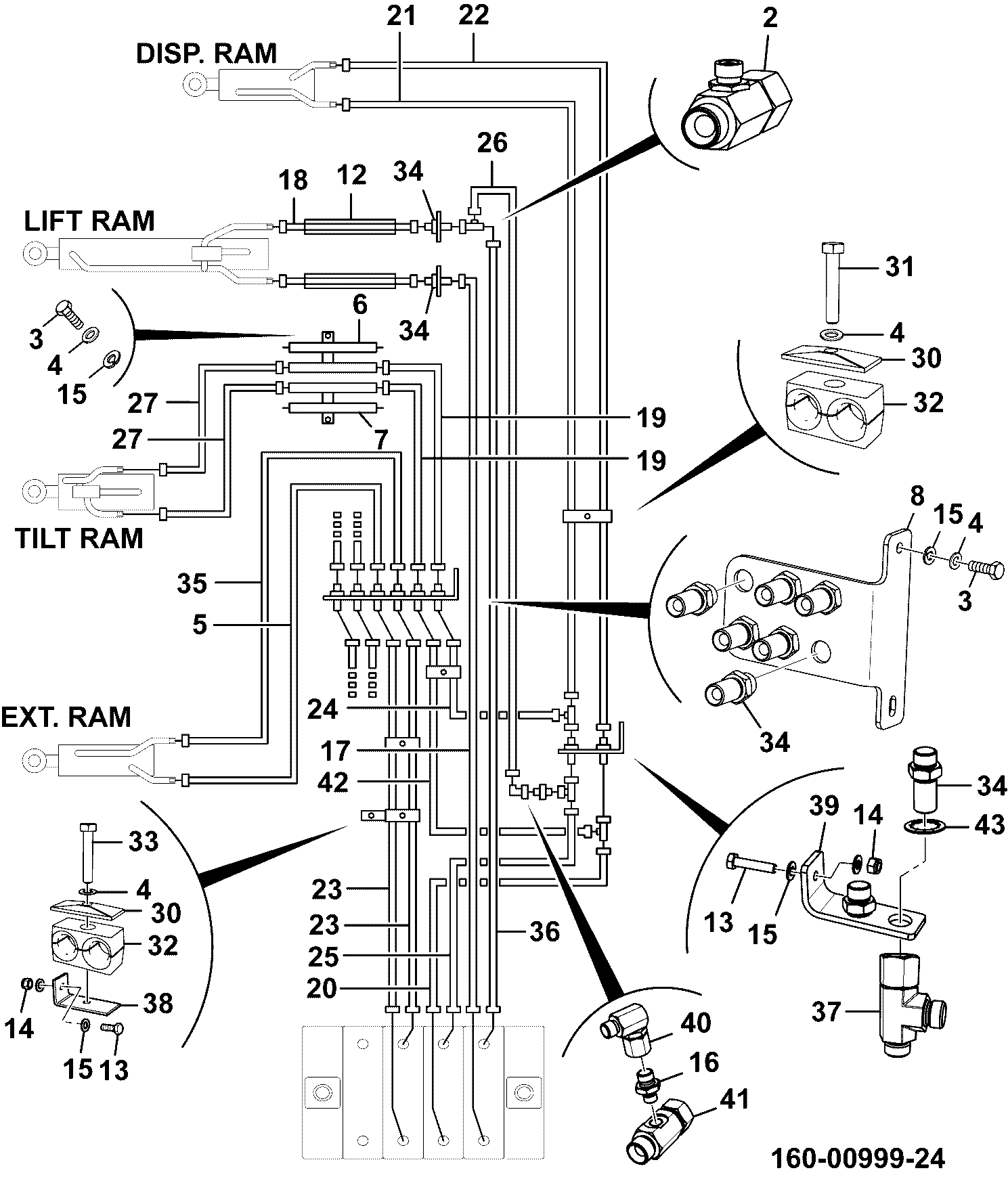

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | 6-WAY SOLENOID C/O VALVE 332/G3907 | 1 | $1,053.46 | |||
| 2 | P42 BOOM AUX HARNESS 721/G3060 | 1 | $449.92 | |||
| 3 | ADAPTOR 816/90027 | 1 | $50.66 | |||
| 4 | COUPLING QR MALE HQ10 - 3/8BSP 45/920021 | 1 | $151.23 | |||
| 4 | QRC M + CAP2 BSP 3/8 400/F4972 | 1 | $142.88 | |||
| 5 | FEMALE Q/R COUPLING 45/916200 | 1 | $183.76 | |||
| 5 | QRC F + CAP2 BSP 3/8 400/F4968 | 1 | $101.96 | |||
| 6 | WASHER BONDED 3/8" BSP(KANBAN) 1406/0015 | 1 | $1.52 | |||
| 7 | BOLT M8x100 1315/3320Z | 1 | $7.18 | |||
| 8 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 9 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 10 | CABLE TIE 120mm 204/07006 | 1 | $1.64 | |||
| 11 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 12 | WA LH PIPE TWIN AUX FF 400/M9288 | 1 | $148.76 | |||
| 13 | WA RH PIPE TWIN AUX FF 400/M9377 | 1 | $152.35 | |||
| 14 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 15 | SA HOSE 6740mm YELLOW 333/E0841 402/X2741 | 1 | $338.29 | |||
| 16 | ADAPTOR G3/8Ax3/4 SAE 1620/2067 | 1 | $32.96 | |||
| 17 | SA HOSE 1/2BSP 660mm HP S 334/C9238 | 1 | $92.43 | |||
| 20 | HOSE 613/24300 | 1 | $218.85 | |||
| 21 | CLAMP (1EA = 2 HALF) 821/00285 | 1 | $34.86 | |||
| 22 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 23 | (W) (P) BOLT M8x50 1315/3312Z | 1 | $3.83 | |||
| 24 | BOLT M8x80(KANBAN) 1315/3318Z | 1 | $2.44 | |||
| 25 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 26 | GA 2 AUX. CHAIN TRACKING P42 Kit form 333/E1663 | 1 | $843.67 | |||
| 33 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | |||
| 34 | 2 WAY AMP JT TO DEUTSCH D 721/10763 | 1 | $39.86 | |||
Showing 1 to 28 of 28 parts
Related Assemblies
-
DIAG-E120-40-1-400201 E120-40-1 HYDRAULIC CIRCUITS LOADER END 531-70
View Diagram -
DIAG-E120-40-5-400201 E120-40-5 HYDRAULIC CIRCUITS LOADER END 531-70
View Diagram -
DIAG-D330-1-1-400201 D330-1-1 STEERING LINKAGES ARM
View Diagram
