Scroll to zoom Click a part # to view details

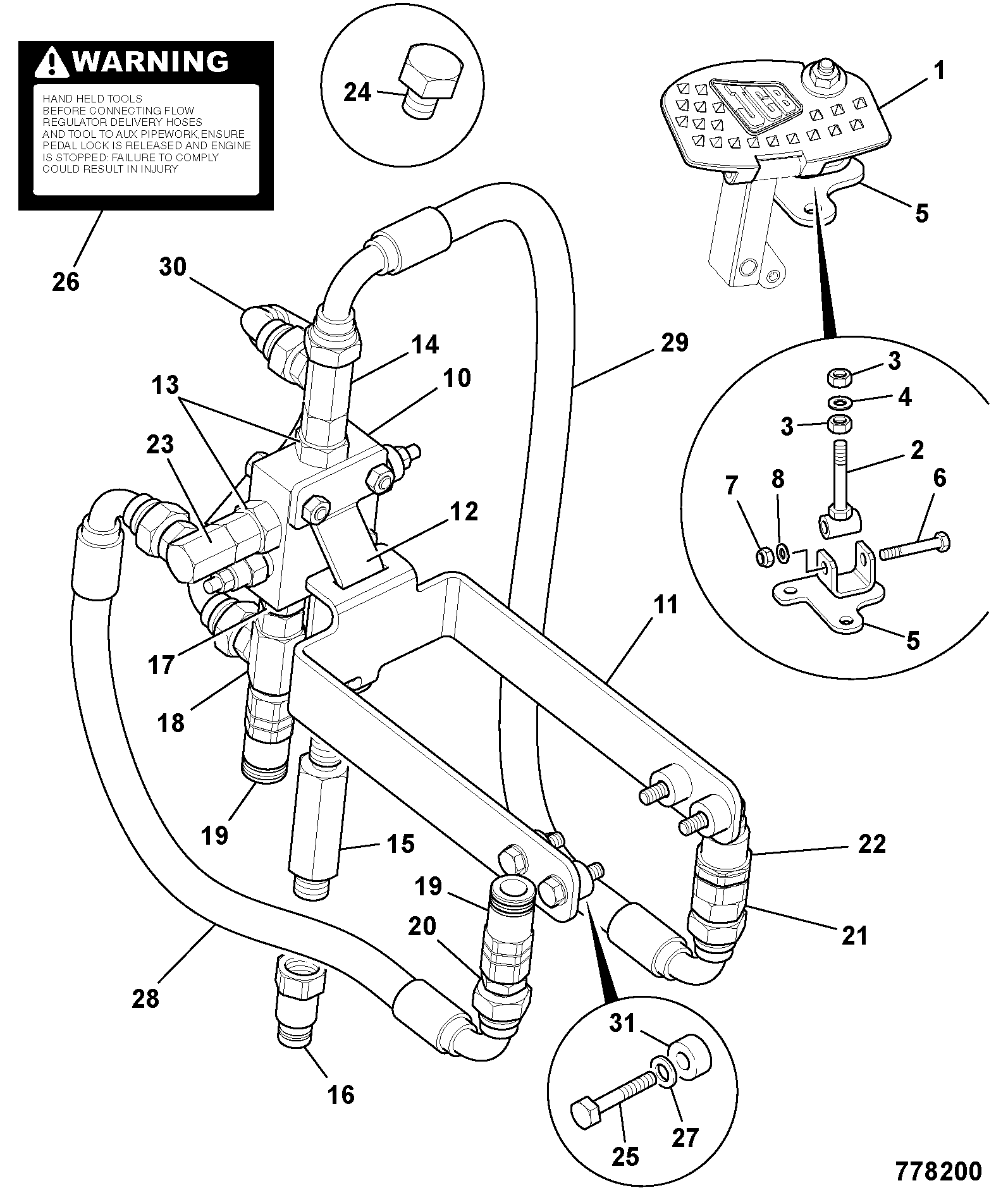

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| KIT-HTC 980/90357 | 1 | $1,854.99 | ||||
| PLUG 1/4 NPTF G8/21 | 1 | $6.11 | ||||
| 3 | LABEL - HANDHELD TOOLS 817/02441 | 1 | $6.94 | |||
| 4 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 5 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 6 | WASHER M_8 LARGE(KANBAN) 823/00322 | 1 | $4.06 | |||
| 7 | COUPLING QR MALE 10 -8SAE 45/920050 | 1 | $103.37 | |||
| 8 | Adapter 816/90587 | 1 | $127.58 | |||
| 10 | VALVE FLOW REGULATOR 25/221163 | 1 | $1,324.66 | |||
| 11 | ADAPTOR G1/2A-1-1/16UNF (M/M) 1620/2068 | 1 | $8.12 | |||
| 12 | 1/2 BSP TEE PIECE 816/90001 | 1 | $20.89 | |||
| 13 | HOSE 1/2BSP 660mm 613/05200 | 1 | $107.69 | |||
| 14 | COUPLING QR FEMALE HQ10 - 8SAE 45/920049 | 1 | $160.53 | |||
| 15 | COUPLING QR MALE HQ12 - 12SAE 45/920048 | 1 | $58.34 | |||
| 16 | Adapter tee 1/2 x 816/90541 | 1 | $75.41 | |||
| 17 | BRACKET 231/98012 | 1 | $34.98 | |||
| 18 | BOLT M10x60 1315/3414Z | 1 | $1.95 | |||
| 19 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-E1-9-1-397809 E1-9-1 CIRCUIT HAND HELD TOOLS
View Diagram -
DIAG-E1-9-3-397809 E1-9-3 CIRCUIT HAND HELD TIER 3
View Diagram -
DIAG-E1-8-10-397809 E1-8-10 AUXILIARY CONVERSION SINGLE TO DOUBLE ACTING
View Diagram
