E1-9-2 CIRCUIT, BOOM ISO Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	HOSE 613/35800	1	AVAILABLE TO ORDER	$64.79	Quantity
3	Hose 613/35900	1	AVAILABLE TO ORDER	$256.48	Quantity
4	BULKHEAD ADAPTOR 816/10149	1	AVAILABLE TO ORDER	$65.45	Quantity
6	HOSE 613/35500	1	AVAILABLE TO ORDER	$198.66	Quantity

Showing 1 to 4 of 4 parts

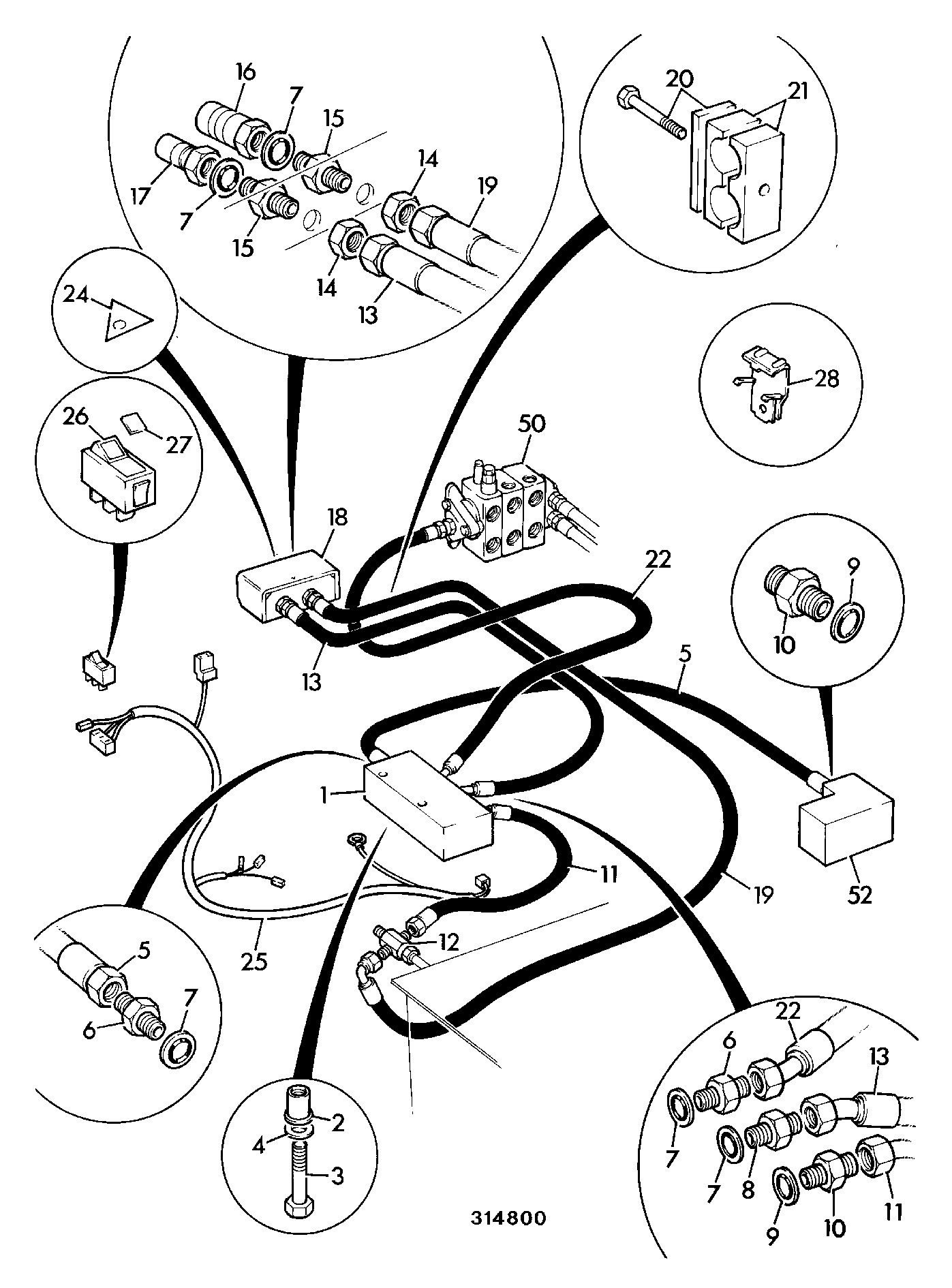

DIAG-E1-9-1-394286-10696846 E1-9-1 CIRCUIT, BOOM JCB
View Diagram

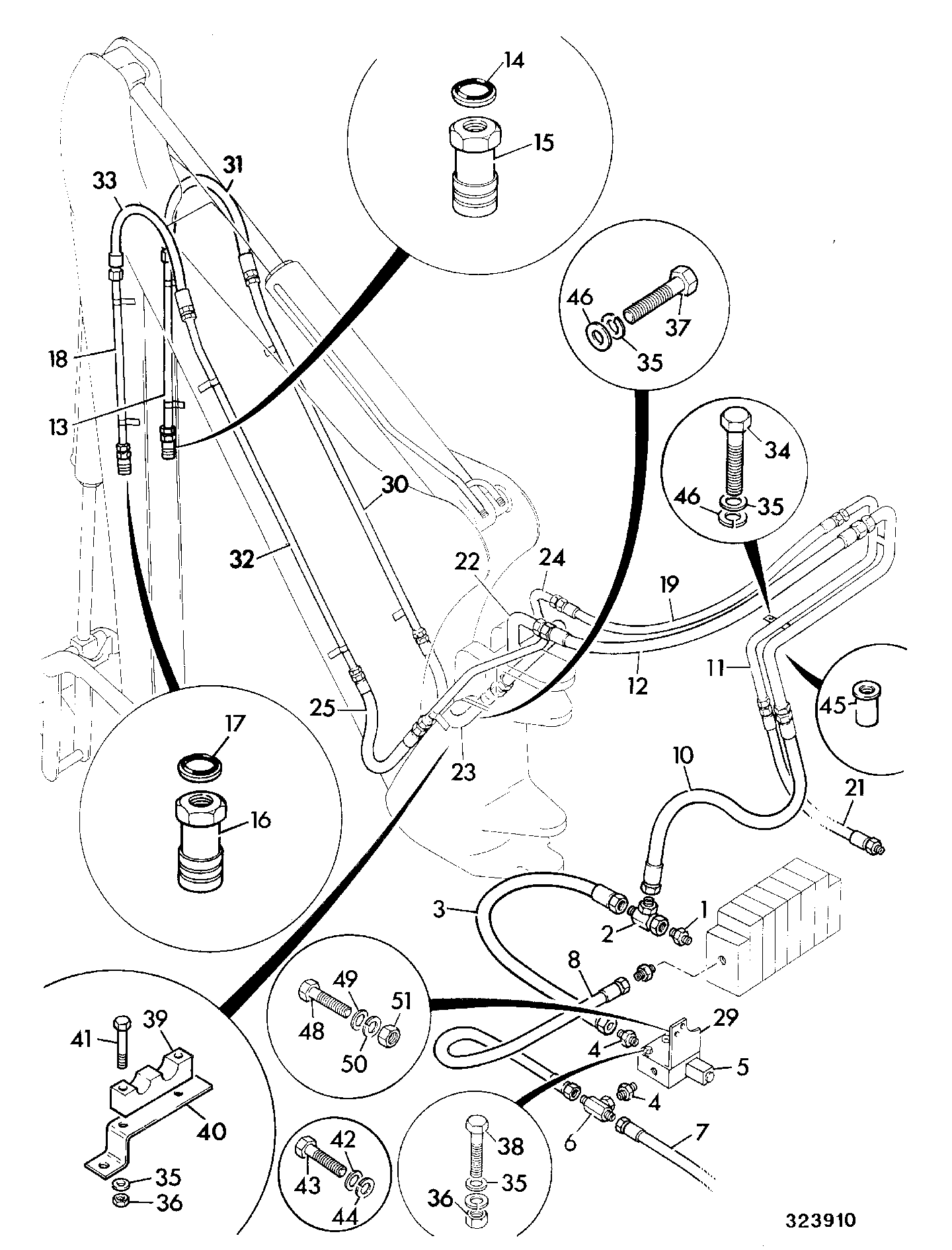

DIAG-E1-11-1-394286 E1-11-1 CIRCUIT, EXCAVATOR AUXILIARY STANDARD AND EXTENDING DIPPER
