Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | SUCTION HOSE hyd.oil - ATB 834/10788 | 1 | $602.27 | |||
| 2 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
| 3 | ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $12.58 | |||
| 3A | 'O' RING (P564) 2401/0507 | 1 | $1.46 | |||
| 4 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 5 | ADAPTOR TEST POINT 816/90427 | 1 | $161.90 | |||
| 6 | ADAPTOR 7/8SAE x G5/8A 816/90239 | 1 | $434.85 | |||
| 7 | ELBOW ADAPTOR M/M 816/90461 | 1 | $20.76 | |||
| 9 | HOSE 5/8BSP 670mm 614/03400 | 1 | $159.47 | |||
| 10 | ADAPTOR 1-1/16SAExG5/8A 816/90476 | 1 | $71.09 | |||
| 10A | O-RING 2401/0508 | 1 | $3.28 | |||
| 11 | RETURN MANIFOLD 2C 335/03267 128/G0007 | 1 | $93.71 | |||
| 12 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 13 | SET SCREW M10x40 1315/0410Z | 1 | $2.26 | |||
| 14 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 15 | HOSE-HYD 635/30800 | 1 | $135.38 | |||
| 16 | ADAPTER 816/17065 | 1 | $7.55 | |||
| 16A | O-RING 2401/0506 | 1 | $1.46 | |||
| 17 | CHECK VALVE 2 BAR 25/221102 | 1 | $127.30 | |||
| 18 | WASHER BONDED 1"BSP 1406/0026 | 1 | $11.54 | |||
| 19 | ADAPTOR G1A M/M 1604/0008 1604/2057 | 1 | $33.09 | |||
| 20 | HOSE 1BSP 500mm 637/33400 | 1 | $169.73 | |||
| 21 | HOSE 614/00500 | 1 | $209.92 | |||
| 22 | HOSE 5/8BSP 1200mm LG 614/02400 | 1 | $111.47 | |||
| 23 | DUAL HOSE CLAMP SET 821/10431 | 1 | $1.52 | |||
| 24 | CLAMP PLATE 821/00496 | 1 | $4.93 | |||
| 26 | BOLT M10x80(KANBAN) 1315/3418Z | 1 | $1.63 | |||
| 29 | ADAPTOR M/CING. 816/60249 | 1 | $49.59 | |||
| 29A | O RING 2401/0511 | 1 | $16.19 | |||
| 30 | CLIP - WORMDRIVE 80/100mm(KANBAN) 2201/0015 | 1 | $7.00 | |||
| 31 | COOLER OIL 9 + 16 30/925885 | 1 | $2,953.08 | |||
| 33 | T-ADAPTOR 5/8 BSP 334/Y6894 816/90011 | 1 | $171.19 | |||
| 34 | (W) CLIP - WORMDRIVE 16/27mm(KANBAN) 2201/0005 | 1 | $5.10 | |||
| 35 | HOSE 5/8BSP 3000mm 649/51316 | 1 | $86.94 | |||
| 37 | CLAMP TOP 11/4" PI 821/10021 | 1 | $6.66 | |||
| 38 | CLAMP BASE 11/4" P 821/10022 | 1 | $6.47 | |||
| 39 | CLAMP INSERT 821/00528 | 1 | $7.99 | |||
| 40 | RIVET NUT-M10 826/01104 | 1 | $6.97 | |||
| 43 | R/H HOSE GUIDE 335/06007 | 1 | $281.16 | |||
| 44 | W) CLIP - WORMDRIVE 20/32mm 2201/0006 | 1 | $5.14 | |||
| 45 | SPIRAL HOSE GUARD 600mm 647/11801 | 1 | $11.12 | |||
Showing 1 to 41 of 41 parts
Related Assemblies
-
DIAG-E1-7-2-395086 E1-7-2 CIRCUIT HYDRACLAMP
View Diagram -

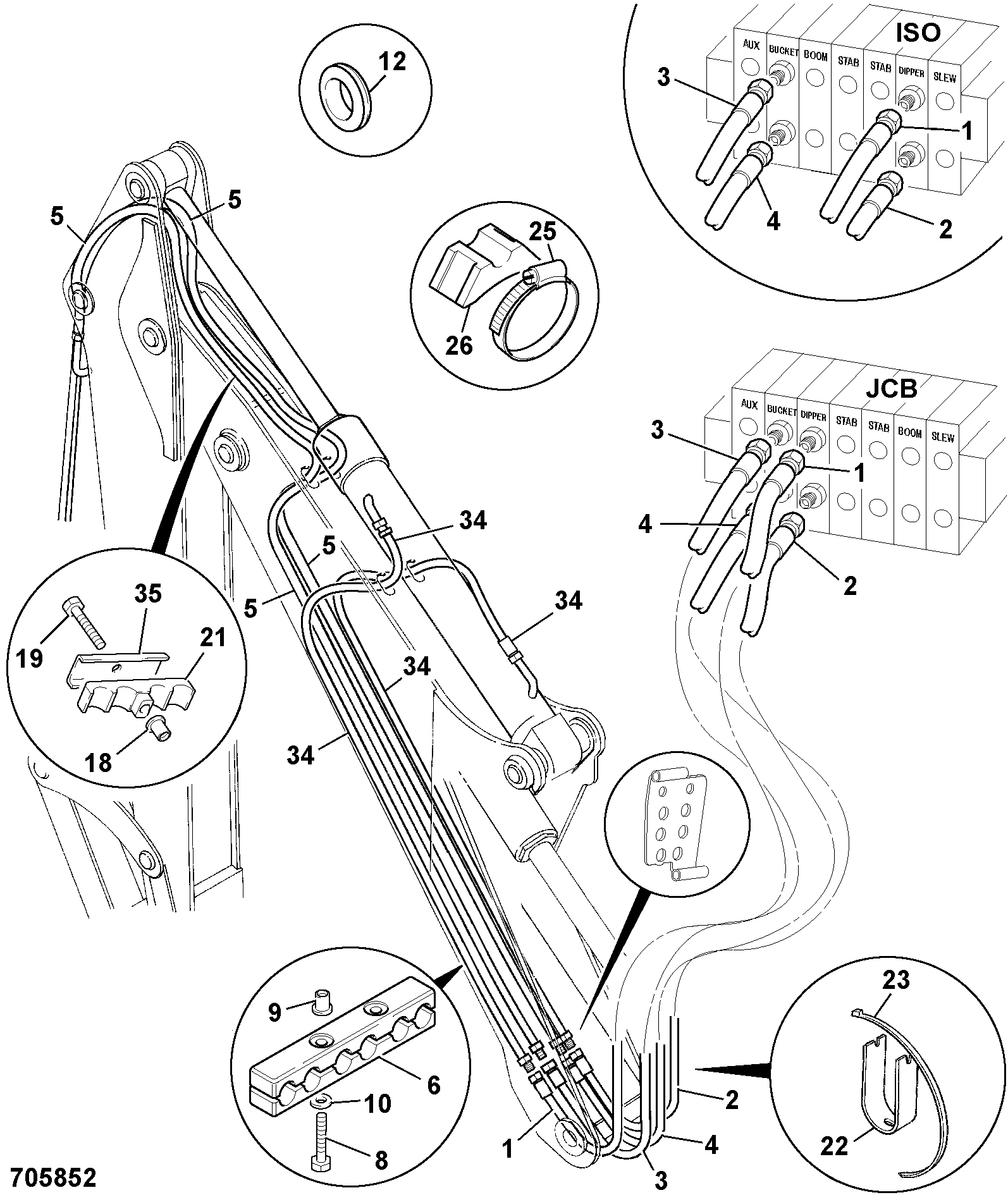

DIAG-E1-5-30-395086 E1-5-30 CIRCUIT DIPPER & BUCKET ISO & JCB, 12' EXCAVATOR END FIXED
View Diagram -
DIAG-E1-5-10-395086 E1-5-10 CIRCUIT DIPPER & BUCKET ISO & JCB,10' EXCAVATOR END FIXED 1850MM
View Diagram
