Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Pedal foot 589/10117 | 1 | $349.30 | |||
| 3 | NUT M10 PLAIN 1370/0301Z 1370/0301D | 1 | $3.28 | |||
| 4 | PLAIN WASHER 823/00377 | 1 | $7.10 | |||
| 5 | Bracket 335/03838 | 1 | $552.80 | |||
| 6 | BOLT M10x60 1315/3414Z | 1 | $1.95 | |||
| 7 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 8 | WASHER M10 1422/0008D JHP0046 | 1 | $11.36 | |||
| 9 | VALVE FLOW REGULATOR 25/221163 | 1 | $1,324.66 | |||
| 13 | 1/2 BSP TEE PIECE 816/90001 | 1 | $20.89 | |||
| 14 | Adapter 816/90587 | 1 | $127.58 | |||
| 15 | COUPLING QR MALE 10 -8SAE 45/920050 | 1 | $103.37 | |||
| 16 | ADAPTOR (F/M) 816/90087 | 1 | $54.73 | |||
| 18 | COUPLING QR FEMALE HQ10 - 8SAE 45/920049 | 1 | $160.53 | |||
| 19 | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 20 | ADAPTOR G1/2A-1-1/16UNF (M/M) 1620/2068 | 1 | $8.12 | |||
| 21 | COUPLING QR MALE HQ12 - 12SAE 45/920048 | 1 | $58.34 | |||
| 23 | PLUG 1/4 NPTF G8/21 | 1 | $6.11 | |||
| 24 | SET SCREW M10x40 1315/0410Z | 1 | $2.26 | |||
| 25 | LABEL - HANDHELD TOOLS 817/02441 | 1 | $6.94 | |||
| 26 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 28 | Hose 1/2"BSP X 680 613/80044 | 1 | $65.58 | |||
| 29 | HOSE 1/2BSP 250mm 613/51003 | 1 | $87.36 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-

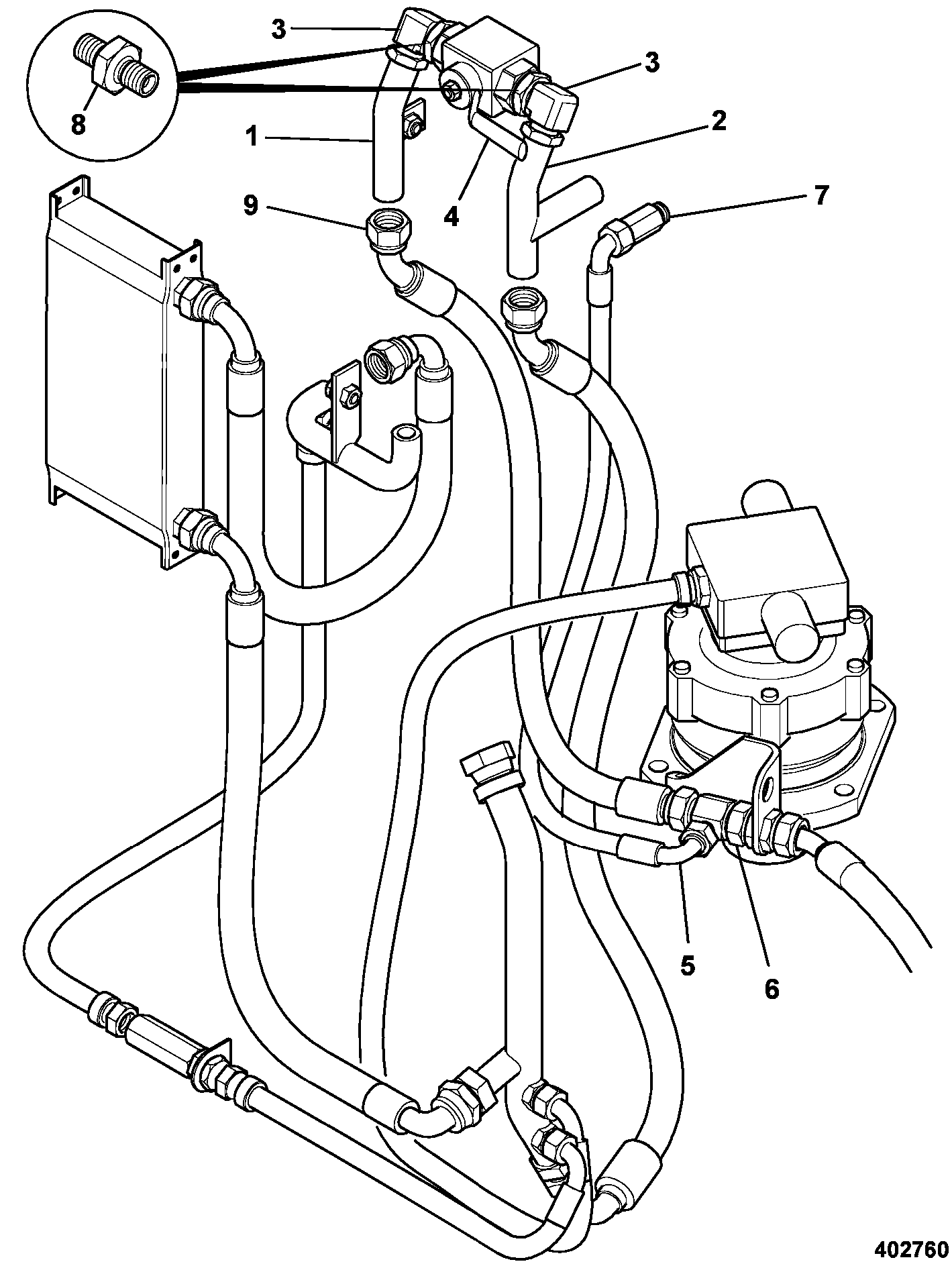

DIAG-E1-8-5-397993 E1-8-5 CIRCUIT AUXILIARY DOUBLE ACTING
View Diagram -

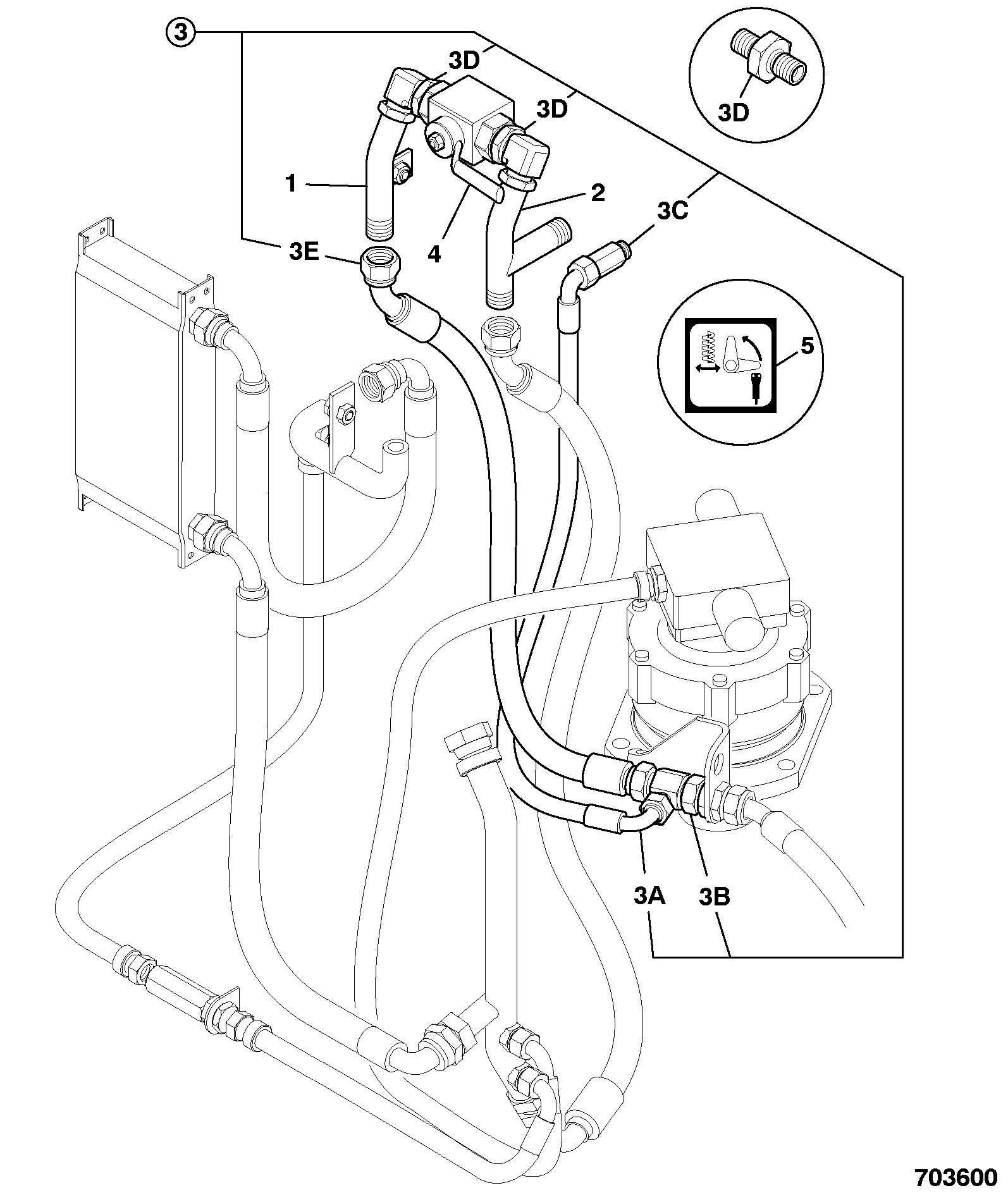

DIAG-E1-10-1-397993 E1-10-1 CONVERSION AUXILIARY SINGLE TO DOUBLE ACTING
View Diagram -

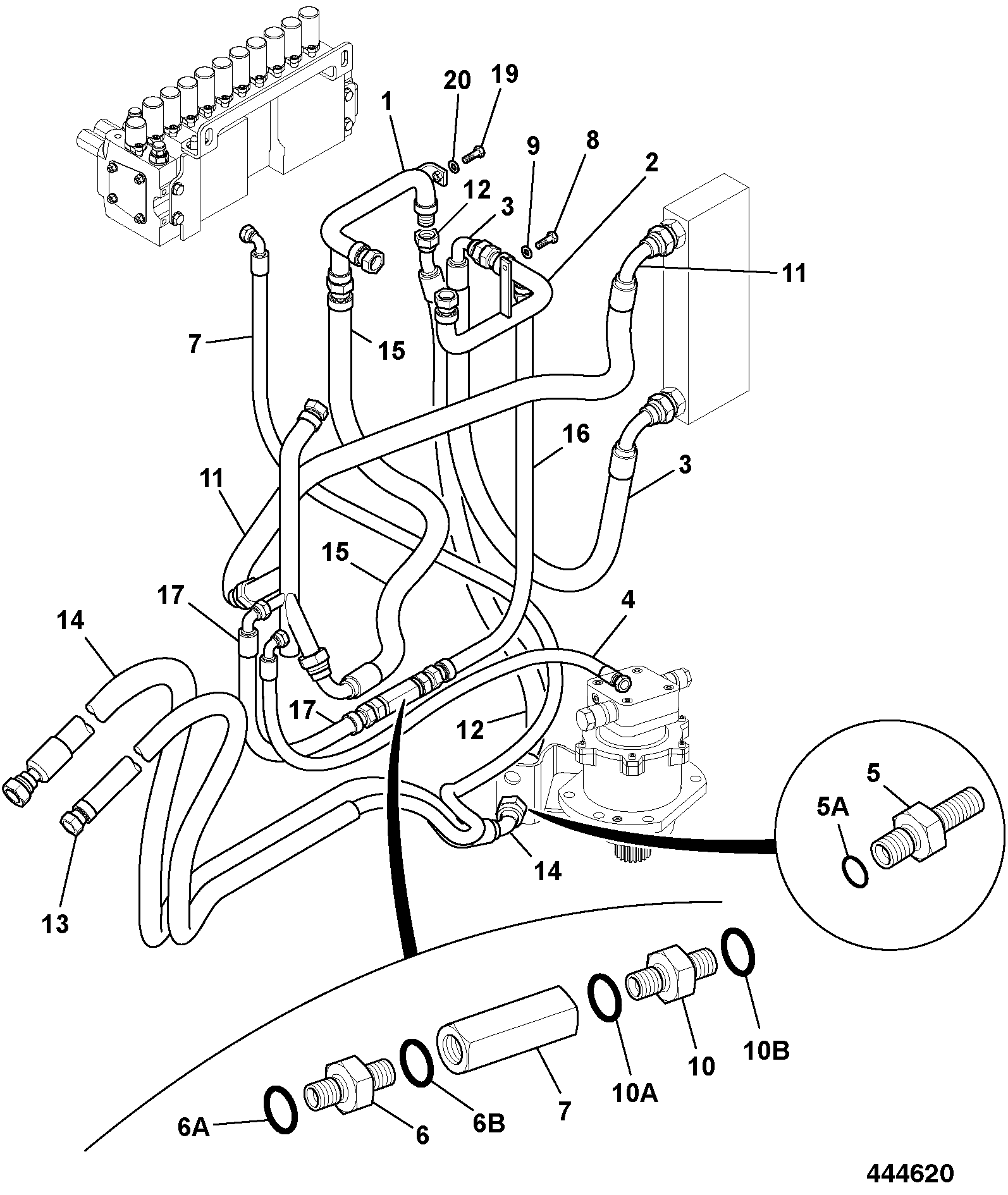

DIAG-E1-8-1-397993 E1-8-1 CIRCUIT AUXILIARY SINGLE ACTING
View Diagram
