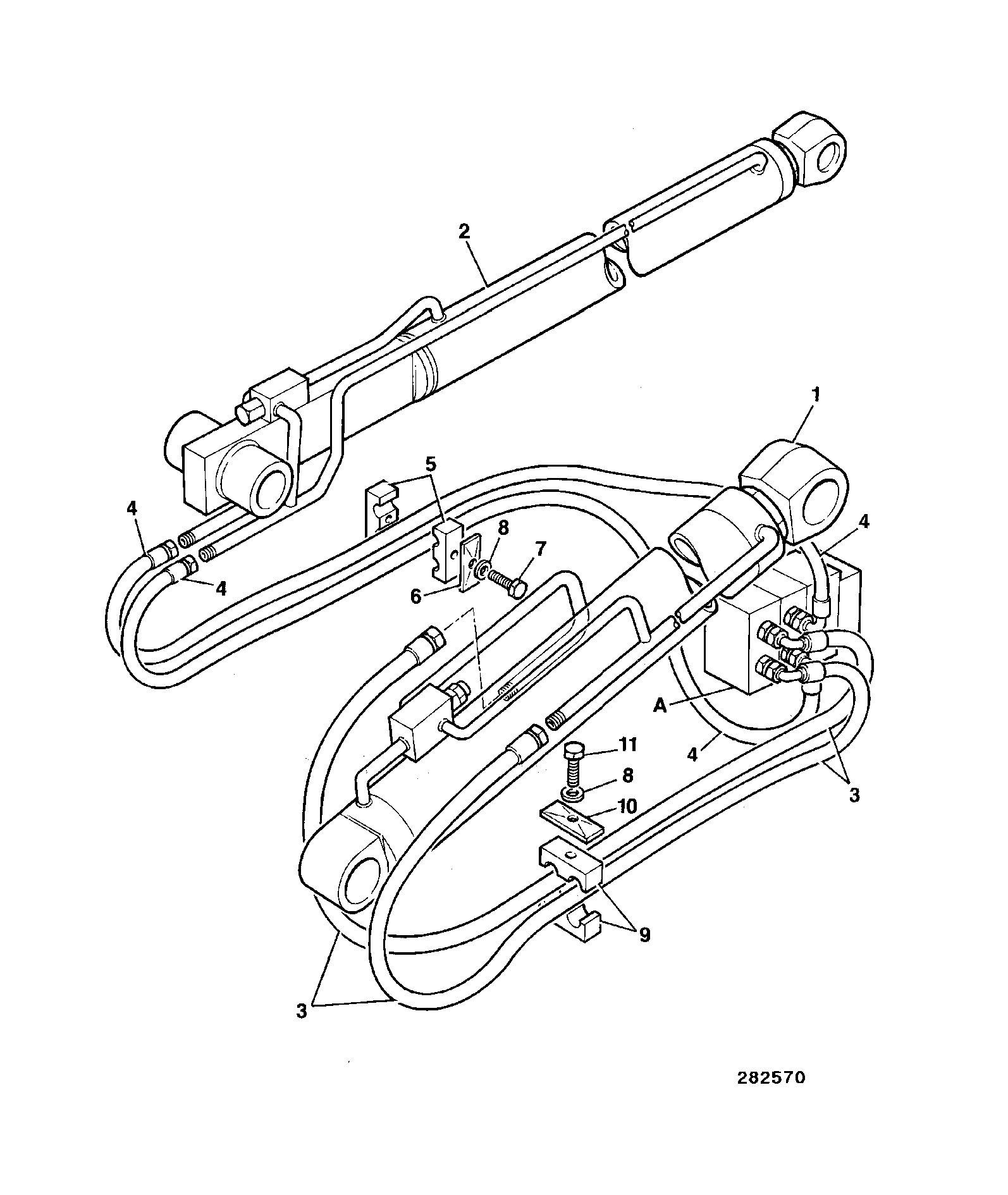

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| SET-SCREW M_6 L-30mm 1315/0208Z | 1 | $0.33 | ||||
| 1 | HOSE 611/44500 | 1 | $76.79 | |||
| 8 | Adapter 1/2 BSP Te 816/90012 | 1 | $10.71 | |||
| 9 | TWO HOSE CLAMP T4F (PAIR) 821/00234 | 1 | $13.26 | |||
| 10 | (W) (Pre-P)-HOSE 1/4BSP 1120mm (3C) 611/29600 | 1 | $52.33 | |||
| 12 | COVER PLATE and bolt 821/00169 821/00169A | 1 | $1.92 | |||
| 14 | SET SCREW M8x35(KANBAN) 1315/0309Z | 1 | $2.57 | |||
| 15 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 16 | HOSE 1/4BSP 575mm 611/05100 | 1 | $115.91 | |||
Showing 1 to 9 of 9 parts
Related Assemblies
-
DIAG-E1-8-1-397145 E1-8-1 CIRCUIT LIFT & EXTENSION
View Diagram -
DIAG-E1-9-5-397145 E1-9-5 CIRCUIT TILT & COMPENSATION 4 AND 5 SPOOL
View Diagram -
DIAG-E1-7-10-397145 E1-7-10 CIRCUIT BOOM,SIDESHIFT 4 SPOOL & 5 SPOOL WITH SIDE TRAY
View Diagram
