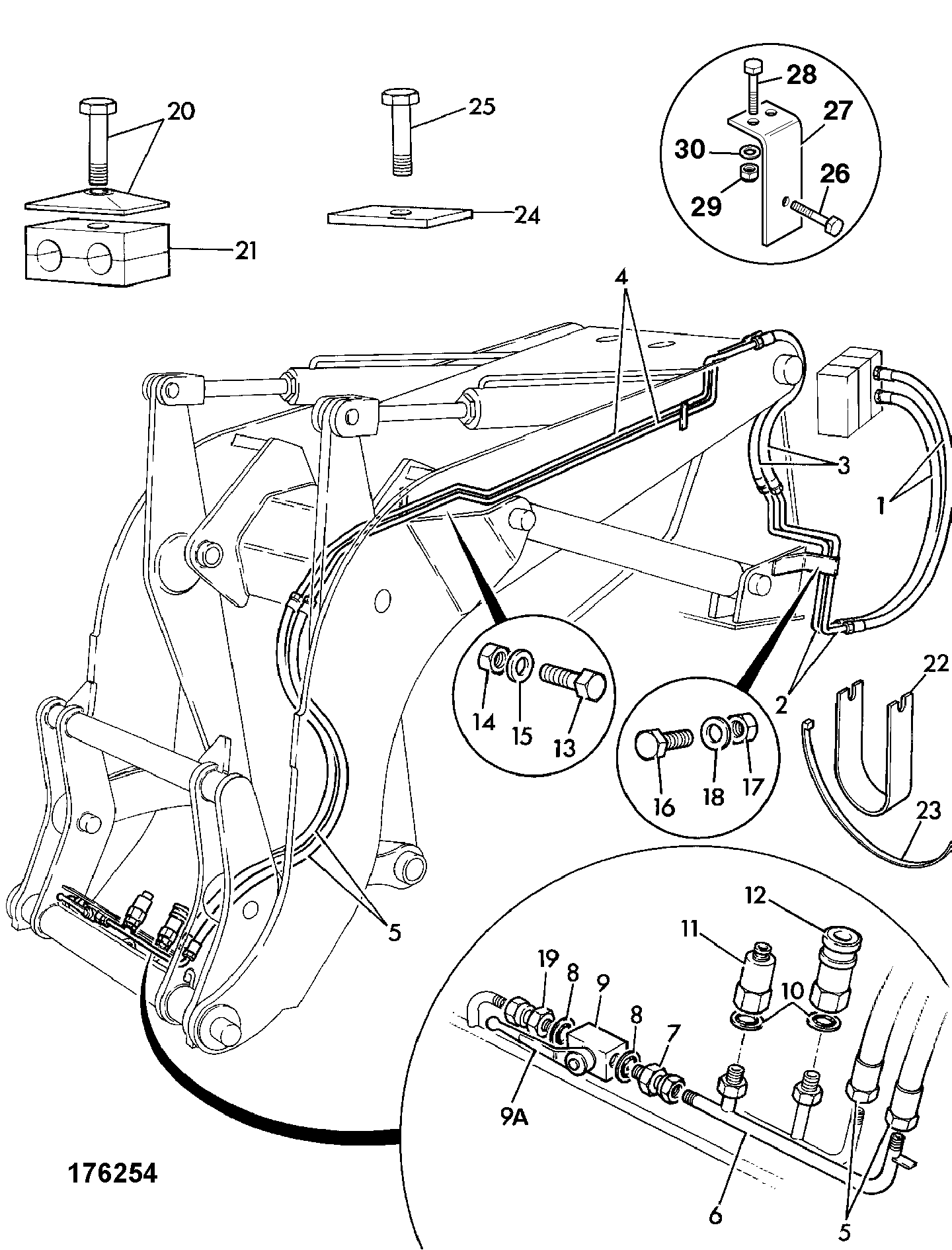

E1-8-3 CIRCUIT DIPPER & BUCKET ISO Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	HOSE 613/07800	1	AVAILABLE TO ORDER	$260.76	Quantity
6	HOSE 613/32500	1	AVAILABLE TO ORDER	$150.25	Quantity
8	HOSE SLEEVED 613/30800	1	AVAILABLE TO ORDER	$150.90	Quantity
10	BULKHEAD ADAPTOR 816/10149	1	AVAILABLE TO ORDER	$65.45	Quantity

Showing 1 to 4 of 4 parts
