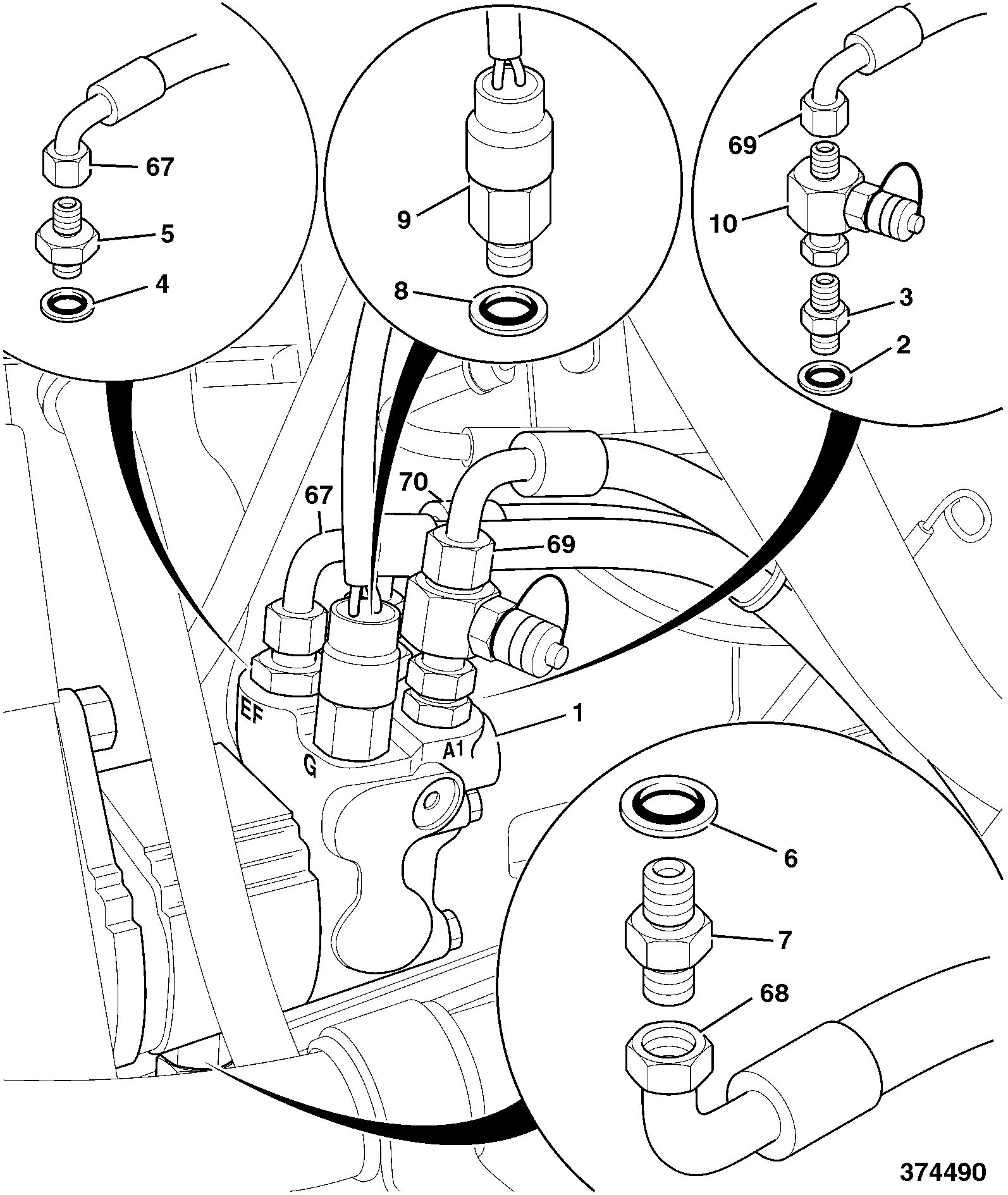

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 2A | O-RING 2401/0506 | 1 | $1.46 | |||
| 3 | ADAPTOR G3/4A X 7/8 SAE 1620/2058 | 1 | $5.52 | |||
| 4 | ADAPTOR 7/8SAE x G1/2A 816/90231 | 1 | $78.76 | |||
| 5 | 'T' ADAPTOR 816/13138 | 1 | $105.01 | |||
| 7 | PRESSURE SW. EMERGENCY STEER 701/74400 332/V4171 | 1 | $73.77 | |||
| 9 | BOLT M8x45 1315/3311Z | 1 | $2.08 | |||
| 10 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 11 | SET-SCREW M12 L-_30mm 1315/0508Z | 1 | $1.75 | |||
| 12 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 13 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 13A | 'O' RING (P564) 2401/0507 | 1 | $1.46 | |||
| 14 | HOSE 1/2BSP 1230mm 613/20800 | 1 | $74.08 | |||
| 15 | HOSE 613/31800 | 1 | $93.75 | |||
| 16 | Hose 635/80033 | 1 | $40.58 | |||
| 17 | 90 DEG ELBOW M/F 816/40016 816/90078 | 1 | $22.91 | |||
| 18 | HOSE 1/2BSP 1100mm 613/05900 | 1 | $182.76 | |||
| 19 | HOSE 1/4" BSP 650mm 611/26500 | 1 | $80.29 | |||
| 34 | ADAPTOR -TEE 816/50005 | 1 | $25.86 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-E1-7-1-404930 E1-7-1 HOSE AND PIPEWORK CHARGE PUMP
View Diagram -

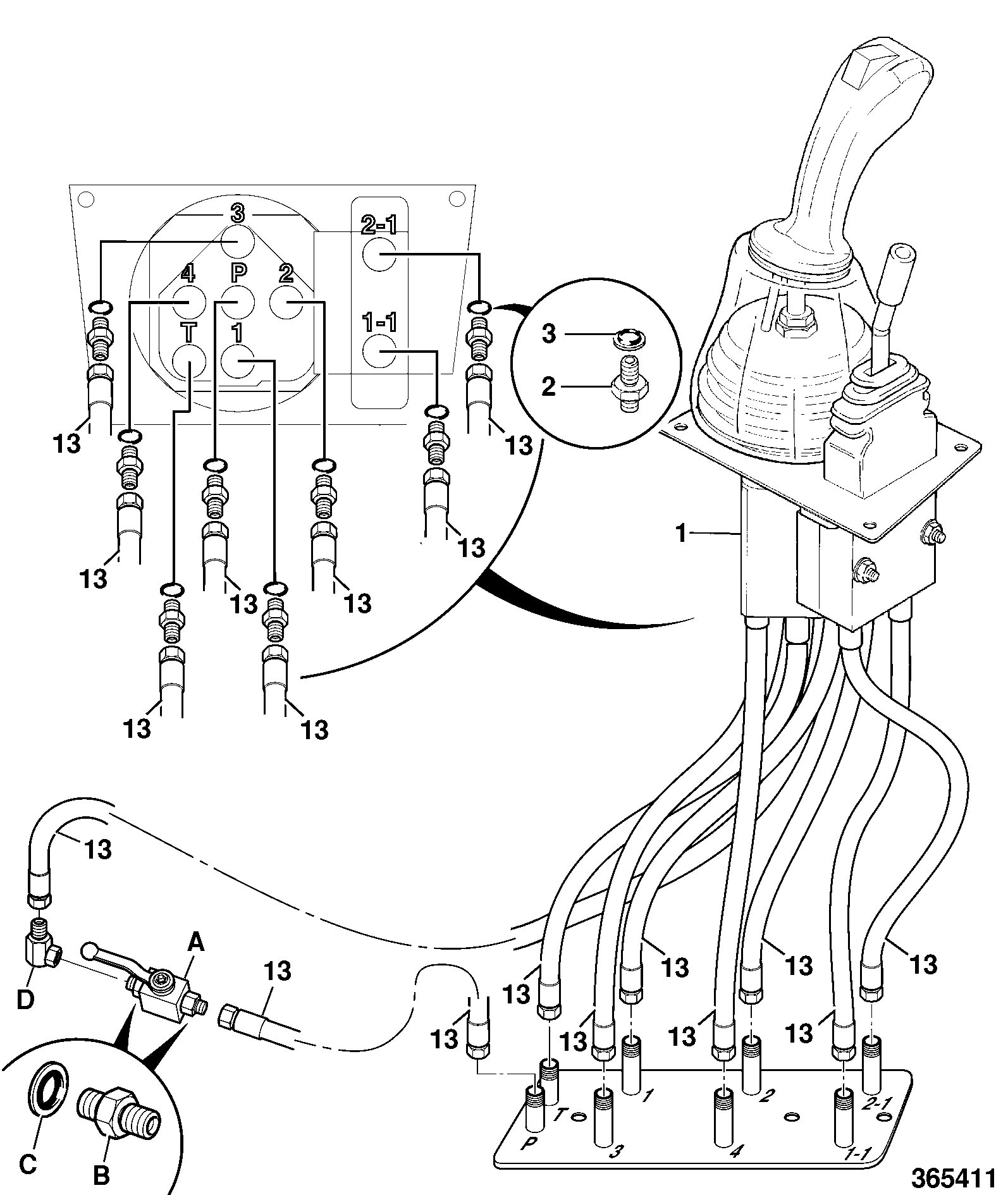

DIAG-E1-9-1-404930 E1-9-1 HOSE AND PIPEWORK SERVO CONTROLLER LOADER
View Diagram -
DIAG-E1-6-1-404930 E1-6-1 HOSE AND PIPEWORK MAIN PUMP
View Diagram
