Scroll to zoom Click a part # to view details

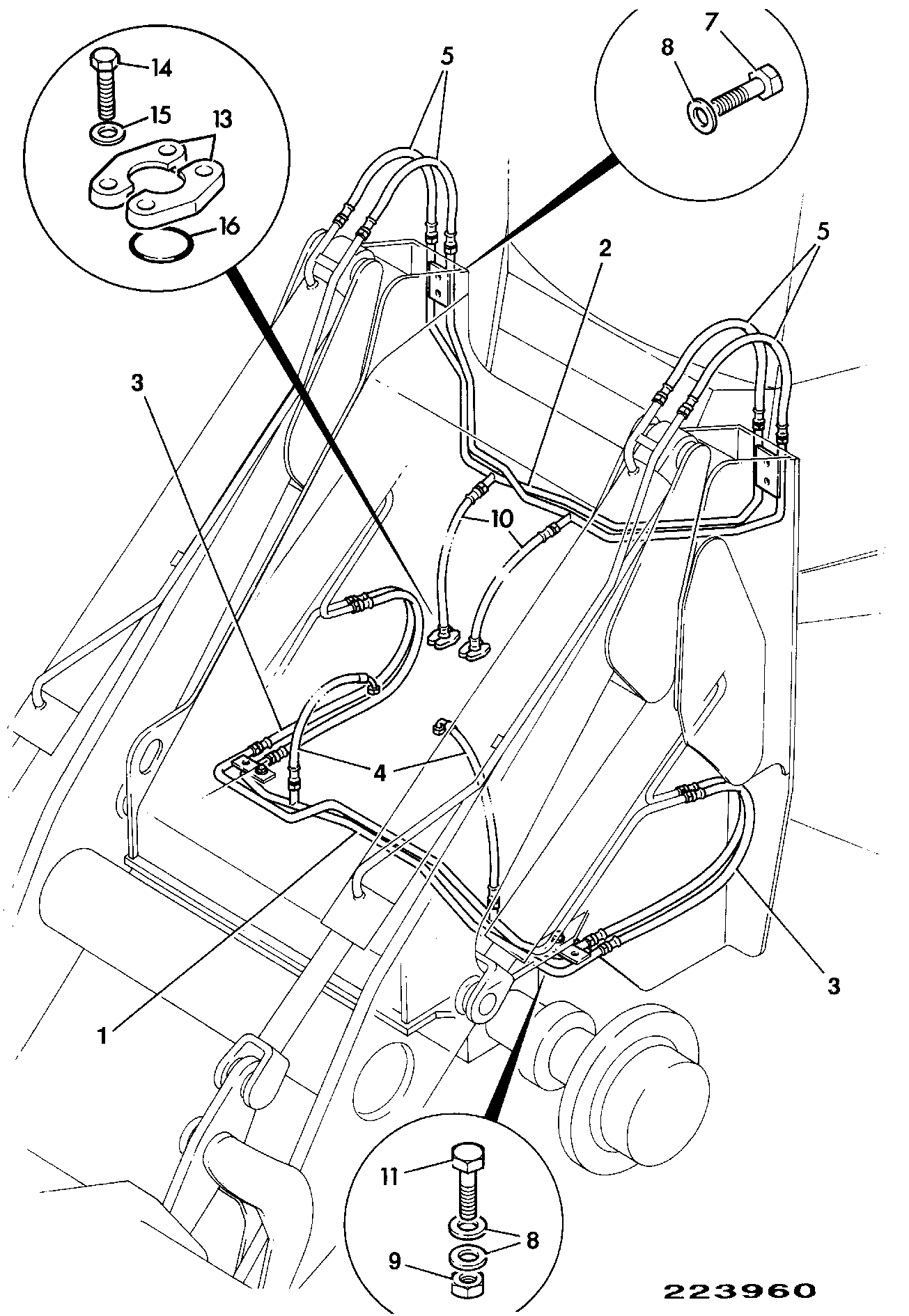

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | W.A. LIFT RAM PIPEWORK 335/06384 | 1 | $1,306.03 | |||
| 2 | PIPE RAM SHOVEL 268/20022 | 1 | $1,506.67 | |||
| 3 | HOSE 3/4BSP 1020mm 615/01200 | 1 | $425.30 | |||
| 3 | HOSE-HYD 615/02900 | 1 | $363.27 | |||
| 4 | HOSE 616/80068 | 1 | $135.48 | |||
| 4 | HOSE 616/80101 | 1 | $163.13 | |||
| 5 | HOSE 3/4BSP 940mm 615/04700 | 1 | $83.70 | |||
| 7 | SET SCREW M10x40 1315/0410Z | 1 | $2.26 | |||
| 9 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 10 | HOSE 616/80074 | 1 | $198.10 | |||
| 11 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
| 13 | FLANGE SPLIT KRJ2682 | 1 | $18.47 | |||
| 14 | CAP SCREW M10x30 1391/3408Z | 1 | $2.86 | |||
| 15 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 16 | O-RING - 32.51 x 3.81 PU9 828/00417 828/00021 | 1 | $25.21 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

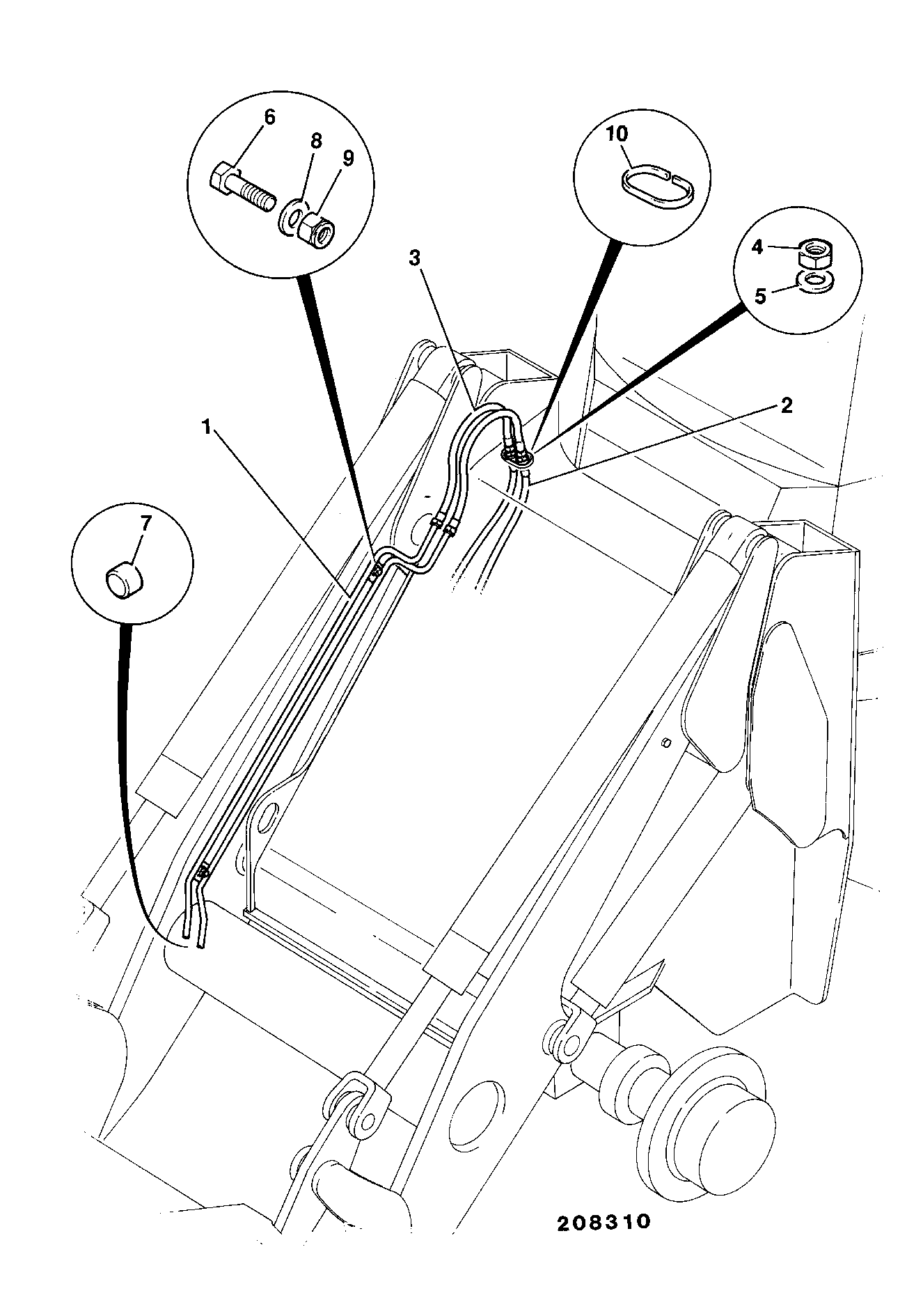

DIAG-E1-4-1-404694 E1-4-1 CIRCUIT LOADER END AUXILIARY
View Diagram -
DIAG-E1-1-1-404694 E1-1-1 CIRCUIT LOADER END
View Diagram -
DIAG-E1-0-70-404694 E1-0-70 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES 4 SPOOL MULTILEVER HI-LIFT
View Diagram
