Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | Pipe WA boom aux.r 335/02790 | 1 | $503.53 | |||
| 3 | COUPLING QR MALE F9 - 1/2BSP 45/910500 | 1 | $78.76 | |||
| 5 | WASHER BONDED 1" BSP 1406/0021 | 1 | $6.00 | |||
| 6 | WASHER 1406/0018 | 1 | $4.09 | |||
| 7 | SET SCREW M10x20 1315/0405Z | 1 | $4.23 | |||
| 8 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 10 | HOSE 1/2BSP 680mm 613/07100 | 1 | $70.59 | |||
| 10 | HOSE 1/2BSP 800mm 613/01200 | 1 | $127.77 | |||
| 10 | HOSE 1/2BSP 850mm 613/07500 | 1 | $48.58 | |||
| 11 | HOSE 615/03500 | 1 | $262.62 | |||
| 11 | HOSE 615/04600 | 1 | $222.52 | |||
| 11 | HOSE 3/4 BSP 680mm 615/04400 | 1 | $109.42 | |||
| 12 | BRACKET AUX FEED 236/18201 | 1 | $22.67 | |||
| 13 | BRACKET AUX RETURN 236/18202 | 1 | $24.26 | |||
| 14 | ADAPTOR 1/2BSP X1/2 BSP BULKHEAD 816/90032 | 1 | $30.50 | |||
| 15 | ADAPTOR 816/10034 | 1 | $20.79 | |||
| 16 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-
DIAG-E1-6-1-397824 E1-6-1 EXCAVATOR END HOSES AND PIPEWORK
View Diagram -

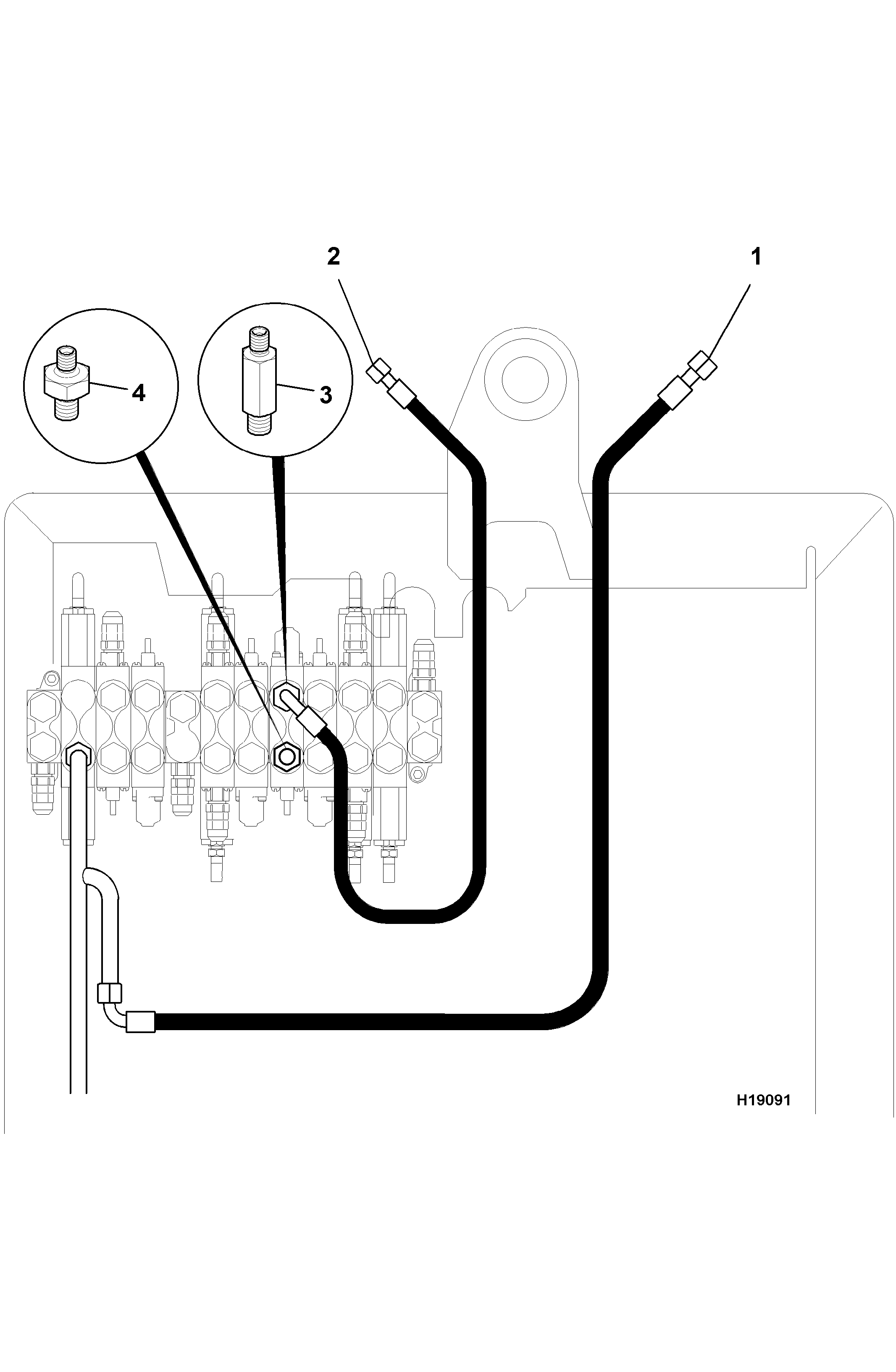

DIAG-E1-8-2-397824 E1-8-2 SINGLE ACTING AUXILIARY CIRCUIT
View Diagram -

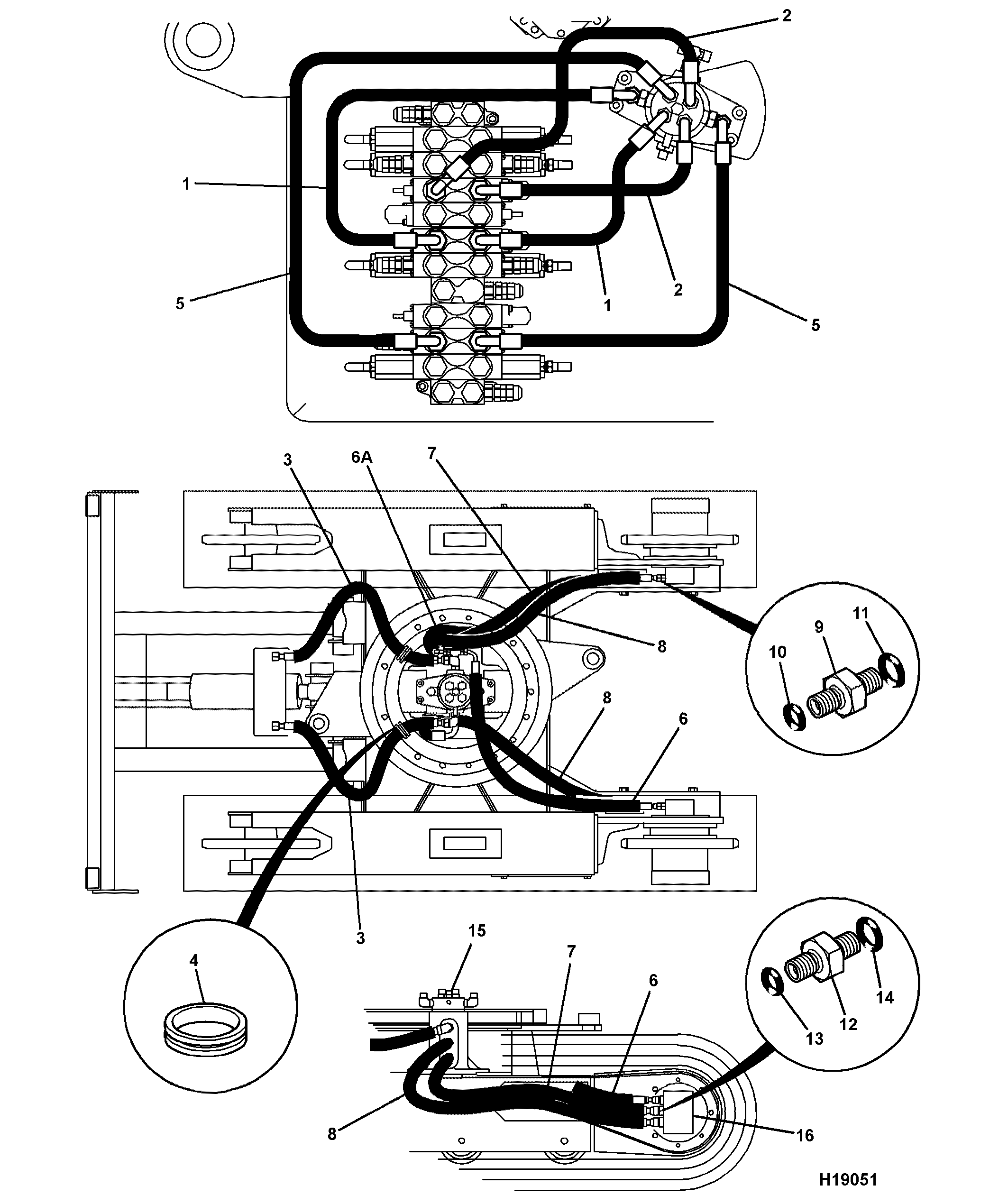

DIAG-E1-5-1-397824 E1-5-1 TRACK AND DOZER CIRCUIT
View Diagram
