Scroll to zoom Click a part # to view details

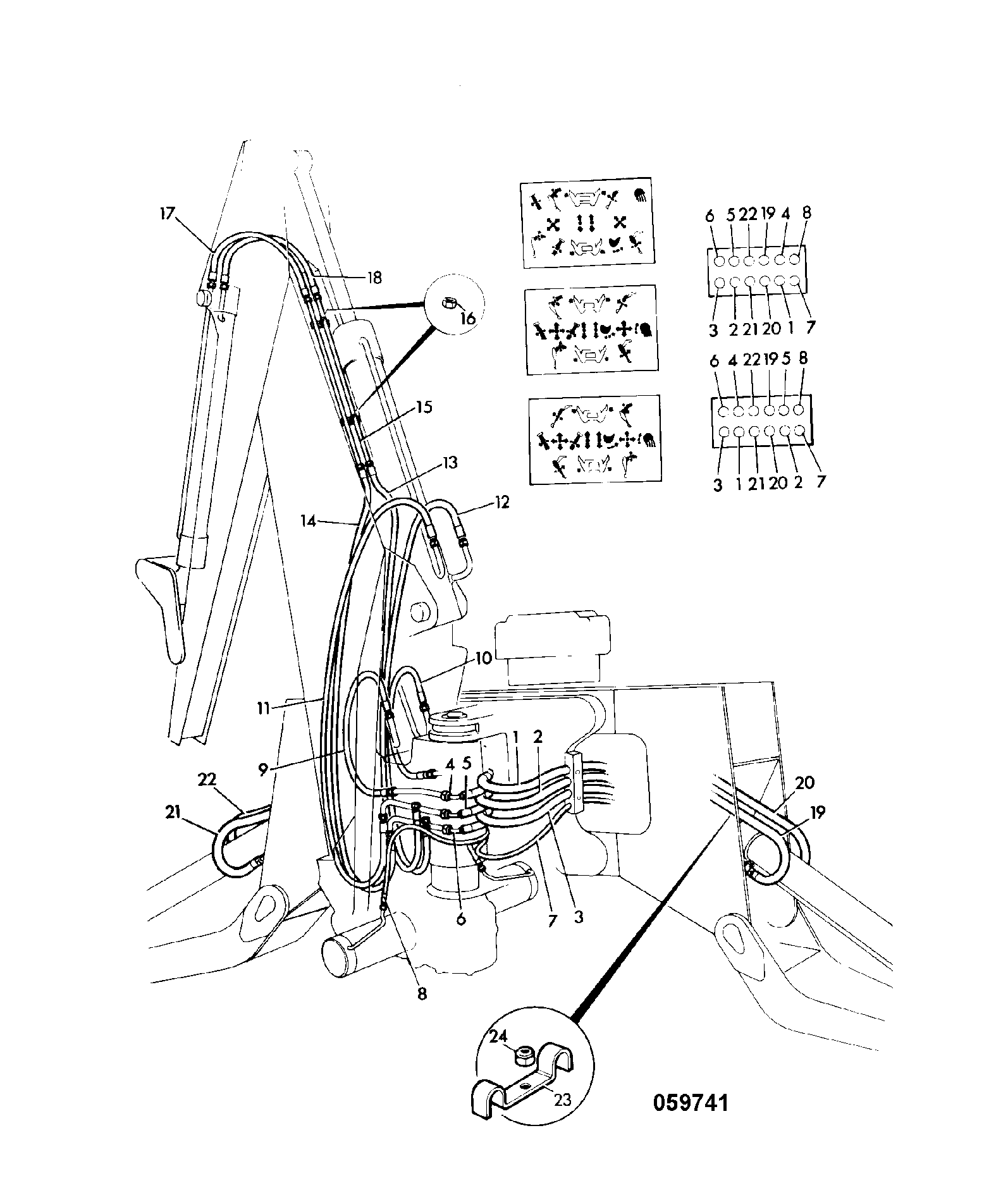

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HOSE 47-1/2 1/2 90/90 613/43900 | 1 | $131.25 | |||
| 1 | HOSE 65-1/2 1/2 90/90 613/43600 | 1 | $254.94 | |||
| 9 | RH PIPE CLUSTER 120/71300 | 1 | $317.36 | |||
| 11 | HOSE 103" 1/2 STR/90 613/21500 | 1 | $294.82 | |||
| 16 | PIPES-WA RH AUX. 120/61700 | 1 | $689.26 | |||
| 17 | PIPES-WA LH AUX. 120/61600 | 1 | $653.39 | |||
| 20 | STUD 822/00035 | 1 | $0.77 | |||
| 23 | HOSE GUIDE 120/64901 | 1 | $45.99 | |||
| 24 | P CLIP 821/00079 | 1 | $15.73 | |||
Showing 1 to 9 of 9 parts
Related Assemblies
-
DIAG-E1-5-5-395174 E1-5-5 CIRCUIT, BACKHOE STANDARD DIPPER CENTREMOUNT/7
View Diagram -
DIAG-E2-1-1-395174 E2-1-1 PUMP, MAIN HYDRAULIC SINGLE, STANDARD
View Diagram -
DIAG-E1-3-2-395174 E1-3-2 CIRCUIT, AUXILIARY LOADER ARM SELF LEVEL
View Diagram
