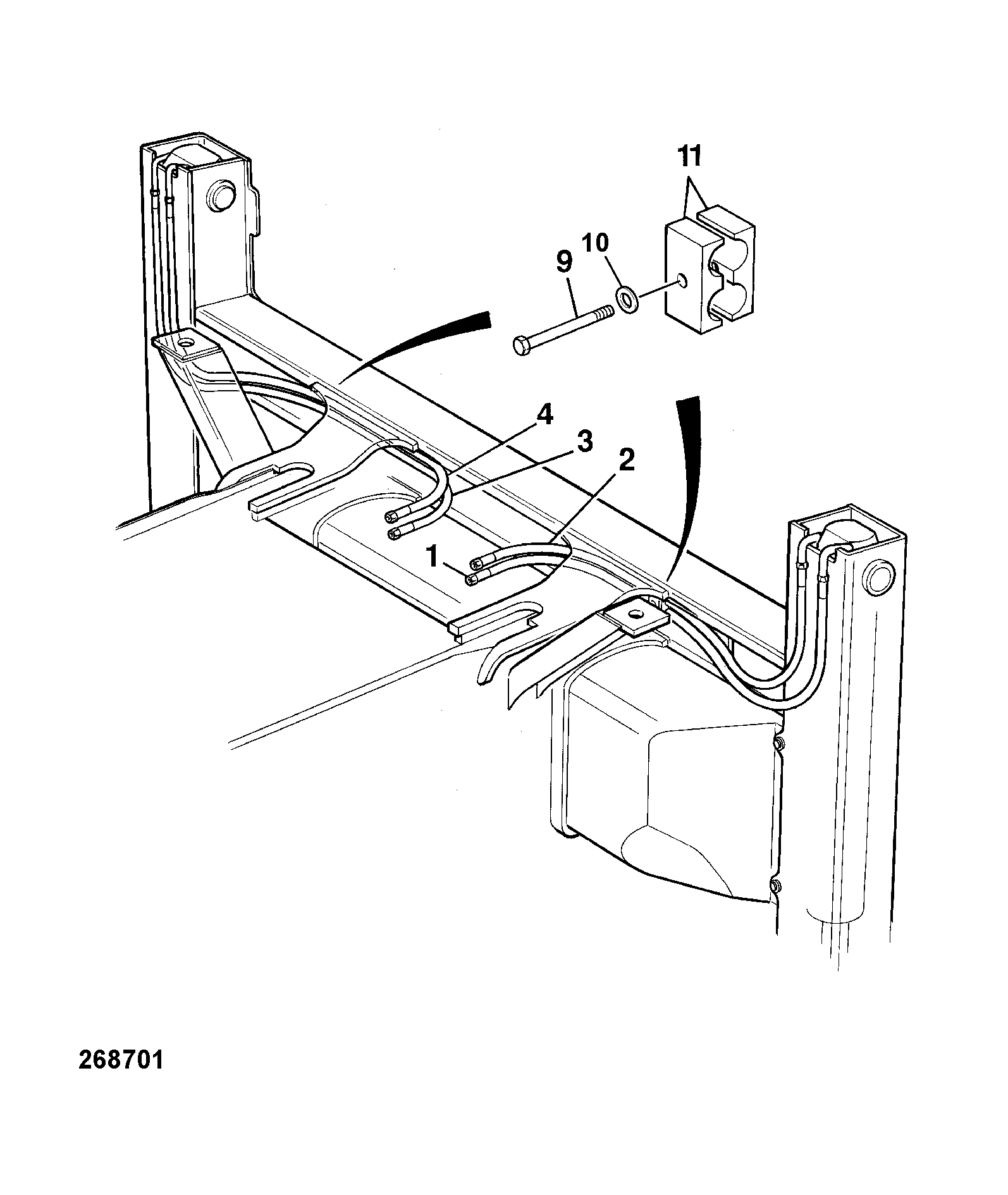

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA L/H SLEW PIPE 335/00771 | 1 | $275.60 | |||
| 2 | WA R/H SLEW PIPE 335/00772 | 1 | $275.60 | |||
| 3 | M/C PROBE G3/8 23AF 123 (India Slew) 559/90056 | 1 | $224.22 | |||
| 4 | PIPE SUPPORT 559/90035 821/10425 | 1 | $2.24 | |||
| 5 | WASHER BONDED 3/8" BSP(KANBAN) 1406/0015 | 1 | $1.52 | |||
| 6 | CLIP - WORMDRIVE 120/140mm(KANBAN) 2201/0017 | 1 | $11.32 | |||
| 7 | VALVE anti-reaction 928/60330 | 1 | $1,277.68 | |||
| 8 | CAP SCREW M8x70 1391/3316 | 1 | $4.90 | |||
| 9 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 10 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 11 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 12 | ADAPTOR TEE POSITIONAL 332/C6843 | 1 | $15.23 | |||
| 12A | O-RING 2401/0505 | 1 | $2.54 | |||
| 13 | HOSE 1/4BSP 900mm 332/C4600 | 1 | $261.32 | |||
| 14 | HOSE 1/4BSP 900mm 332/C8069 | 1 | $347.89 | |||
| 51 | HOSE 3/8BSP 700mm 612/26600 | 1 | $52.70 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-
DIAG-E1-6-41-395145-11289935 E1-6-41 CIRCUIT, SLEW/SWING CENTREMOUNT
View Diagram -
DIAG-E1-6-20-395145 E1-6-20 CIRCUIT, SLEW/SWING CENTREMOUNT
View Diagram -
DIAG-E1-7-1-395145 E1-7-1 CIRCUIT, STABILISER SIDESHIFT,7'8"FRAME
View Diagram
