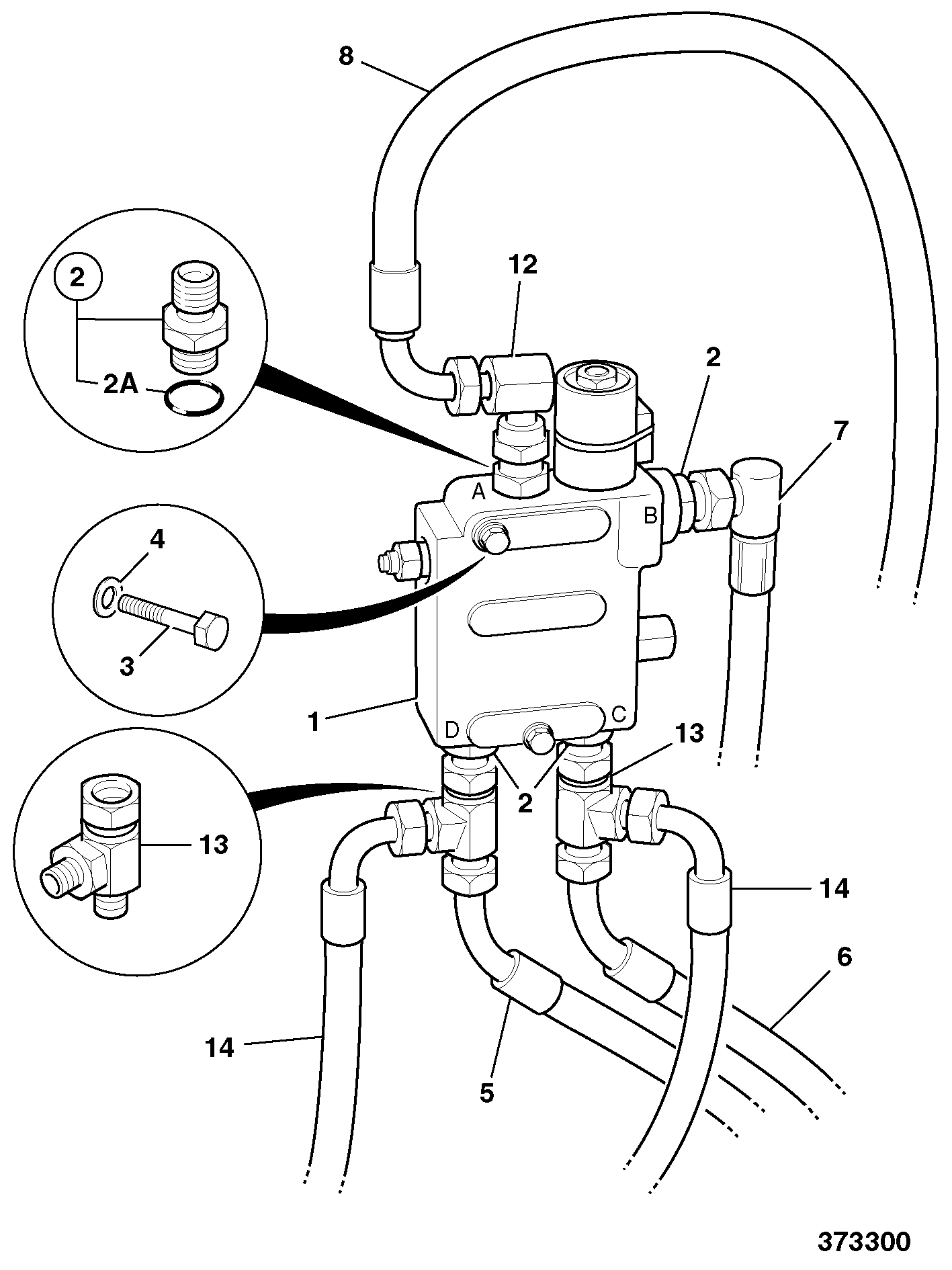

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Pipe 335/04827 | 1 | $854.44 | ||||
| 1 | PIPE HI-FLOW ON ARM WA 335/04830 | 1 | $1,628.79 | |||
| 3 | HOSE 3/8BSP 2500mm 612/33900 | 1 | $77.74 | |||
| 8 | P-CLIP 821/00412 | 1 | $6.79 | |||
| 9 | HOSE 3/4BSP 2120mm 615/45300 | 1 | $185.77 | |||
| 12 | COUPLING Q/R FEMALE F17 - 1"BSP 45/910100 | 1 | $343.03 | |||
| 12 | FEMALE Q/R COUPLING 45/920068 | 1 | $388.26 | |||
| 13 | COUPLING QR MALE F17 - 1"BSP 45/910200 | 1 | $234.46 | |||
| 13 | MALE Q/R COUPLING 45/920069 | 1 | $223.27 | |||
| 14 | WASHER BONDED 1"BSP 1406/0026 | 1 | $11.54 | |||
| 15 | Adapter G1A x G3/4 816/90178 | 1 | $47.88 | |||
| 15 | ADAPTOR 816/20013 | 1 | $134.95 | |||
| 22 | HOSE.3/4BSP 350MM lg 635/11500 | 1 | $277.85 | |||
| 25 | HOSE HIGH PRESS 617/80019 | 1 | $639.44 | |||
| 30 | HOSE.3/8BSP 275mm LG 612/06400 | 1 | $35.50 | |||
| 31 | 33' ADAPTOR 816/50033 | 1 | $58.69 | |||
| 31 | ADAPTOR 3/8BSPX3/8BSPX3/8 (P564) 816/90040 | 1 | $119.12 | |||
| 32 | HOSE 3/4BSP 430mm 615/20200 | 1 | $316.21 | |||
| 33 | 9DAPTOR TEE 816/00344 816/90043 | 1 | $24.83 | |||
| 34 | HOSE 1"BSP 1650mm 637/33300 | 1 | $260.92 | |||
| 35 | HOSE 1BSP 1650mm 617/23600 | 1 | $654.23 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
E1-5-1 HOSE AND PIPEWORK SERVO CONTROLLER TRANSMISSION (LEFT HAND)
View Diagram -
DIAG-E1-7-1-395424 E1-7-1 HOSE AND PIPEWORK SELF LEVEL VALVE PARALLEL LIFT
View Diagram -
E1-4-1 HOSE AND PIPEWORK SERVO CONTROLLER LOADER (RIGHT HAND)
View Diagram
