Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BACK NUT 3/8 BSP (3CX COMPACT) 1356/0203Z | 1 | $4.41 | ||||
| 1 | WA STEER PIPES AWS 335/04509 | 1 | $898.53 | |||
| 2 | SPACER 123/06256 | 1 | $0.00 | |||
| 5 | SET SCREW M10x40 1315/0410Z | 1 | $2.26 | |||
| 6 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 8 | HOSE 1/4BSP 1160mm 611/26200 | 1 | $262.00 | |||
| 9 | HOSE 3/8BSP 900mm 612/00700 | 1 | $296.95 | |||
| 10 | HOSE 3/8BSP 1120mm 612/80173 | 1 | $61.45 | |||
| 11 | HOSE 3/8BSP 425mm 612/33000 | 1 | $69.17 | |||
| 13 | 3/8 BSP HOSE HIGH PRESS 612/80051 | 1 | $55.29 | |||
| 13 | HOSE 3/8BSP 1750mm 612/20900 | 1 | $172.54 | |||
| 15 | (P) (W) HOSE 3/8BSP 1120mm 612/26400 | 1 | $75.05 | |||
| 16 | (W) (Pre-P)-HOSE 3/8BSPx1010mm HI-PRE 612/28800 | 1 | $55.17 | |||
| 17 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 18 | (S) CAP - 3/4"BSP 816/00196 | 1 | $36.35 | |||
| 20 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
| 21 | HOSE 612/72011 | 1 | $167.78 | |||
| 21 | HOSE 3/8BSP 1740mm 629/80129 | 1 | $111.22 | |||
| 22 | (W) (P) ADAPTOR 3/4 SAE x G3/8 A 816/17056 816/90488 | 1 | $5.24 | |||
| 22 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 22 | ELBOW ADAPTOR (P392) 816/90542 | 1 | $115.68 | |||
| 24 | HOSE 3/8BSP 700mm 612/26600 | 1 | $52.70 | |||
| 25 | (W) (P) ADAPTOR BULKHEAD (M/M) 816/10023 816/90057 | 1 | $8.37 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-

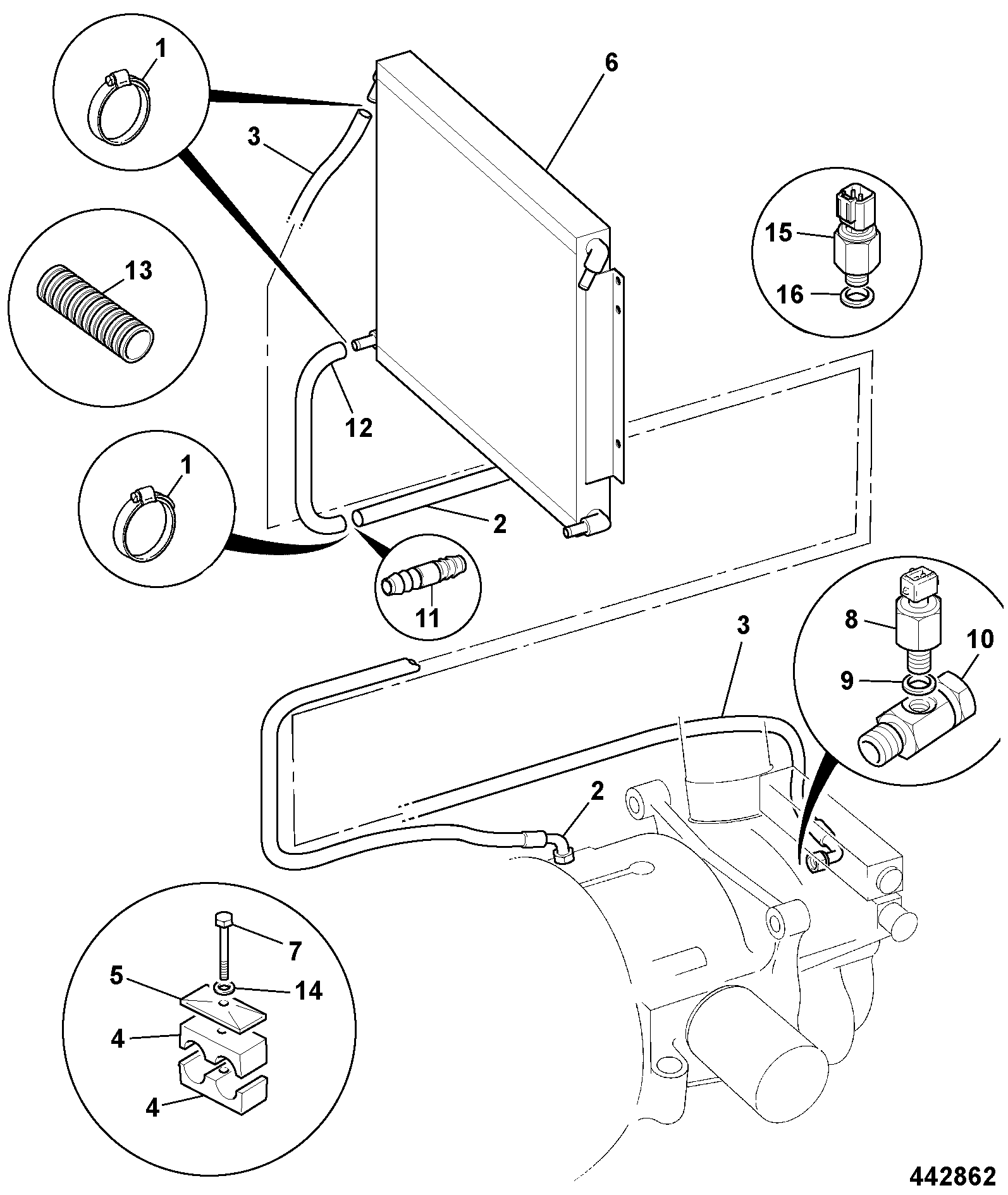

DIAG-E1-4-1-394834-10841243 E1-4-1 CIRCUIT, COOLER TRANSMISSION OIL 4WS
View Diagram -

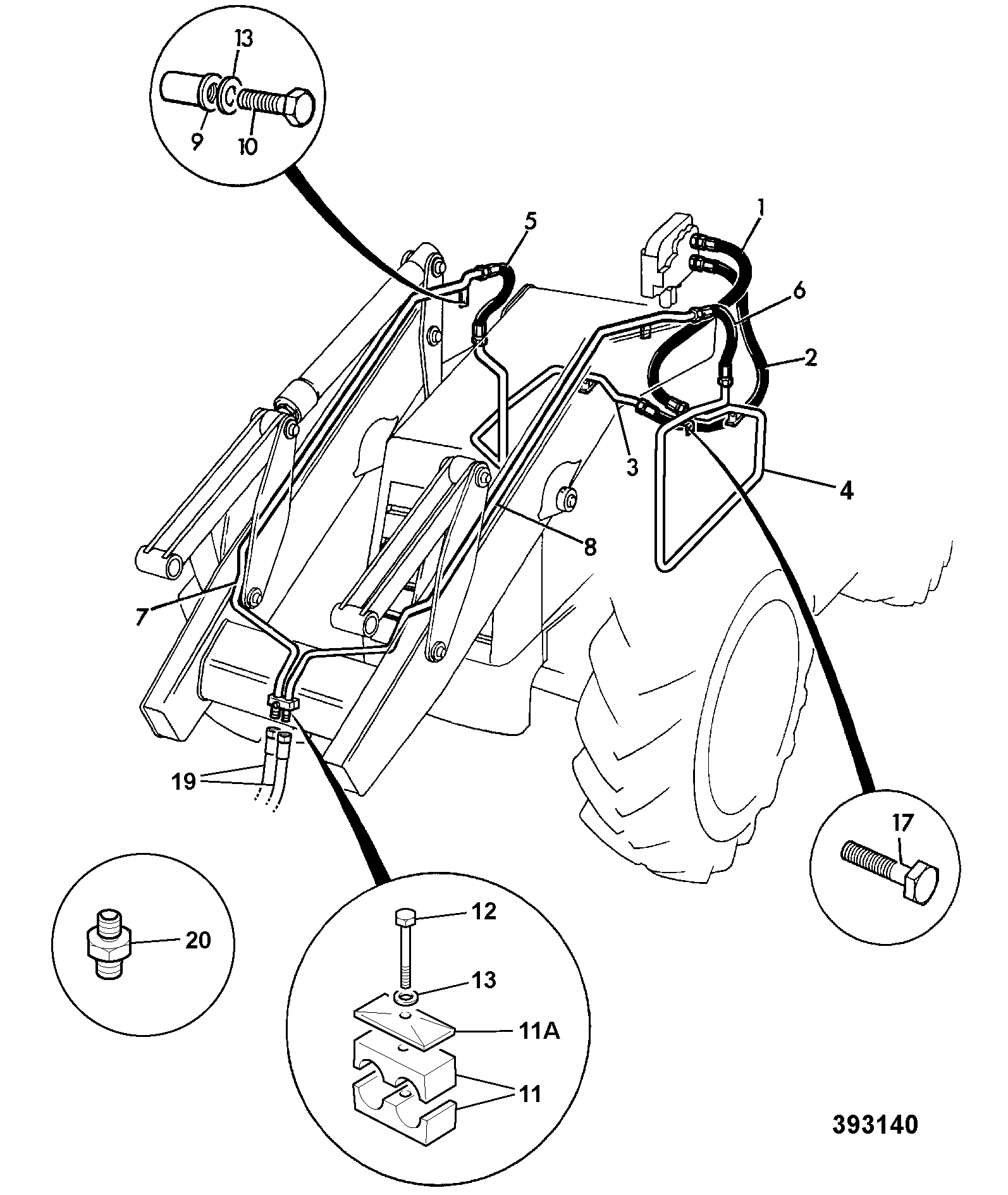

DIAG-E1-3-30-394834-10841238 E1-3-30 CIRCUIT, AUXILIARY LOADER AWS (5/8" BSP PIPWORK)
View Diagram -
DIAG-E1-3-20-394834 E1-3-20 CIRCUIT, AUXILIARY LOADER AWS (3/8" BSP PIPEWORK)
View Diagram
