Scroll to zoom Click a part # to view details

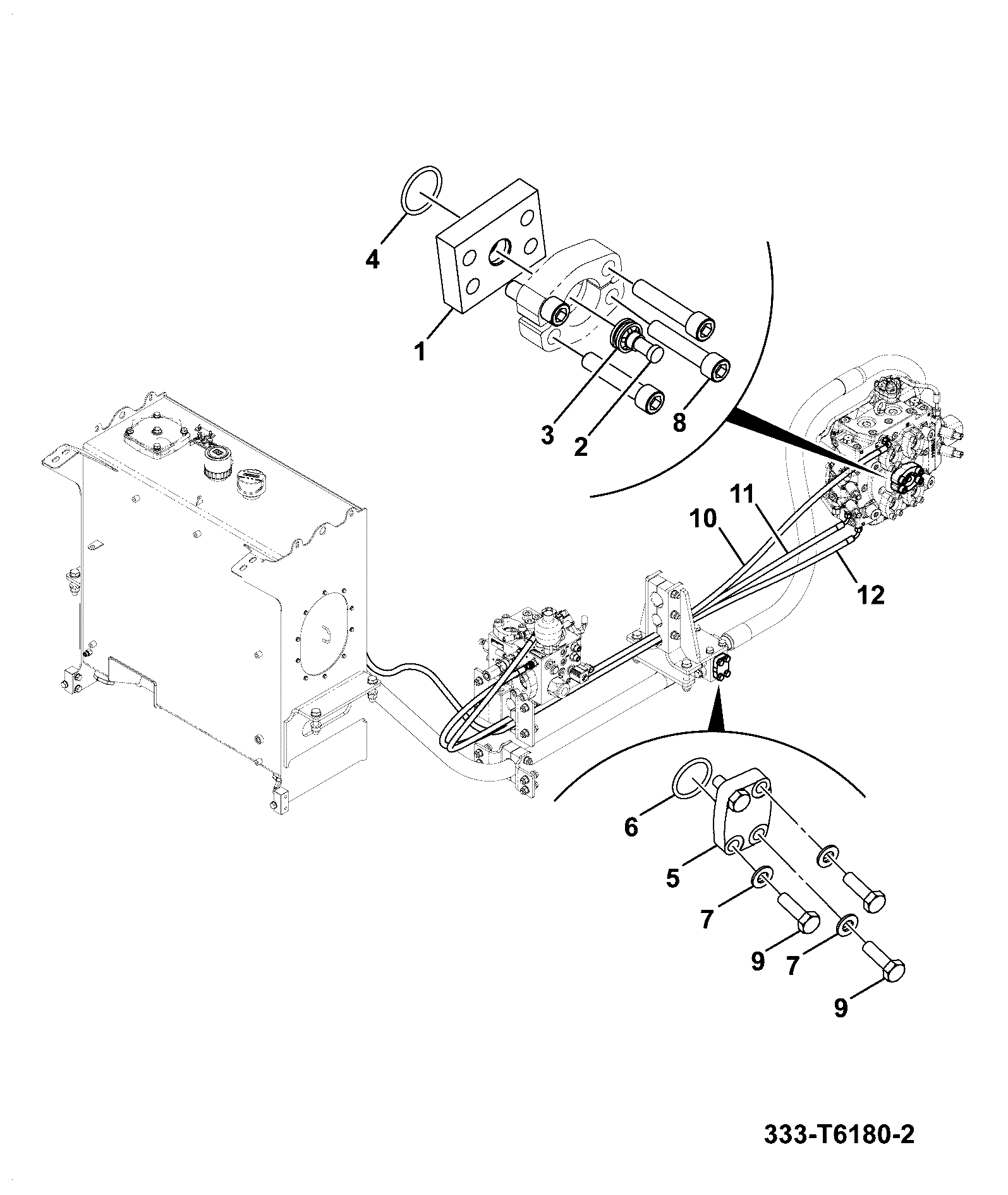

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | GA STEER RAM 466/476 90X50 332/V5402 | 1 | $2,833.33 | |||
| 2 | SECONDARY SEAL 70 DIA 332/P3957 | 1 | $64.57 | |||
| 3 | SPACER - STEER RAM 332/T6802 | 1 | $42.43 | |||
| 4 | SPACER. 332/S8893 | 1 | $9.04 | |||
| 5 | WASHER LARGE 1412/0007D | 1 | $5.07 | |||
| 6 | HEX-SCREW M16 L-_45mm LG 1315/0711D | 1 | $7.72 | |||
| 7 | PARKER -12 TRAP SEAL 332/W7495 | 1 | $1.02 | |||
| 8 | WA STEER PIN 50 DIA 333/P6390 | 1 | $358.57 | |||
| 9 | P CLIP 821/00498 | 1 | $30.03 | |||
| 10 | GREASE PIPE ADPT. 200/04604 | 1 | $14.75 | |||
| 13 | ADA. G1/8 BSP / PT1/8 ELB 816/13166 | 1 | $34.39 | |||
| 15 | HOSE - 03 BSP LP 2150 mm B 332/L3982 | 1 | $47.23 | |||
| 16 | HOSE - 03 BSP LP 1250 mm B 332/L3975 | 1 | $38.21 | |||
| 17 | TAPTITE SCREW M8x16 332/W0175 | 1 | $1.67 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-
DIAG-E1-4-1-404996 E1-4-1 HOSE AND PIPEWORK LOADER VALVE 2 SPOOL
View Diagram -

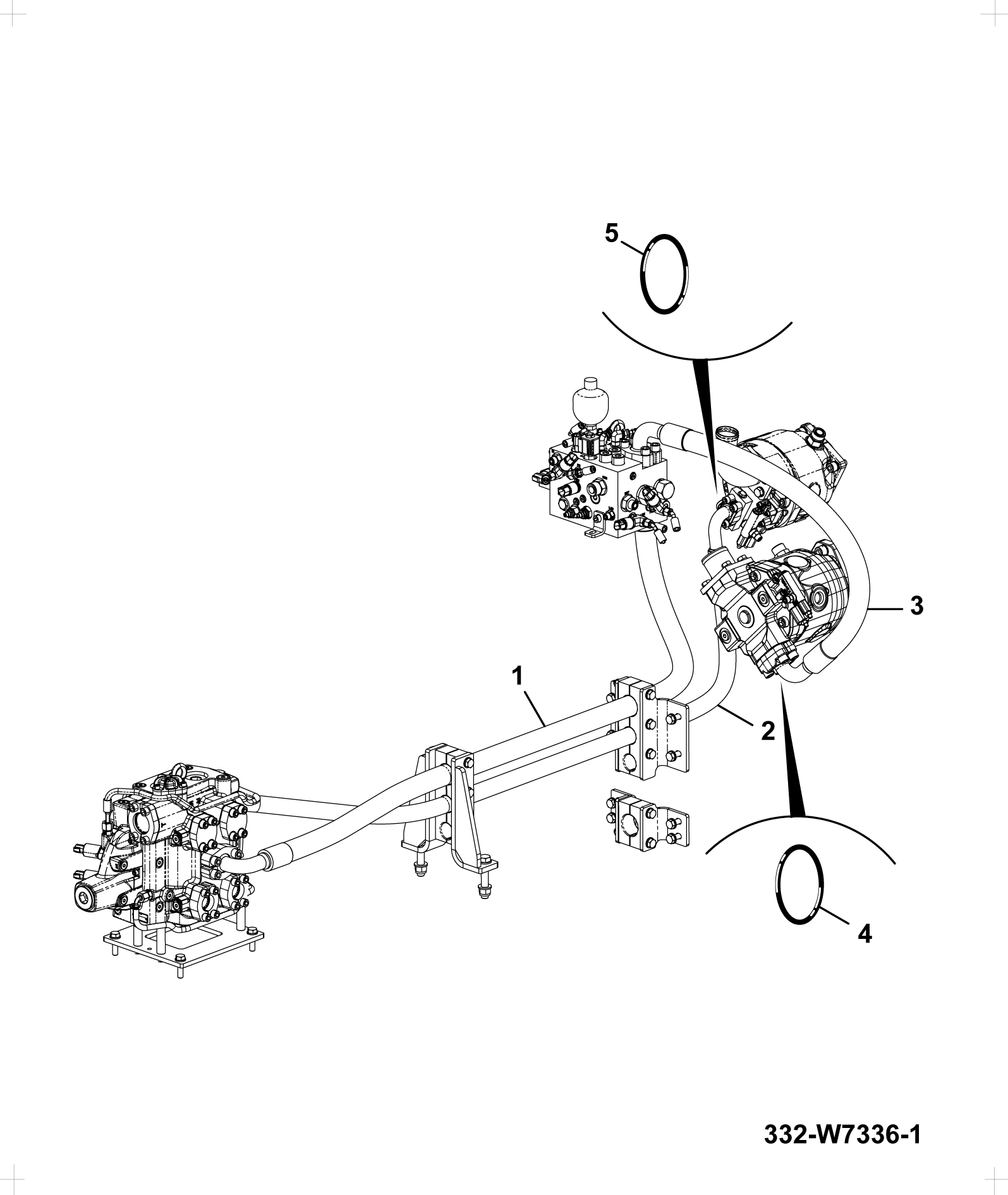

DIAG-E1-7-1-404996 E1-7-1 HOSE AND PIPEWORK MAIN FEED
View Diagram -
DIAG-E1-3-1-404996 E1-3-1 HOSES LOADER END
View Diagram
