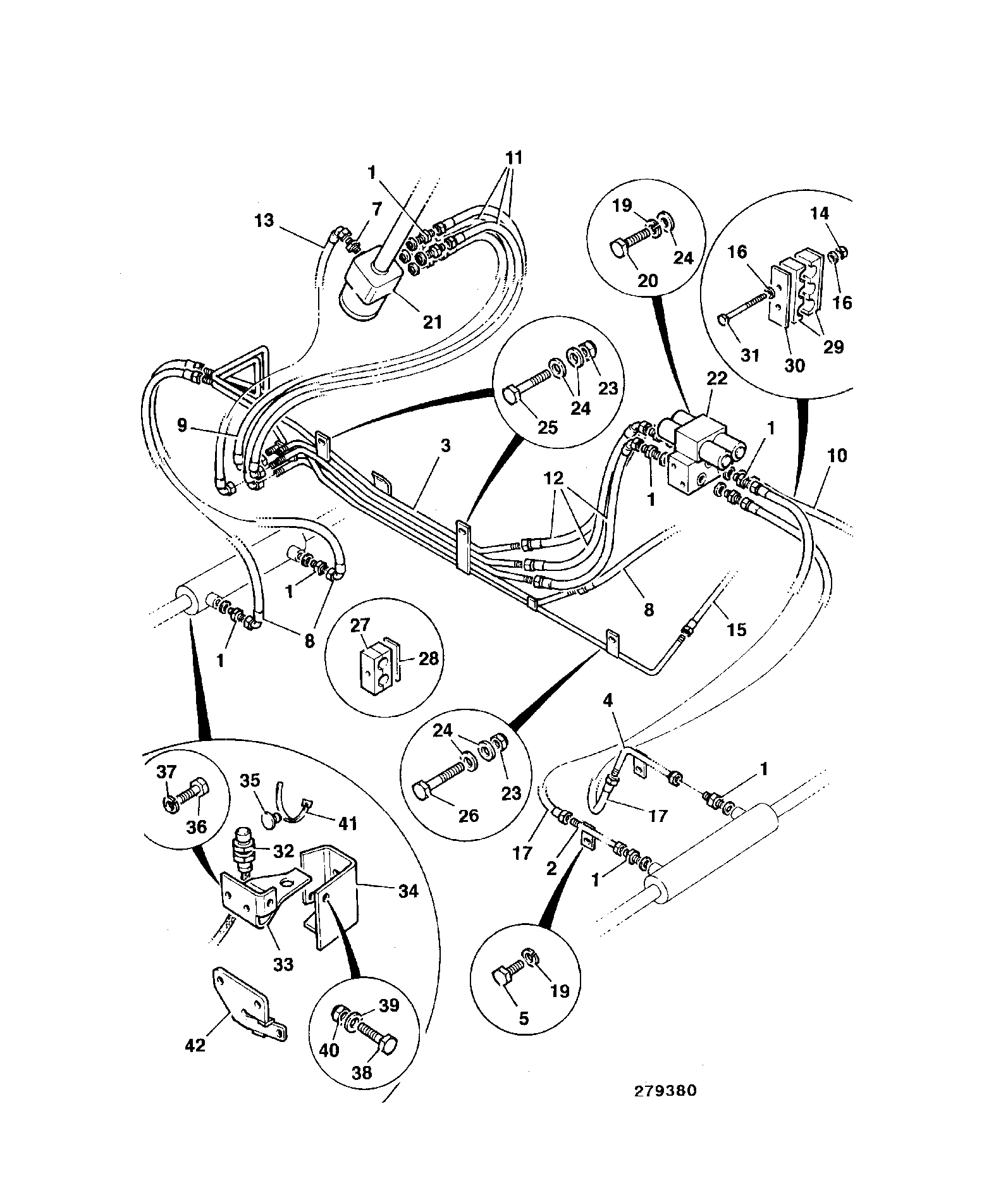

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | COUPLING QR MALE 3/8BSP 45/910700 | 1 | $60.31 | |||
| 2 | FEMALE Q/R COUPLING 45/916200 | 1 | $183.76 | |||
| 3 | BOLT M8x80(KANBAN) 1315/3318Z | 1 | $2.44 | |||
| 4 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 5 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 6 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 7 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 8 | CLAMP (1EA = 2 HALF) 821/00285 | 1 | $34.86 | |||
| 9 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 10 | HOSE - 08 BSP HP 6230mm B 629/80119 333/D8202 | 1 | $516.56 | |||
| 11 | HOSE -08 BSP HP 1510mm B 613/28200 336/F4175 | 1 | $45.86 | |||
| 12 | HOSE 613/21100 | 1 | $98.83 | |||
| 13 | WASHER BONDED 3/8" BSP(KANBAN) 1406/0015 | 1 | $1.52 | |||
| 14 | PIPE LH AUX W.A. 161/00780 | 1 | $722.96 | |||
| 15 | PIPE AUX R.H. WA. 161/00781 | 1 | $653.65 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-
DIAG-E1-4-1-401764 E1-4-1 CIRCUIT STEER HYDRAULICS
View Diagram -
DIAG-E1-2-1-401764 E1-2-1 CIRCUIT,LIFT END
View Diagram -
DIAG-E1-7-1-401764 E1-7-1 CIRCUIT,TOW HITCH MECHANICAL
View Diagram
