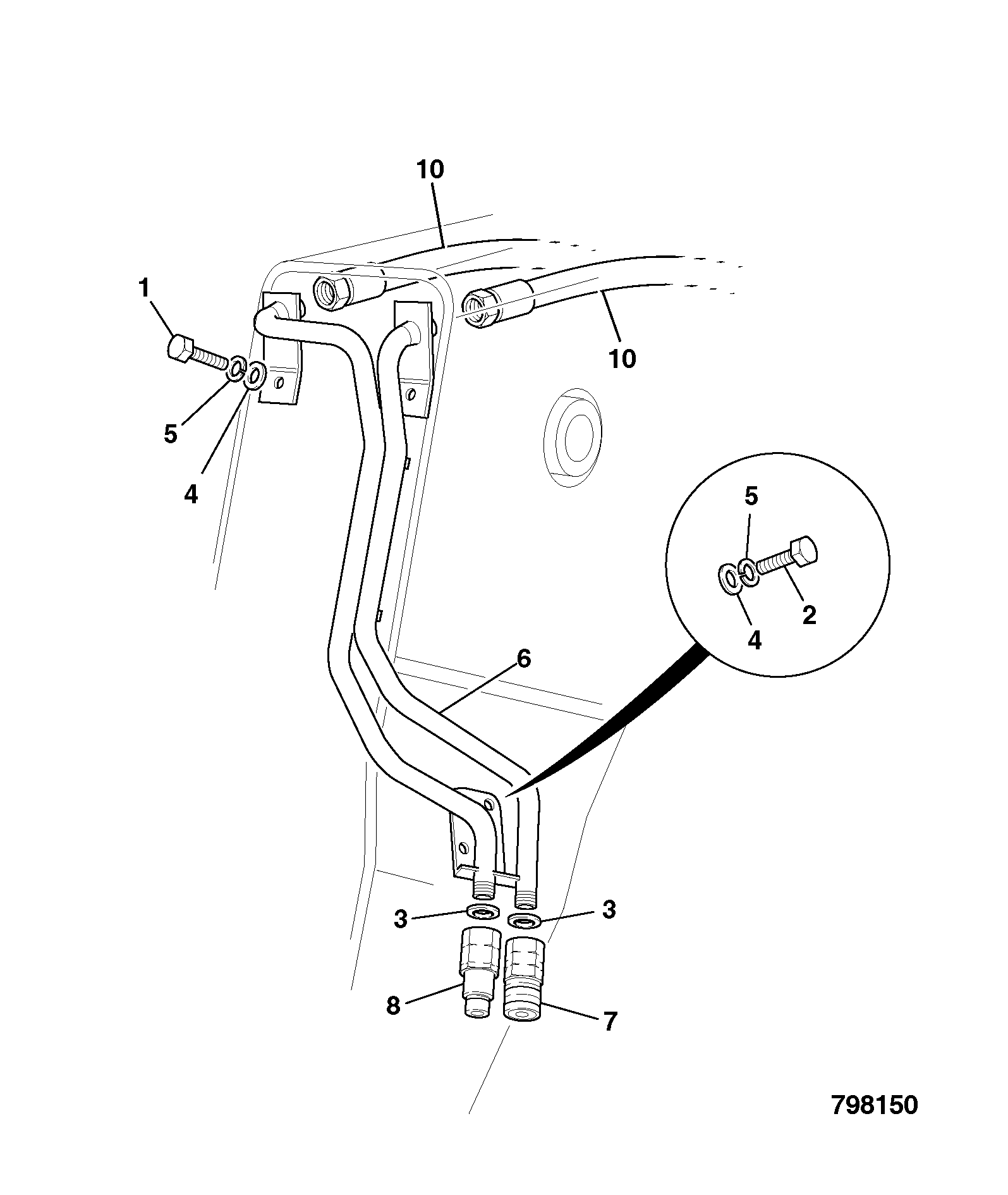

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| LABEL: SINGLE AUXILLARY 817/18591 | 1 | $62.53 | ||||
| 1 | COUPLING QR MALE 3/8BSP 45/910700 | 1 | $60.31 | |||
| 2 | FEMALE Q/R COUPLING 45/916200 | 1 | $183.76 | |||
| 3 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 4 | WASHER BONDED 3/8" BSP(KANBAN) 1406/0015 | 1 | $1.52 | |||
| 5 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 6 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 7 | HOSE 26 1/2 STR/STR 613/01000 | 1 | $102.96 | |||
| 8 | HOSE 24 1/2 STR/STR 613/00700 | 1 | $98.56 | |||
| 9 | HOSE - 08 BSP HP 6740mm B 629/15100 333/E0841 | 1 | $549.39 | |||
| 10 | PIPE LH AUX W.A. 161/00780 | 1 | $722.96 | |||
| 11 | PIPE AUX R.H. WA. 161/00781 | 1 | $653.65 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 13 | HOSE 613/24300 | 1 | $218.85 | |||
| 15 | CLAMP (1EA = 2 HALF) 821/00285 | 1 | $34.86 | |||
| 16 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 17 | (W) (P) BOLT M8x50 1315/3312Z | 1 | $3.83 | |||
| 18 | BOLT M8x80(KANBAN) 1315/3318Z | 1 | $2.44 | |||
| 19 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-E1-5-1-400909 E1-5-1 CIRCUIT,1ST AUX
View Diagram -
DIAG-E1-5-2-400909 E1-5-2 CIRCUIT,AUX 2 CON & AGRI
View Diagram -
DIAG-E1-6-1-400909 E1-6-1 HYDRAULIC FILTER VARIABLE PUMP INSTALLATION
View Diagram
