Scroll to zoom Click a part # to view details

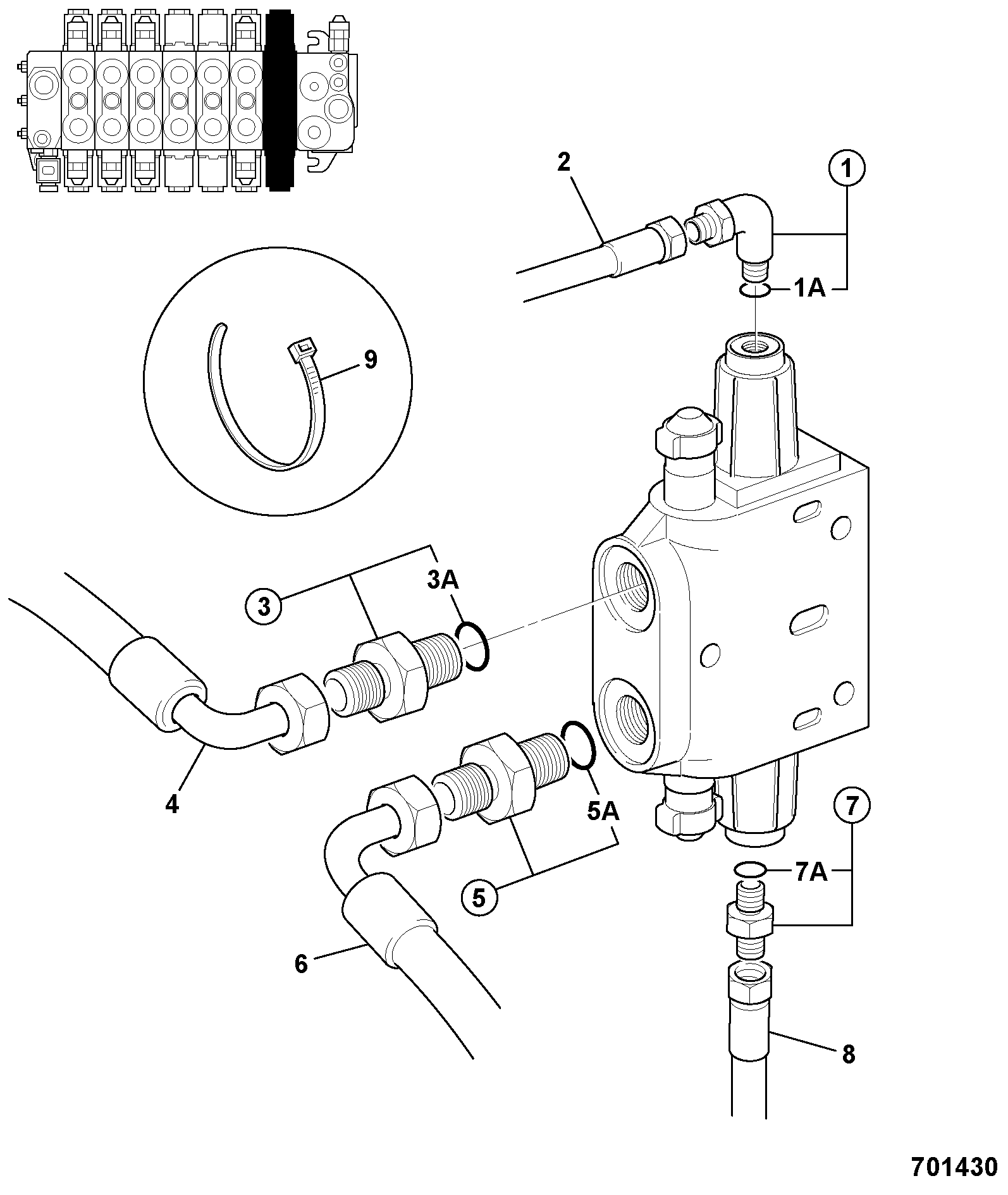

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ELBOW G1/4A X 9/16UNF 816/90618 | 1 | $21.13 | |||
| 1A | O-RING 2401/0505 | 1 | $2.54 | |||
| 2 | (W) (P) HOSE 1/4 BSP 390mm 649/51551 | 1 | $146.18 | |||
| 2 | HOSE 1/4BSP 650mm 649/51547 | 1 | $36.08 | |||
| 3 | ADAPTOR SAE/BSP M/M 816/90640 | 1 | $10.23 | |||
| 3A | O-RING 2401/0508 | 1 | $3.28 | |||
| 4 | HOSE 629/30029 | 1 | $164.67 | |||
| 4 | HOSE 1/2BSP 1565mm 629/30024 | 1 | $172.07 | |||
| 6 | HOSE 613/36002 | 1 | $146.98 | |||
| 6 | HOSE 1/2"BSP 1830mm 613/36011 | 1 | $158.38 | |||
| 7 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 8 | HOSE -SERVO 649/51244 | 1 | $54.09 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-E1-46-1-394940 E1-46-1 HOSE AND PIPEWORK SLEW SECTION EXCAVATOR VALVE
View Diagram -
DIAG-E1-48-1-394940 E1-48-1 HOSE AND PIPEWORK STABILISER SECTION EXCAVATOR VALVE
View Diagram -
DIAG-E1-49-1-394940 E1-49-1 HOSE AND PIPEWORK DIPPER SECTION EXCAVATOR VALVE
View Diagram
