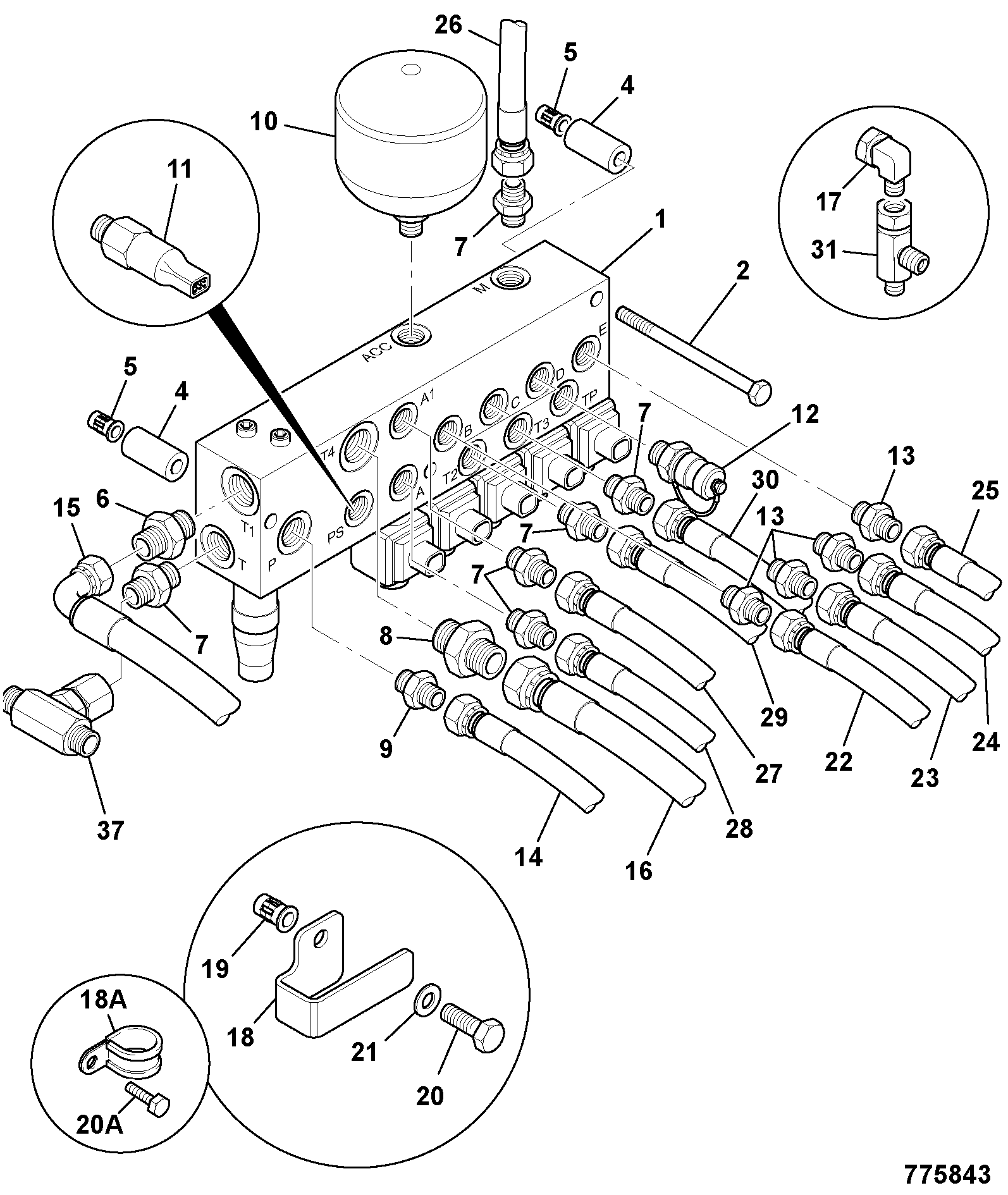

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | BOLT M8x120 1315/3322Z | 1 | $4.11 | |||
| 3 | SPACER 10.6x22x35 829/31257 | 1 | $1.16 | |||
| 4 | RIVET NUT M8 826/01254 826/01106 | 1 | $1.04 | |||
| 6 | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 7 | ACCUMULATOR 0.24ltr discharged 333/C4920 | 1 | $615.90 | |||
| 7 | ACCUMULATOR DISCHARGED 903/11150 32/926090 | 1 | $577.56 | |||
| 8 | 'Adapter Pressure Test Point 9/16-18UNF 45/908000 | 1 | $132.58 | |||
| 9 | HOSE - 08 BSP LP 1350mm A 332/E7555 | 1 | $51.92 | |||
| 9 | HOSE 1/2BSP 1850mm 613/09201 | 1 | $90.52 | |||
| 10 | HOSE SUPPORT 331/47167 | 1 | $25.81 | |||
| 10A | P-CLIP 20 I/D 332/C5679 | 1 | $5.61 | |||
| 11 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 11A | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 13 | Adapter 1"BSP x 1/ 816/90753 | 1 | $27.29 | |||
| 13 | TEE ADAPTER 816/90394 | 1 | $96.51 | |||
| 14 | ADAPTOR 1620/2052 | 1 | $2.49 | |||
| 15 | HOSE 612/35300 | 1 | $47.04 | |||
| 19 | HOSE -4 BSP 400mm 611/20800 336/F4266 | 1 | $22.31 | |||
| 20 | (W) (P) HOSE 1/4BSP 470mm 611/80049 | 1 | $45.86 | |||
| 23A | (W) (P) Q/R COUPLING 9/16 332/C0191 | 1 | $54.58 | |||
| 23B | IN-LINE CHECK VALVE 1bar 332/C2530 | 1 | $41.45 | |||
| 23C | HOSE 1/4BSP 150mm PILOT PTC 332/C5527 | 1 | $207.72 | |||
| 23D | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 25 | 1/4 BSP SERVO HOSE 649/51435 | 1 | $204.82 | |||
| 25 | HOSE 1/4BSP 630mm 649/51975 | 1 | $100.60 | |||
| 26 | HOSE 1/4BSP 900mm 649/51345 | 1 | $37.56 | |||
| 27 | HOSE 1/4 BSP 900MM 649/51241 | 1 | $45.49 | |||
| 37 | ADAPTOR 1/4 BSP TEE-M/F/M 816/90013 | 1 | $80.41 | |||
| 47 | ADATOR TEE 816/90003 | 1 | $81.14 | |||
Showing 1 to 30 of 30 parts
Related Assemblies
-

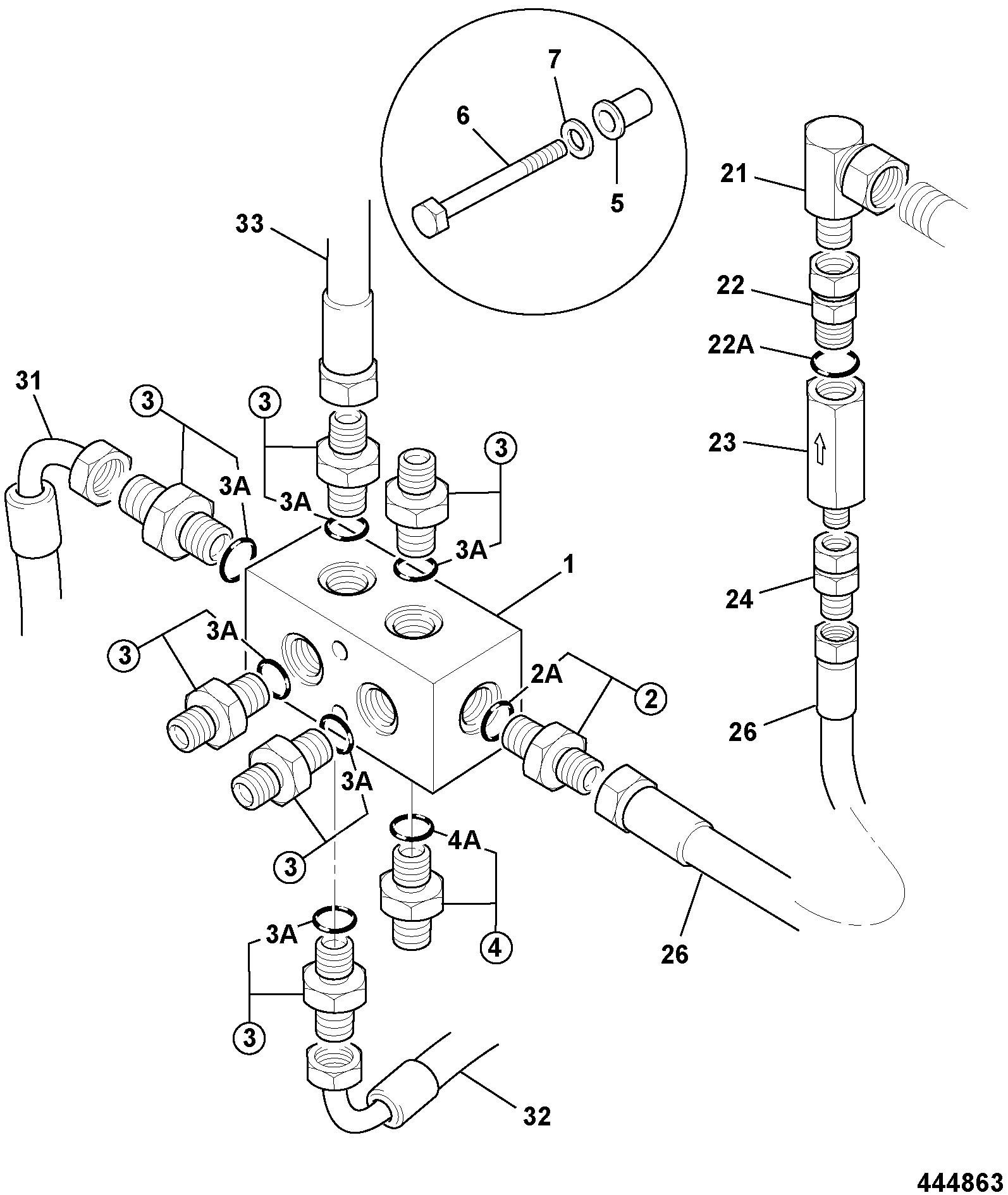

DIAG-E1-43-1-395145 E1-43-1 HOSE AND PIPEWORK PILOT OIL SUPPLY MANIFOLD VALVE
View Diagram -
DIAG-E1-43-11-395145 E1-43-11 HOSE AND PIPEWORK PILOT MANIFOLD PCH
View Diagram -

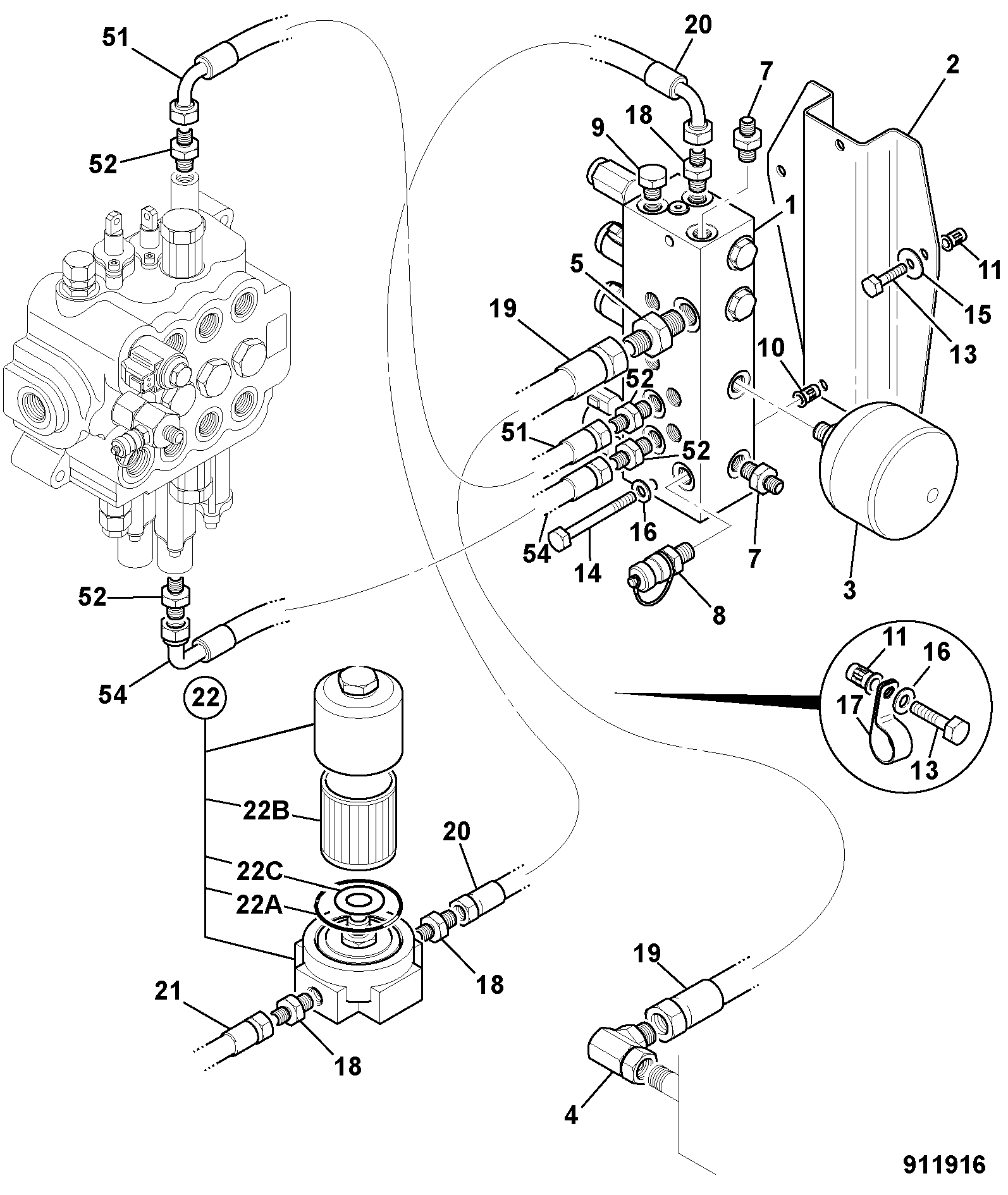

DIAG-E1-42-1-395145 E1-42-1 HOSE AND PIPEWORK MANIFOLD BLOCK REAR CROSSMEMBER
View Diagram
