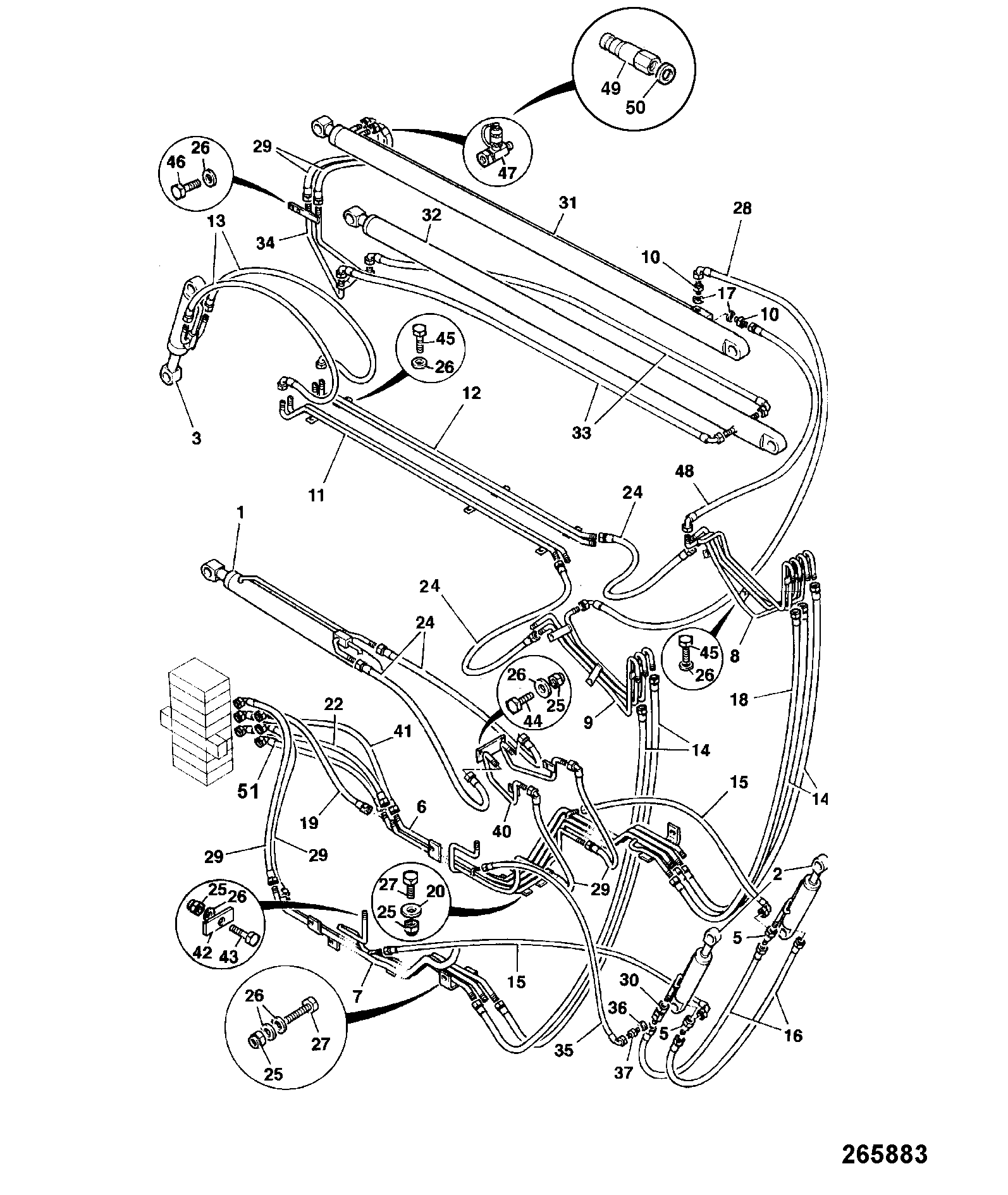

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BOLT M6x60 (P785) 1315/3214Z | 1 | $2.00 | ||||
| BOLT M8x70 1315/3316Z | 1 | $2.18 | ||||
| CLAMP COVER PLATE 821/00335 | 1 | $8.08 | ||||
| HOSE 3/8BSP 775mm 612/42300 | 1 | $0.00 | ||||
| HOSE CLAMP ; 17.2mm 821/00286 | 1 | $29.33 | ||||
| NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $0.80 | ||||
| PLATE CLAMP 821/00122 | 1 | $37.77 | ||||
| SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | ||||
| TWO HOSE CLAMP T4F (PAIR) 821/00234 | 1 | $13.26 | ||||
| 1 | SET SCREW M8x50 1315/0312Z | 1 | $4.45 | |||
| 5 | hose 3/8"BSP 612/28500 | 1 | $75.87 | |||
| 6 | HOSE- 06 BSP HP 600 mm B 612/22600 | 1 | $39.65 | |||
| 7 | (W) (Pre-P)-3/8 HIGH PRES HYD HOSE 612/26300 612/32000 | 1 | $71.98 | |||
| 8 | (W) (P) HOSE 612/45800 | 1 | $81.14 | |||
| 9 | WASHER 5/16 SPRING 1416/0005Z | 1 | $2.54 | |||
| 10 | HOSE 1/4BSP 725mm 611/28100 | 1 | $128.19 | |||
| 11 | (P) HOSE HP 3/8 BSPx1345LG 612/30300 | 1 | $56.22 | |||
| 12 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $0.37 | |||
| 13 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $6.63 | |||
| 14 | 3/8 BSP HOSE HIGH PRESS 612/80051 | 1 | $55.29 | |||
| 15 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 17 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 19 | (W) SET SCREW M8x40 1315/0310Z | 1 | $0.00 | |||
| 20 | (W) WASHER 5/16 MED PLAIN 1411/0002Z | 1 | $0.18 | |||
| 21 | HOSE -06 BSP HP 630 mm B 612/35200 | 1 | $87.89 | |||
| 22 | HOSE 3/8BSP 300mm 612/24000 | 1 | $35.30 | |||
| 25 | HOSE 3/8" BSP 1460mm 612/33300 | 1 | $75.31 | |||
| 26 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $0.48 | |||
Showing 1 to 28 of 28 parts
Related Assemblies
-
DIAG-E1-2-2-402199 E1-2-2 CIRCUIT,LIFT END
View Diagram -
DIAG-E1-4-4-402199 E1-4-4 CIRCUIT,STEERING
View Diagram -
DIAG-E1-1-2-402199 E1-1-2 MAIN HYDRAULICS 537H
View Diagram
