Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| (Z) SMOOTH RIDE SYSTEM KIT 980/88843 | 1 | $2,753.41 | ||||
| CARTRIDGE 25/221494 | 1 | $1,214.32 | ||||
| COIL 12V 25/970601 25/983802 | 1 | $71.79 | ||||
| NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | ||||
| 1 | VALVE RIDE CONTROL 25/209200 | 1 | $2,053.60 | |||
| 2 | ACCUMULATOR 903/14803 | 1 | $647.14 | |||
| 2A | KIT-SEAL ACCUMULAT 903/14801 | 1 | $62.56 | |||
| 2B | VALVE ASSEMBLY ACC 903/14802 | 1 | $169.98 | |||
| 3 | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 3A | O RING 1/2 BSP 2301/0010 | 1 | $0.23 | |||
| 5 | HOSE 3/8BSP 450mm 612/02700 | 1 | $224.71 | |||
| 7 | HOSE 1/2BSP 680mm 613/07100 | 1 | $70.59 | |||
| 8 | U-BOLT M6 826/01797 | 1 | $2.59 | |||
| 9 | BRACKET 123/07548 | 1 | $114.05 | |||
| 10 | BRACKET 123/07549 | 1 | $8.98 | |||
| 11 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 12 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 13 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 14 | BOLT M10x80(KANBAN) 1315/3418Z | 1 | $1.63 | |||
| 16 | CABLE TIE 385MM 001/00233 270/00106 | 1 | $0.58 | |||
| 20 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 21 | ADAPTOR 1/2 BSP X9/16-18 816/90038 | 1 | $5.96 | |||
| 21A | O-RING 2401/0505 | 1 | $2.54 | |||
| 22 | ADAPTOR -TEE 816/50005 | 1 | $25.86 | |||
| 23 | TEE ADAPTOR 1"M X 1"FS X 1/2"M 816/50003 | 1 | $112.35 | |||
| 26 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-

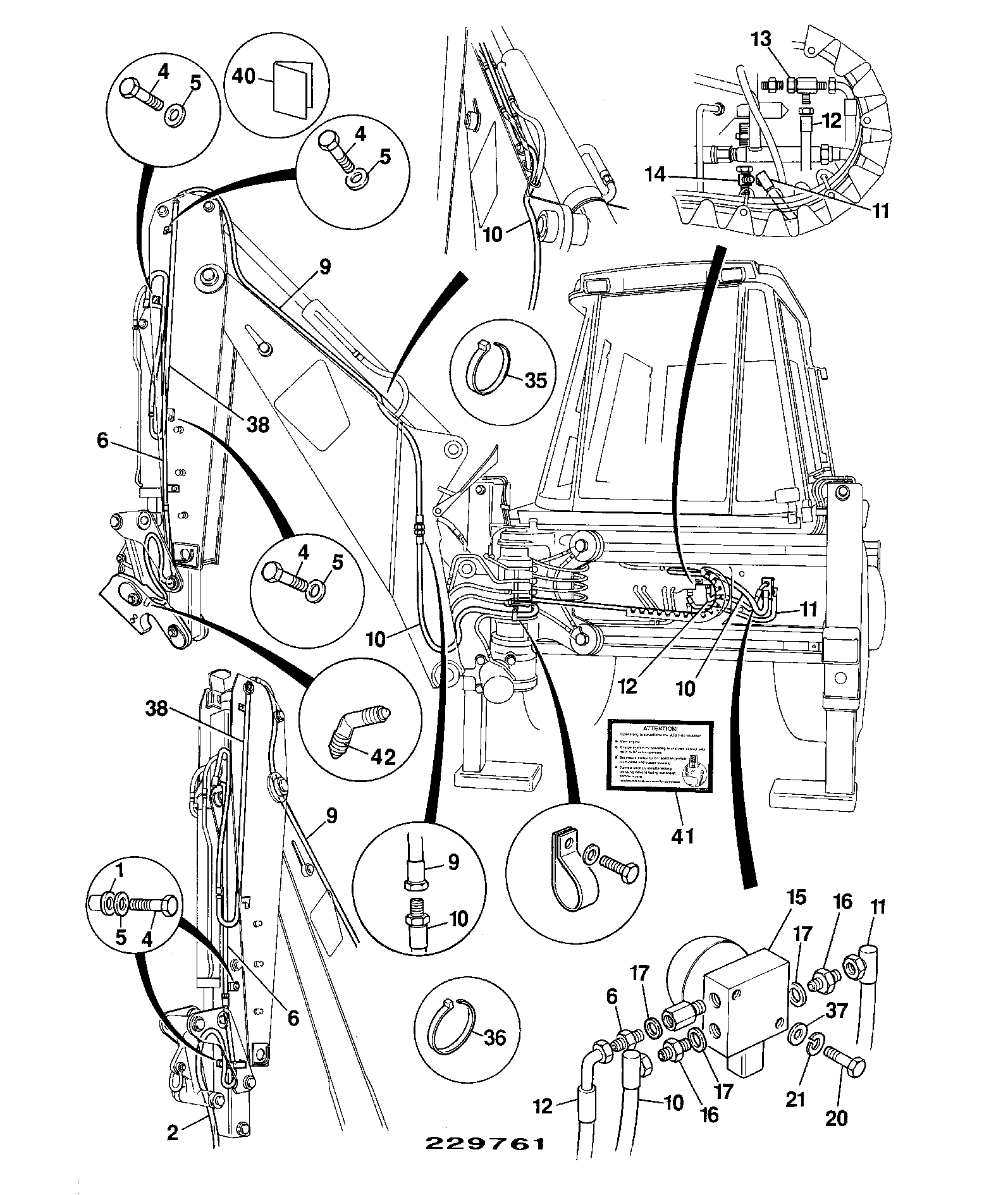

DIAG-E1-20-11-395103 E1-20-11 CIRCUIT, AUXILIARY BACKHOE CENTREMOUNT EXRADIG DIPPER, QUICKHITCH INSTALLATION
View Diagram -

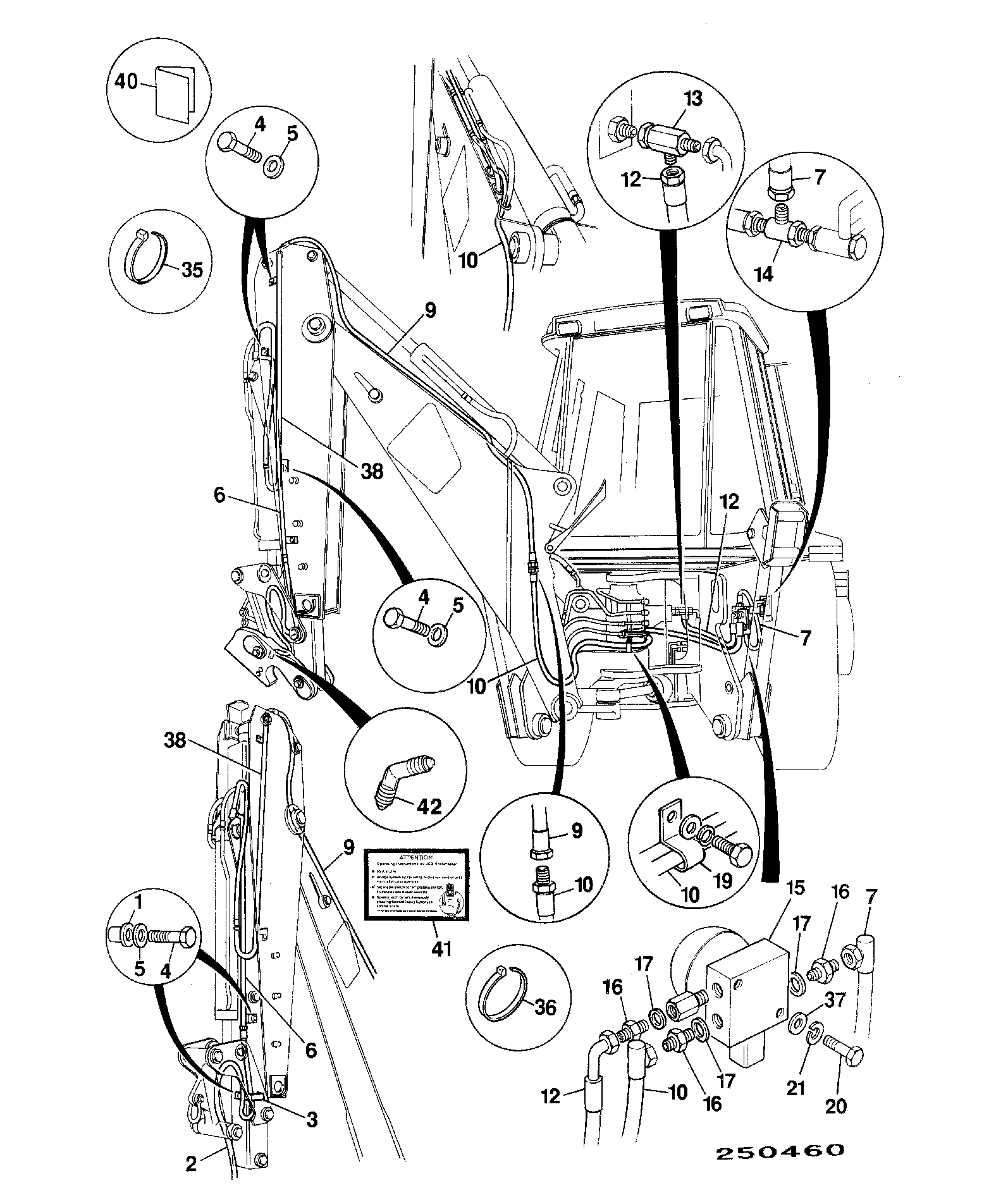

DIAG-E1-20-10-395103 E1-20-10 CIRCUIT, AUXILIARY BACKHOE CENTREMOUNT STANDARD DIPPER, QUICKHITCH INSTALLATION
View Diagram -
DIAG-E1-20-2-395103 E1-20-2 CIRCUIT, AUXILIARY BACKHOE EXRADIG DIPPER, QUICKHITCH INSTALLATION
View Diagram
