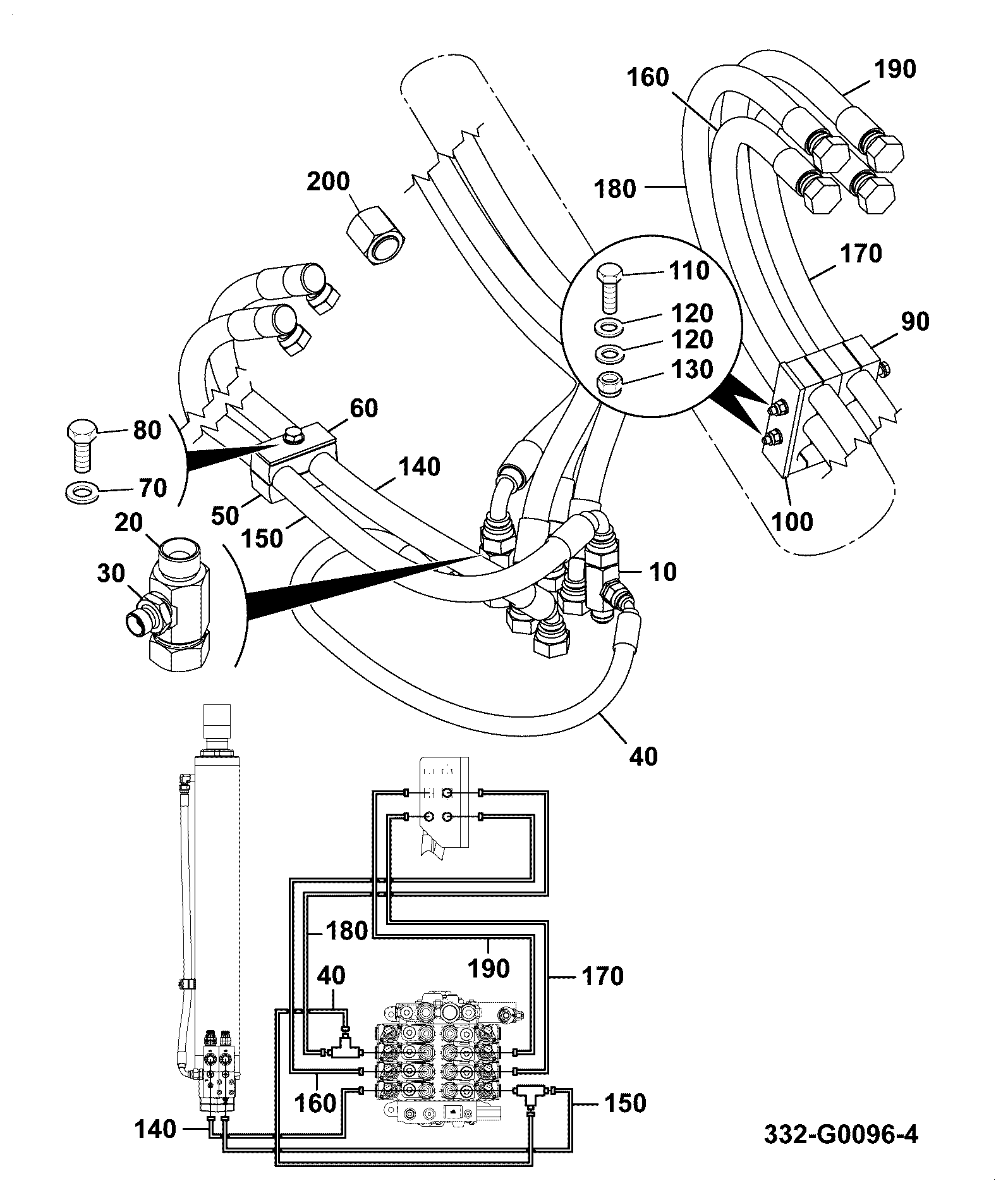

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | CL2 BSP ADAPTOR 816/90284 | 1 | $46.32 | |||
| 20 | ADAPTER, TEE 816/90404 | 1 | $73.80 | |||
| 30 | ADAPTOR. G1/4A - 7/16 SAE 816/90167 | 1 | $126.95 | |||
| 40 | HOSE - 04 BSP HP 640mm C 332/G4322 | 1 | $155.56 | |||
| 50 | CLAMP (1EA = 2 HALF) 821/00285 | 1 | $34.86 | |||
| 60 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 70 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 80 | SET SCREW M8x45 1315/0311Z | 1 | $1.52 | |||
| 90 | CLAMP (set/pairs) 332/G3978 | 1 | $22.67 | |||
| 100 | TOP PLATE 332/G4395 | 1 | $11.22 | |||
| 110 | Bolt M6x110 1315/3221Z | 1 | $1.46 | |||
| 120 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 130 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 140 | HOSE 1/2 BSP 1320MM RED 332/G9958 | 1 | $175.80 | |||
| 150 | GA HOSE 1/2 BSP 1325MM BLUE 332/G9961 | 1 | $148.55 | |||
| 160 | GA HOSE 1/2 BSP 1480MM YELLOW 332/G4331 | 1 | $180.90 | |||
| 170 | GA HOSE 1/2 BSP 1480MM PINK 332/G4336 | 1 | $92.82 | |||
| 180 | GA HOSE 1/2 BSP 1460MM LILAC 332/G4338 | 1 | $95.44 | |||
| 190 | GA HOSE 1/2 BSP 1530MM ORANGE 332/G4343 | 1 | $91.72 | |||
| 200 | P CLIP 20mm DIA. 821/00306 | 1 | $6.70 | |||
| 210 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 220 | HOSE 612/72011 | 1 | $167.78 | |||
Showing 1 to 22 of 22 parts
