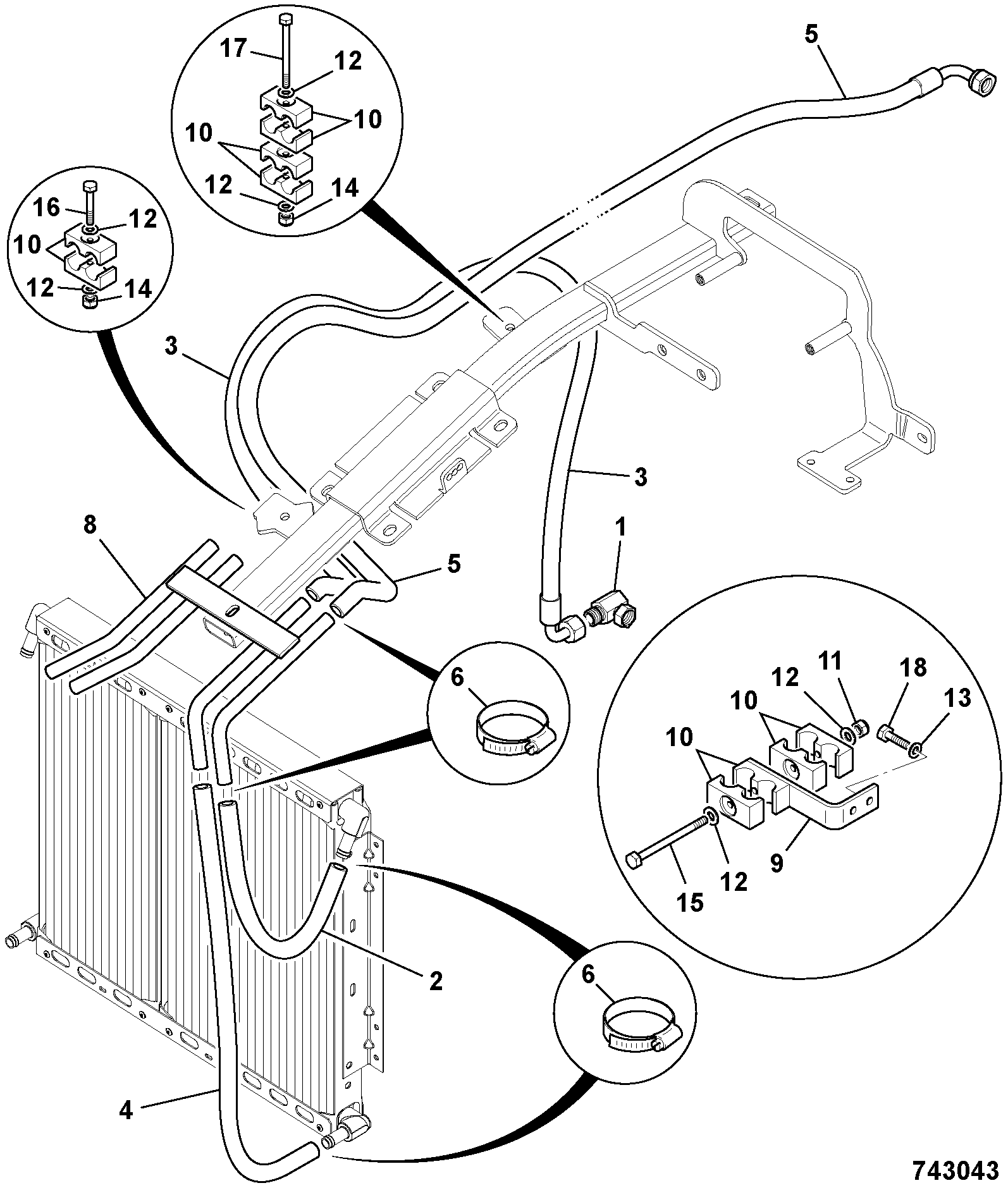

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| (W) (Pre-P)-BOLT M8x55 1315/3313Z | 1 | $2.47 | ||||
| ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $12.58 | ||||
| CLAMP PLATE 821/00496 | 1 | $4.93 | ||||
| DUAL HOSE CLAMP SET 821/10431 | 1 | $1.52 | ||||
| HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | ||||
| HOSE 5/8BSP 800mm 614/03200 | 1 | $99.82 | ||||
| L/H PIPE loader long 5/8 335/08593 332/F0919 | 1 | $330.00 | ||||
| O RING 2401/0203 | 1 | $0.65 | ||||
| R/H PIPE loader long 5/8 335/08592 332/F0910 | 1 | $344.94 | ||||
| RIVET NUT M10 826/01249 | 1 | $8.20 | ||||
| SET SCREW M10x40 1315/0410Z | 1 | $2.26 | ||||
| SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | ||||
| SOCKET SCREW M10x40 332/D3982 | 1 | $1.91 | ||||
| WA AUXILARY PIPE LH 335/07274 | 1 | $324.10 | ||||
| WA AUXILARY PIPE RH 335/07275 | 1 | $289.26 | ||||
| WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | ||||
| WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | ||||
Showing 1 to 17 of 17 parts
