Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HAMMER PIPE feed 10' 335/09230 | 1 | $484.39 | |||
| 2 | HOSE CLIP 331/31355 | 1 | $5.31 | |||
| 3 | HOSE 1/2BSP 930mm 629/80115 | 1 | $131.62 | |||
| 4 | WA BULKHEAD PLATE 335/09835 | 1 | $80.21 | |||
| 5 | HAMMER PIPE return 10' 335/09231 | 1 | $291.07 | |||
| 6 | HOSE 5/8BSP 930mm 629/80116 | 1 | $167.32 | |||
| 7 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 9 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 10 | SET SCREW M8x35(KANBAN) 1315/0309Z | 1 | $2.57 | |||
| 11 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 12 | HOSE 1/2BSP 1200mm 613/80129 | 1 | $103.59 | |||
| 12 | HOSE 1/2BSP 1275mm 613/80130 | 1 | $79.93 | |||
| 13 | HOSE 5/8BSP 3450mm 614/80075 | 1 | $214.37 | |||
| 14 | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 14A | O-RING 2401/0506 | 1 | $1.46 | |||
| 15 | ADAPTOR 816/90175 | 1 | $29.66 | |||
| 15A | WASHER BONDED 1" BSP 1406/0021 | 1 | $6.00 | |||
| 16 | COUPLING QR FEMALE A13 - 3/4BSP 45/908400 | 1 | $167.30 | |||
| 17 | DUST CAP - QRC A13 RED 45/908401 | 1 | $3.85 | |||
| 18 | ADAPTOR 816/90027 | 1 | $50.66 | |||
| 20 | COUPLING QR FEMALE HQ10 - 8SAE 45/920049 | 1 | $160.53 | |||
| 21 | FLIP TOP CAP 835/10082 | 1 | $5.79 | |||
| 22 | CABLE TIE 120mm 204/07006 | 1 | $1.64 | |||
| 23 | HOSE 1/4BSP 3040mm 629/80107 | 1 | $64.69 | |||
| 24 | ADAPTOR 1/4 BSP BULKHEAD 816/90005 | 1 | $4.45 | |||
| 24A | BACK NUT 1/4 BSP 1356/0202Z | 1 | $13.54 | |||
| 25 | HOSE 1/4BSP 1530mm 611/80083 | 1 | $270.30 | |||
| 25 | HOSE 1/4BSP 1605mm 611/80085 | 1 | $270.73 | |||
| 26 | WA HOSE GUIDE 335/05717 | 1 | $40.61 | |||
| 27 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 28 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 29 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 30 | WA SOCKET extdip lockpin 335/04539 335/09631 | 1 | $158.85 | |||
| 31 | ADAPTOR G1/4A-3/4UNF(M) (R) 1620/2063 | 1 | $4.62 | |||
| 32 | HOSE 1/4BSP 1070mm 611/80075 | 1 | $236.15 | |||
| 33 | ADAPTOR G3/8A-G1/4A 1606/0003 1606/2052 | 1 | $15.43 | |||
| 34 | WASHER BONDED 3/8" BSP(KANBAN) 1406/0015 | 1 | $1.52 | |||
| 35 | CLAMP 821/00283 | 1 | $3.54 | |||
| 36 | COVER PLATE 821/00155 | 1 | $0.89 | |||
| 37 | SET-SCREW M_6 L-35mm(KANBAN) 1315/0209Z | 1 | $1.22 | |||
| 38 | HOSE CLAMP 821/10268 | 1 | $13.81 | |||
| 39 | COUPLING QR MALE 3/8BSP 45/910700 | 1 | $60.31 | |||
| 45 | BOLT M10x60 1315/3414Z | 1 | $1.95 | |||
| 45 | BOLT M10x80(KANBAN) 1315/3418Z | 1 | $1.63 | |||
| 47 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
Showing 1 to 45 of 45 parts
Related Assemblies
-

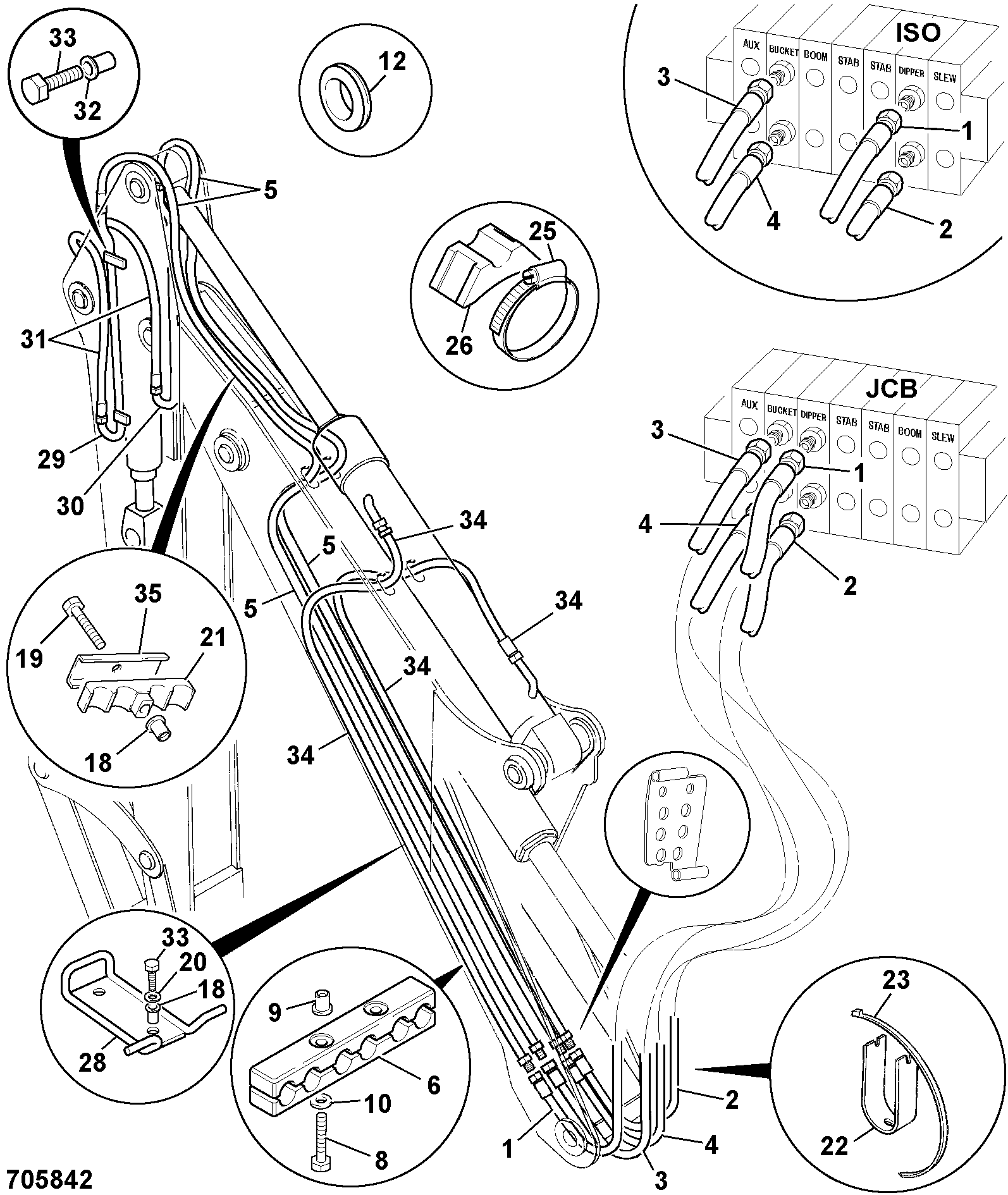

DIAG-E1-3-10-395086 E1-3-10 CIRCUIT, AUXILIARY EXTENDING DIPPER 10'
View Diagram -
DIAG-E1-4-10-395086 E1-4-10 CIRCUIT DIPPER & BUCKET (ISO & JCB) EXTENDING EXCAVATOR END 10'
View Diagram -

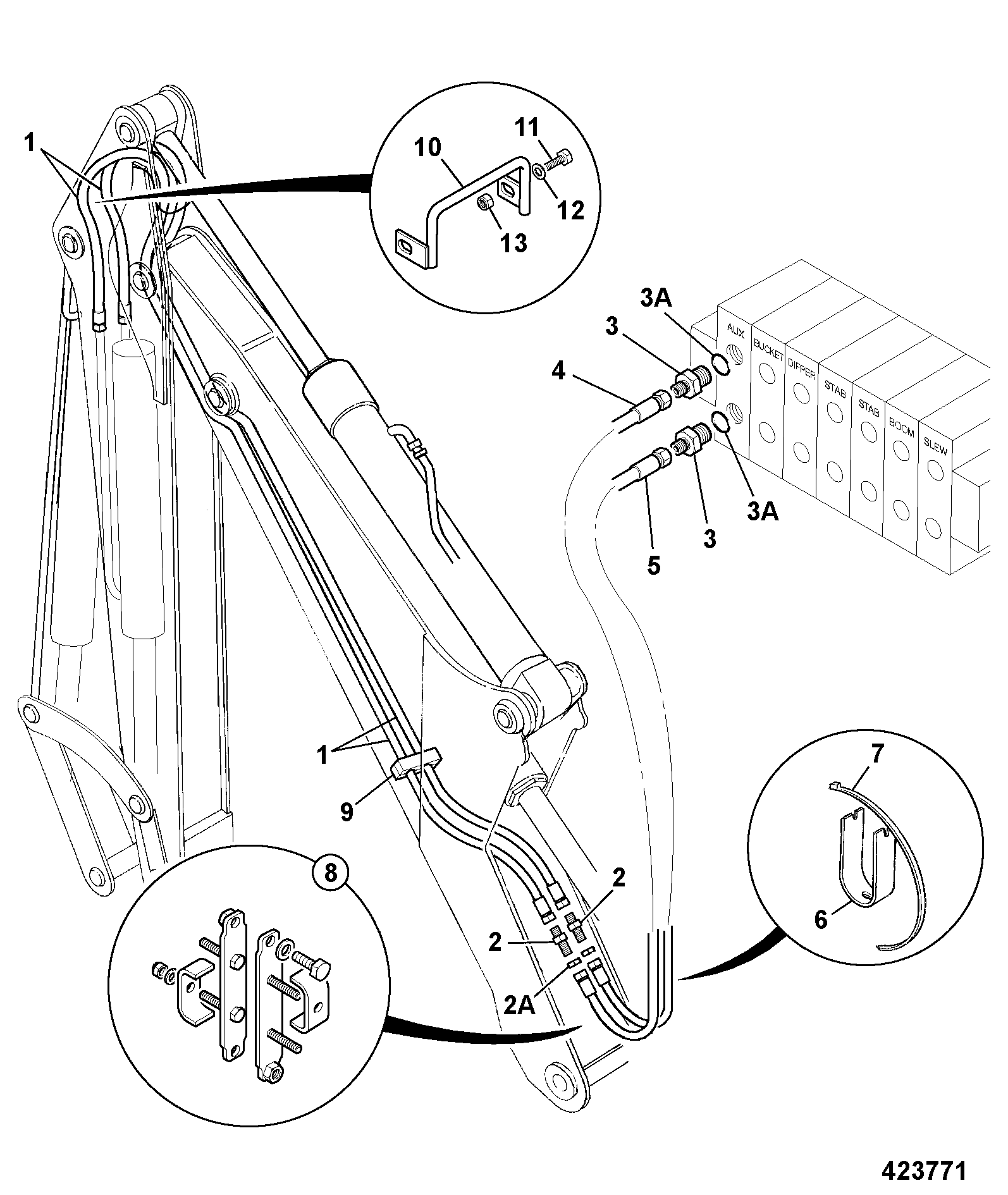

DIAG-E1-2-10-395086 E1-2-10 CIRCUIT, AUXILIARY BREAKER 10' & 12' FIXED DIPPERS
View Diagram
