Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HOSE, 5/8 HP - 1260mm LONG 614/80101 | 1 | $92.49 | |||
| 2 | HOSE 612/08200 | 1 | $650.13 | |||
| 3 | HOSE 1/2BSP 580mm 613/29600 | 1 | $107.10 | |||
| 4 | HOSE.1/2"BSP 613/21400 | 1 | $273.54 | |||
| 5 | 5/8 BSP HYD HOSE 2865mm 614/80024 | 1 | $334.44 | |||
| 6 | HYDRAULIC HOSE (HP) 614/26300 | 1 | $237.55 | |||
| 7 | ADAPTOR TEE BSP 5/8M x 5/8F x 1/2M 816/90082 | 1 | $135.54 | |||
| 8 | TEE ADAPTOR 816/50059 | 1 | $46.88 | |||
| 10 | ADAPTOR 1/2BSP X 5/8BSP 1606/0017 | 1 | $14.01 | |||
| 11 | WASHER 1406/0018 | 1 | $4.09 | |||
| 12 | COUPLING QR MALE 3/8BSP 45/910700 | 1 | $60.31 | |||
| 20 | RESTRICTOR 816/20051 | 1 | $25.74 | |||
| 23 | FEMALE Q/R COUPLING 45/916200 | 1 | $183.76 | |||
| 24 | ADAPTOR G1/2 - G3/8A 816/20012 | 1 | $18.73 | |||
| 26A | PIPE ASSY 159/69466 | 1 | $522.22 | |||
| 26B | WA AUX.PIPES.530-67/506B 159/69469 | 1 | $436.83 | |||
| 27 | WASHER BONDED 3/8" BSP(KANBAN) 1406/0015 | 1 | $1.52 | |||
| 31 | HOSE CLAMP.BOOM.506B 158/30395 | 1 | $91.41 | |||
| 32 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 33 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 34 | FOAM STRIP - 15m coil 824/50011 | 1 | $128.94 | |||
| 38 | (W) (P) SET SCREW M6x40 1315/0210Z | 1 | $6.06 | |||
| 39 | HOSE CLAMP.6 WAY.506B 159/69490 | 1 | $68.77 | |||
| 40 | SET 3/8UNFx1.1/4 HT 1305/0208Z | 1 | $5.82 | |||
| 41 | (P) NUT 3/8UNF STD SELF LOCK 1340/0203Z | 1 | $1.75 | |||
| 42 | WASHER 3/8in MEDIUM 1411/0003D | 1 | $0.48 | |||
| 43 | WA HOSE GUIDE BRKT. 158/10100 | 1 | $436.95 | |||
| 44 | CABLE TIE 385MM 001/00233 270/00106 | 1 | $0.58 | |||
| 45 | ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $12.58 | |||
Showing 1 to 29 of 29 parts
Related Assemblies
-

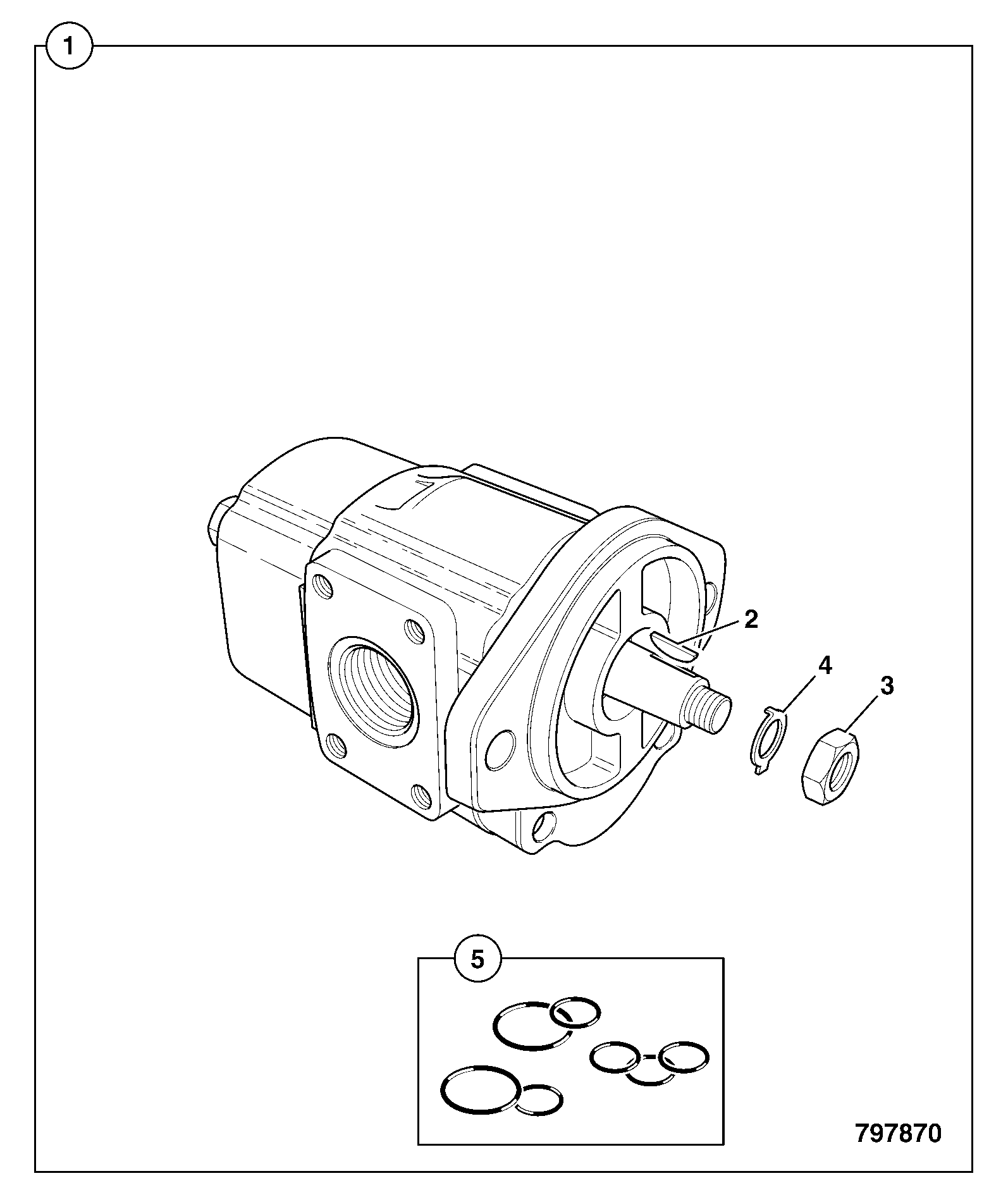

DIAG-E2-1-1-400298 E2-1-1 PUMP,MAIN HYDRAULIC
View Diagram -
DIAG-E3-15-2-400298 E3-15-2 VALVE PRIORITY FLOW DIVIDER
View Diagram -
DIAG-E4-1-1-400298 E4-1-1 RAM,LIFT
View Diagram
