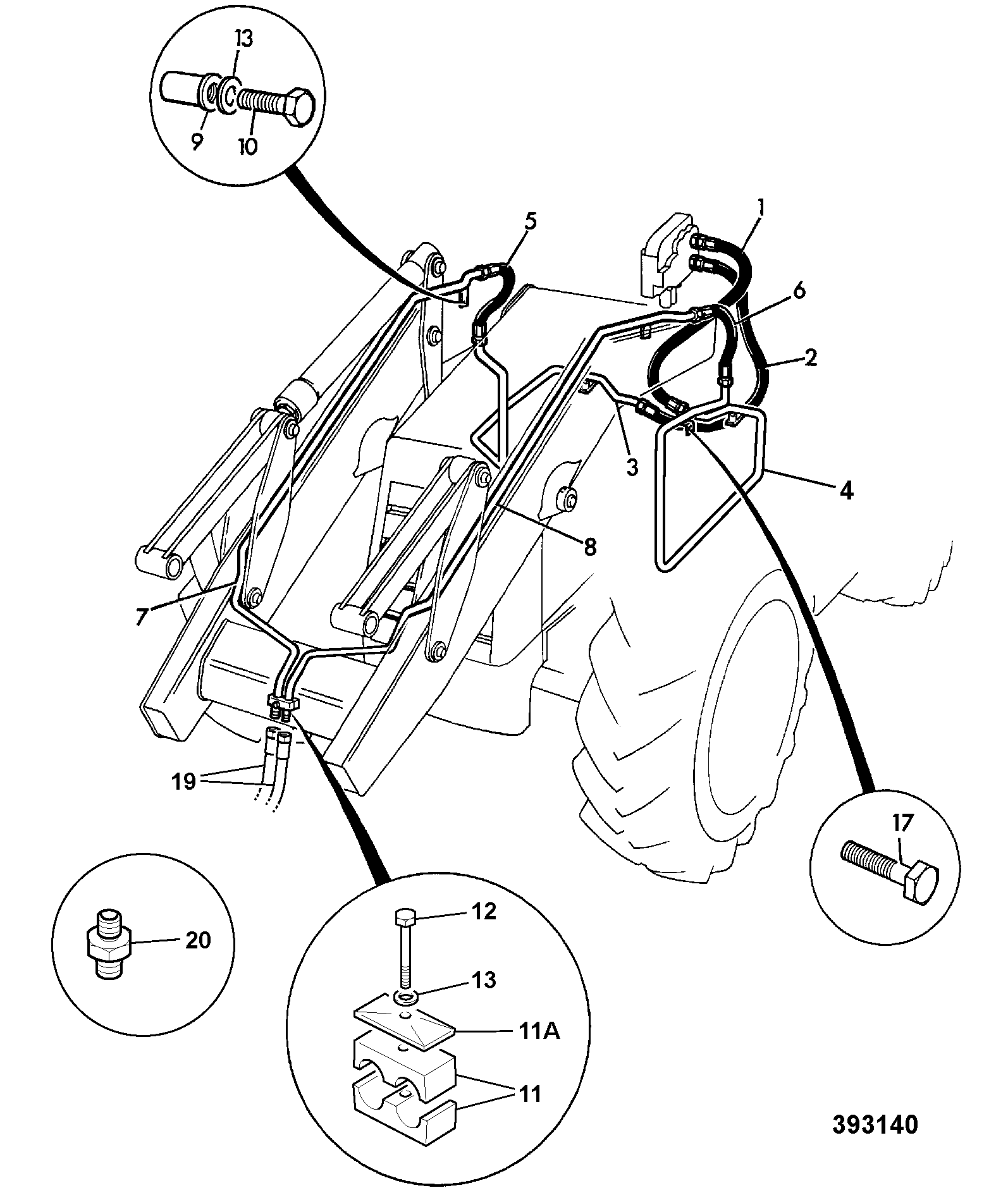

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | ||||
| WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | ||||
| 1 | HOSE 3/8BSP 500mm 612/00100 | 1 | $83.51 | |||
| 3 | R/H PIPE ldr.aux.3/8 335/03250 | 1 | $328.98 | |||
| 3 | RH AUX FEED PIPE 335/04374 | 1 | $64.72 | |||
| 3 | WA - RH PIPE 3/8" LOADER AUX 335/05716 335/13601 | 1 | $283.19 | |||
| 4 | L/H PIPE ldr.aux.3/8 335/03249 | 1 | $343.02 | |||
| 4 | WA - LH PIPE 3/8" LOADER AUX 335/05715 335/13600 | 1 | $312.92 | |||
| 5 | HOSE 3/8BSP 700mm 612/80079 | 1 | $241.93 | |||
| 5 | HOSE 3/8BSP 700mm 629/80125 | 1 | $77.67 | |||
| 7 | R/H PIPE LDR. SHORT 3/8" 335/03248 | 1 | $296.95 | |||
| 8 | L/H PIPE LDR. SHORT 3/8" 335/03247 | 1 | $342.52 | |||
| 9 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 10 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 12 | BOLT M10x45 1315/3411Z | 1 | $5.64 | |||
| 13 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 17 | (W) (Pre-P)-BOLT M8x55 1315/3313Z | 1 | $2.47 | |||
| 18 | O-RING 828/00135 | 1 | $0.38 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-E1-3-1-395097-11177647 E1-3-1 CIRCUIT, AUXILIARY LOADER 2WS (3/8" BSP PIPEWORK)
View Diagram -
DIAG-E1-2-31-395097 E1-2-31 CIRCUIT, LOADER ARM SHOVEL RAM HOSE BURST PROTECTION
View Diagram -
DIAG-E1-3-10-395097 E1-3-10 CIRCUIT, AUXILIARY LOADER 2WS (5/8" BSP PIPWORK)
View Diagram
