Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ADAPTOR G1-G3/4A 816/90185 | 1 | $56.90 | ||||
| NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | ||||
| WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | ||||
| 1 | COOLER HYDRAULIC 30/925701 | 1 | $1,359.90 | |||
| 2 | ADAPTOR 1620/2061 | 1 | $11.29 | |||
| 2A | O-RING 2401/0510 | 1 | $1.46 | |||
| 3 | ADAPTOR -EXTENDED 816/90150 | 1 | $11.56 | |||
| 3 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 3A | 'O' RING (P564) 2401/0507 | 1 | $1.46 | |||
| 6 | LH BAFFLE PLATE 331/31838 | 1 | $178.30 | |||
| 7 | SIDE SEAL 331/31840 | 1 | $16.93 | |||
| 8 | Plate baffle right 331/31839 | 1 | $222.20 | |||
| 12 | 3/4 BSP LOW PRESSURE HOSE 635/80089 | 1 | $149.20 | |||
| 12 | HOSE 635/80093 | 1 | $184.57 | |||
| 26 | HOSE.1BSP LP 2750mm LG 637/80048 | 1 | $328.37 | |||
| 27 | HOSE 635/32100 | 1 | $220.13 | |||
| 27 | HOSE 635/80094 | 1 | $50.69 | |||
| 27 | HOSE 637/80049 | 1 | $148.05 | |||
| 28 | HOSE.1/2BSP 625mm LG 613/47700 | 1 | $157.39 | |||
| 29 | ADAPTOR G5/8 x G1/2A 816/20001 816/90254 | 1 | $82.62 | |||
| 29 | ADAPTOR G5/8A-1-1/16UNF(M) 1620/0008 1620/2057 | 1 | $25.23 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-

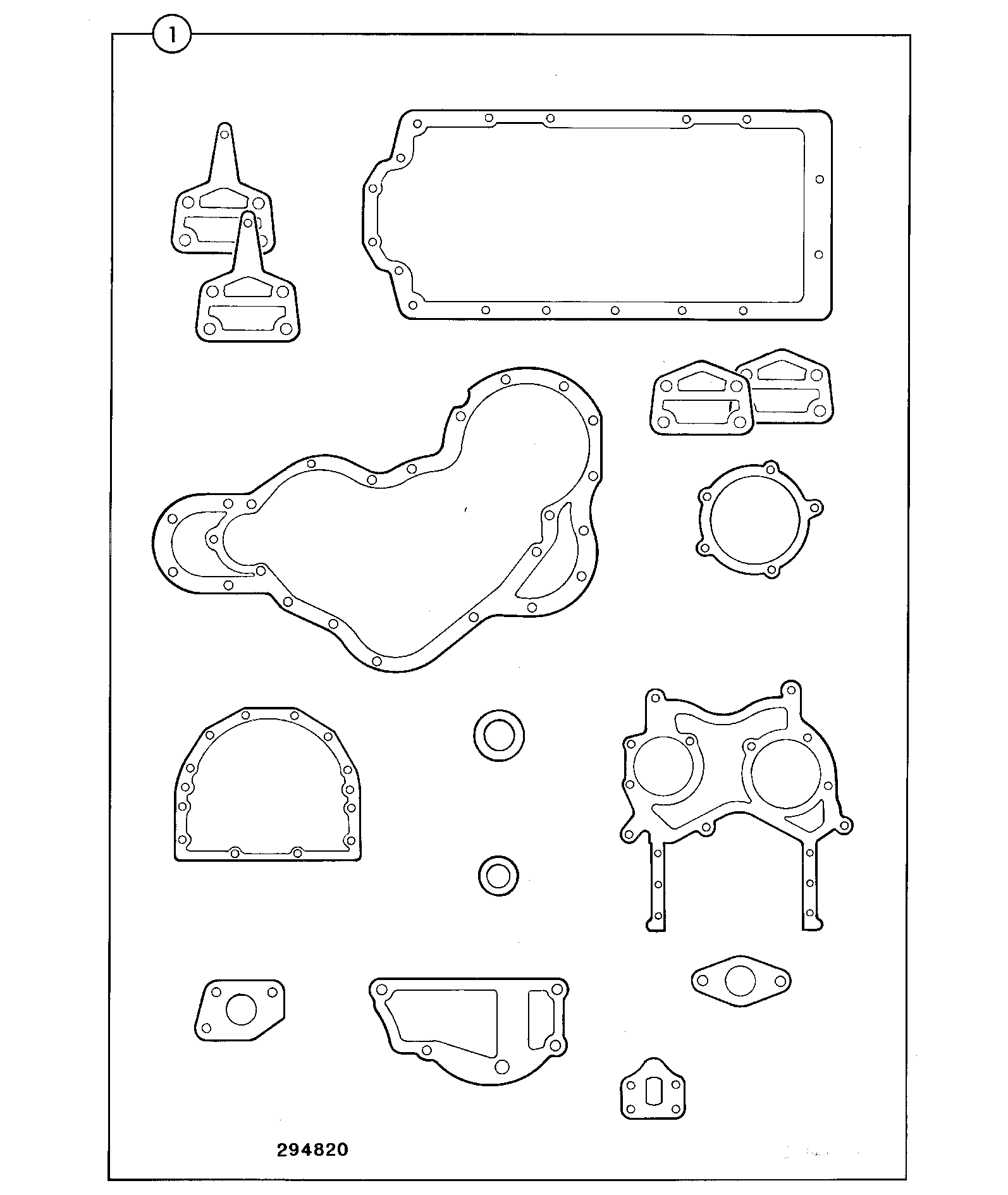

DIAG-P8-2-2-395424 P8-2-2 GASKET SET, BOTTOM AK BUILD
View Diagram -

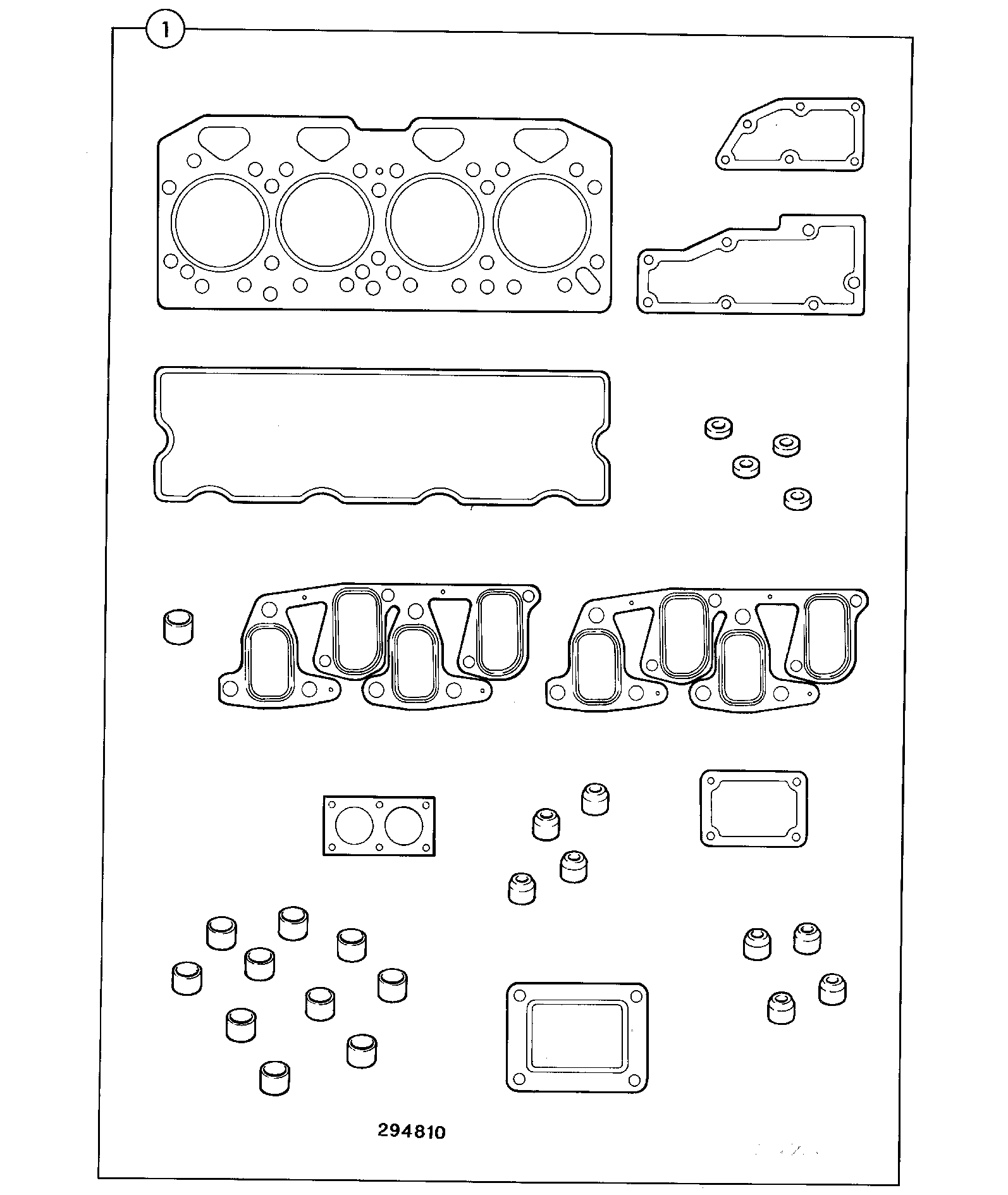

DIAG-P8-1-2-395424 P8-1-2 GASKET SET, TOP AK BUILD
View Diagram -

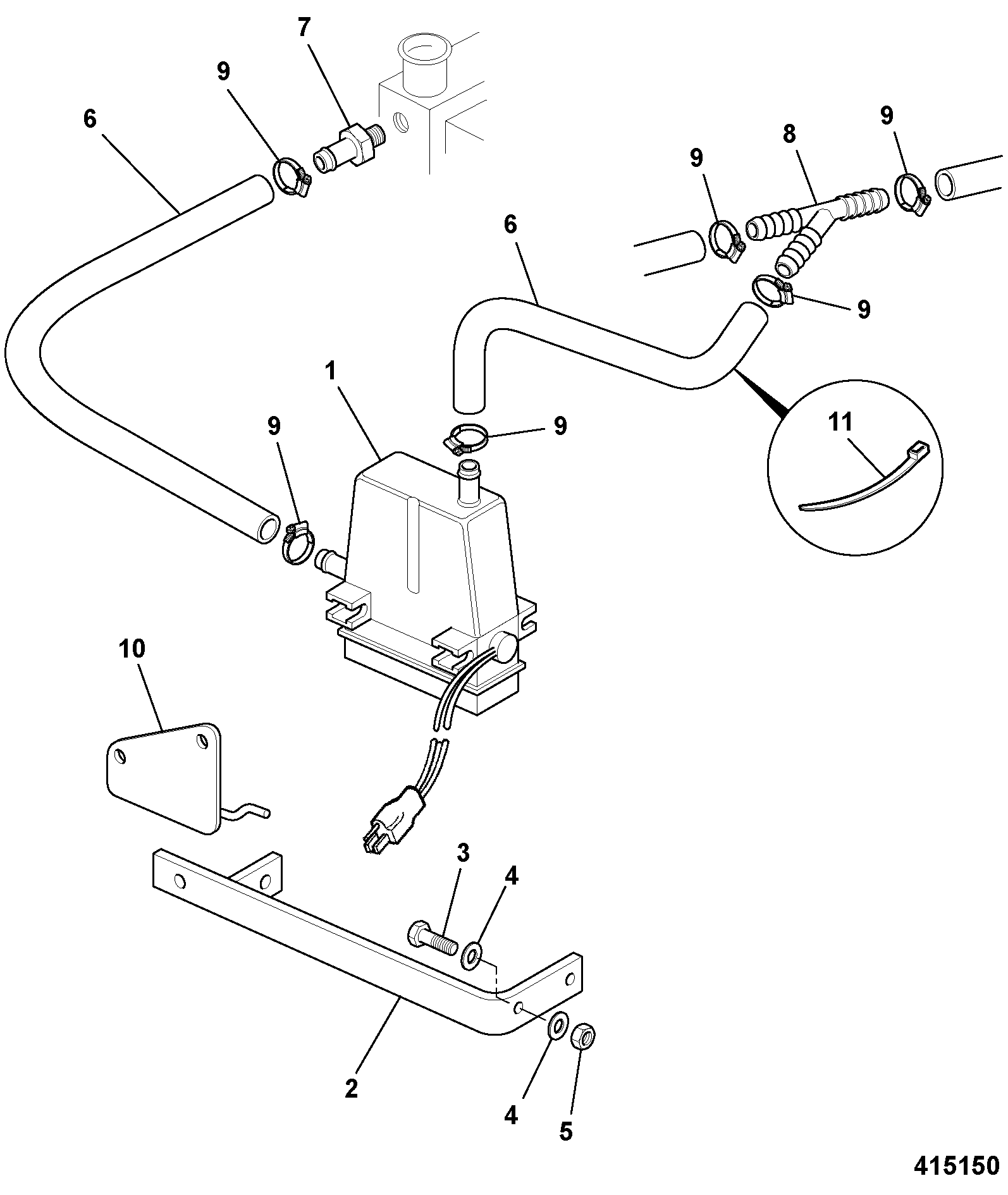

DIAG-P7-7-3-395424 P7-7-3 HEATER ENGINE BLOCK
View Diagram
