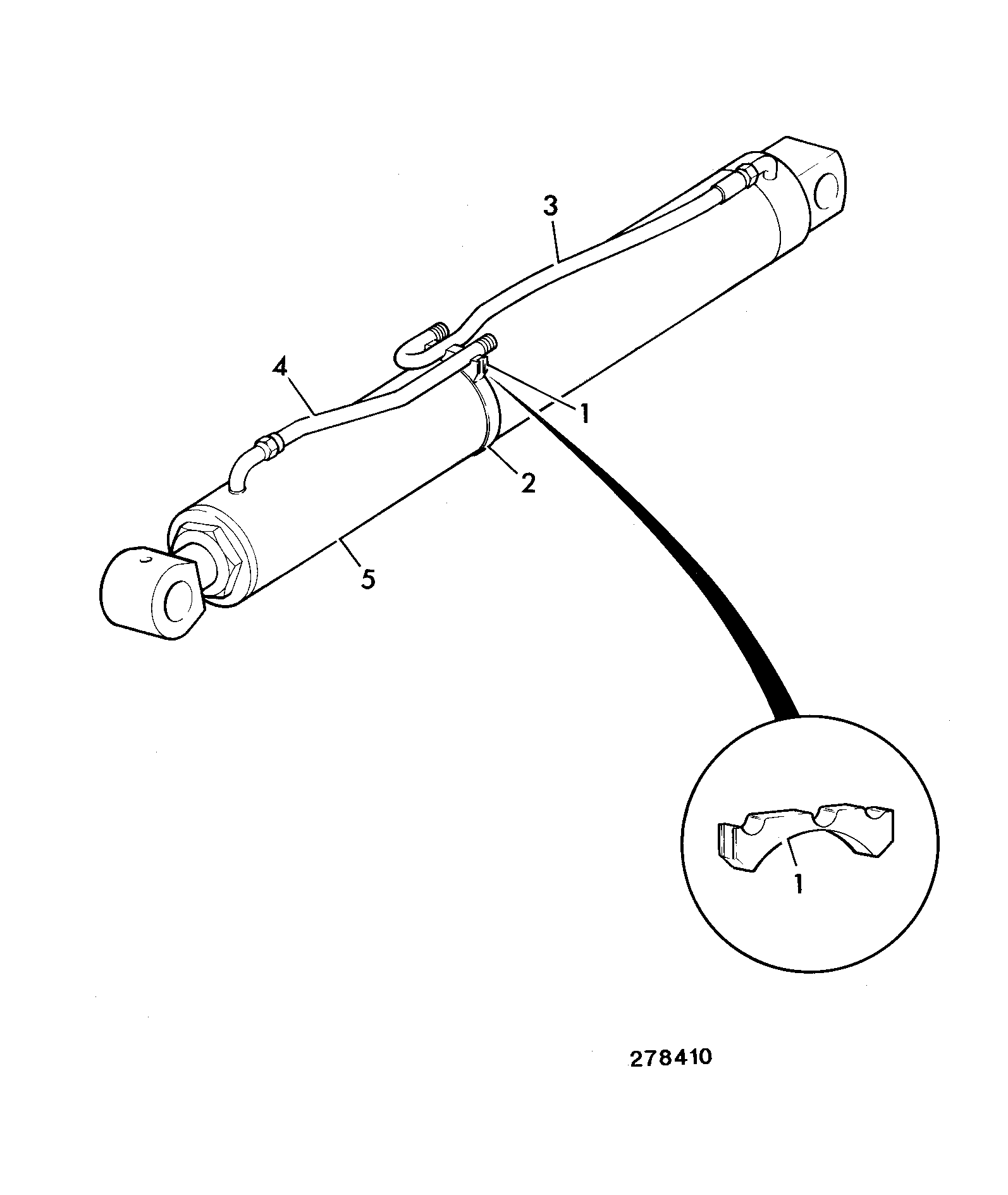

E1-27-21 BOOM RAM PIPEWORK NONE H.B.P VALVE OPTIONAL Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	CLAMP PIPE SUPPORT 123/06275	1	AVAILABLE TO ORDER	$27.36	Quantity
2	CLIP - WORMDRIVE 160/180mm 2201/0020	1	AVAILABLE TO ORDER	$20.82	Quantity
3	PIPE boom ram 656/00750 656/40285	1	AVAILABLE TO ORDER	$374.93	Quantity

Showing 1 to 3 of 3 parts

DIAG-E1-27-10-395137 E1-27-10 CIRCUIT, H.B.P VALVE BOOM RAM
View Diagram
DIAG-E1-26-21-395137 E1-26-21 DIPPER RAM PIPEWORK NONE H.B.P VALVE OPTIONAL
View Diagram
DIAG-E1-31-1-395137 E1-31-1 CIRCUIT, WAINROY CHASSIS
View Diagram
