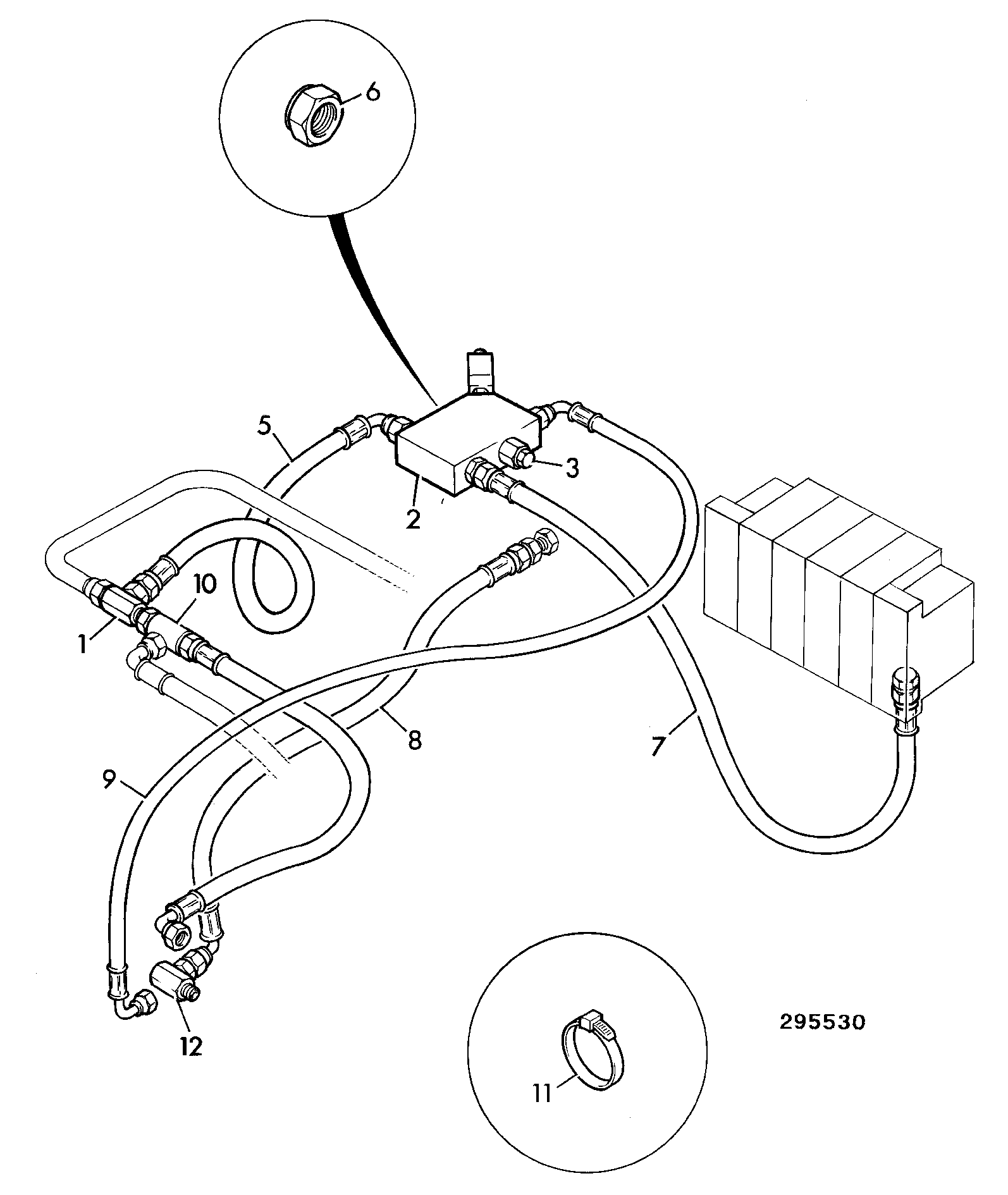

E1-27-21 BOOM RAM PIPEWORK Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	CLAMP PIPE SUPPORT 123/06275	1	AVAILABLE TO ORDER	$27.36	Quantity
2	CLIP - WORMDRIVE 40/60mm 2201/0011 2201/0010	1	AVAILABLE TO ORDER	$1.86	Quantity
3	PIPE boom ram 656/00750 656/40285	1	AVAILABLE TO ORDER	$374.93	Quantity

Showing 1 to 3 of 3 parts

DIAG-E1-27-10-395097 E1-27-10 CIRCUIT, H.B.P VALVE BOOM RAM V.FLOW PUMP
View Diagram
