Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ADAPTOR 1/4 BSP TEE-M/F/M 816/90013 | 1 | $80.41 | |||
| 2 | ADAPTOR 1/4 BSP BULKHEAD 816/90005 | 1 | $4.45 | |||
| 2 | BACK NUT 1/4 BSP 1356/0202Z | 1 | $13.54 | |||
| 2 | COUPLING QR FEMALE 1/4BSP 45/920119 | 1 | $170.50 | |||
| 3 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 4 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 5 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 5A | O-RING 2401/0505 | 1 | $2.54 | |||
| 6 | HOSE 1/4BSP 1440mm 649/51246 | 1 | $60.20 | |||
| 7 | HOSE 1/4BSP 2000mm 649/51349 | 1 | $43.80 | |||
| 9 | HOSE 1/4BSP 900mm 649/51345 | 1 | $37.56 | |||
| 10 | HOSE 1/4 BSP 980mm 649/51545 | 1 | $261.55 | |||
| 10 | HOSE 1/4BSP 980mm 332/C6403 | 1 | $164.04 | |||
| 11 | HOSE 1/4BSP 2000mm 332/C6628 | 1 | $156.83 | |||
| 11 | HOSE SERVO PILOT 649/51148 | 1 | $63.41 | |||
| 12 | HOSE 1/4BSP 2580mm 649/51452 | 1 | $120.49 | |||
| 13 | CABLE TIE - BLACK 210mm 826/01453 | 1 | $1.49 | |||
| 16 | WASHER 1/2 1417/0014Z 1417/0014D | 1 | $1.16 | |||
| 17 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 21 | BULKHEAD PLATE C/M 331/64236 | 1 | $178.45 | |||
| 22 | BULKHEAD ADAPTOR 335/07717 | 1 | $394.42 | |||
| 32 | P.U. SLEEVE 38x900mm 903/20021 | 1 | $31.96 | |||
| 33 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-

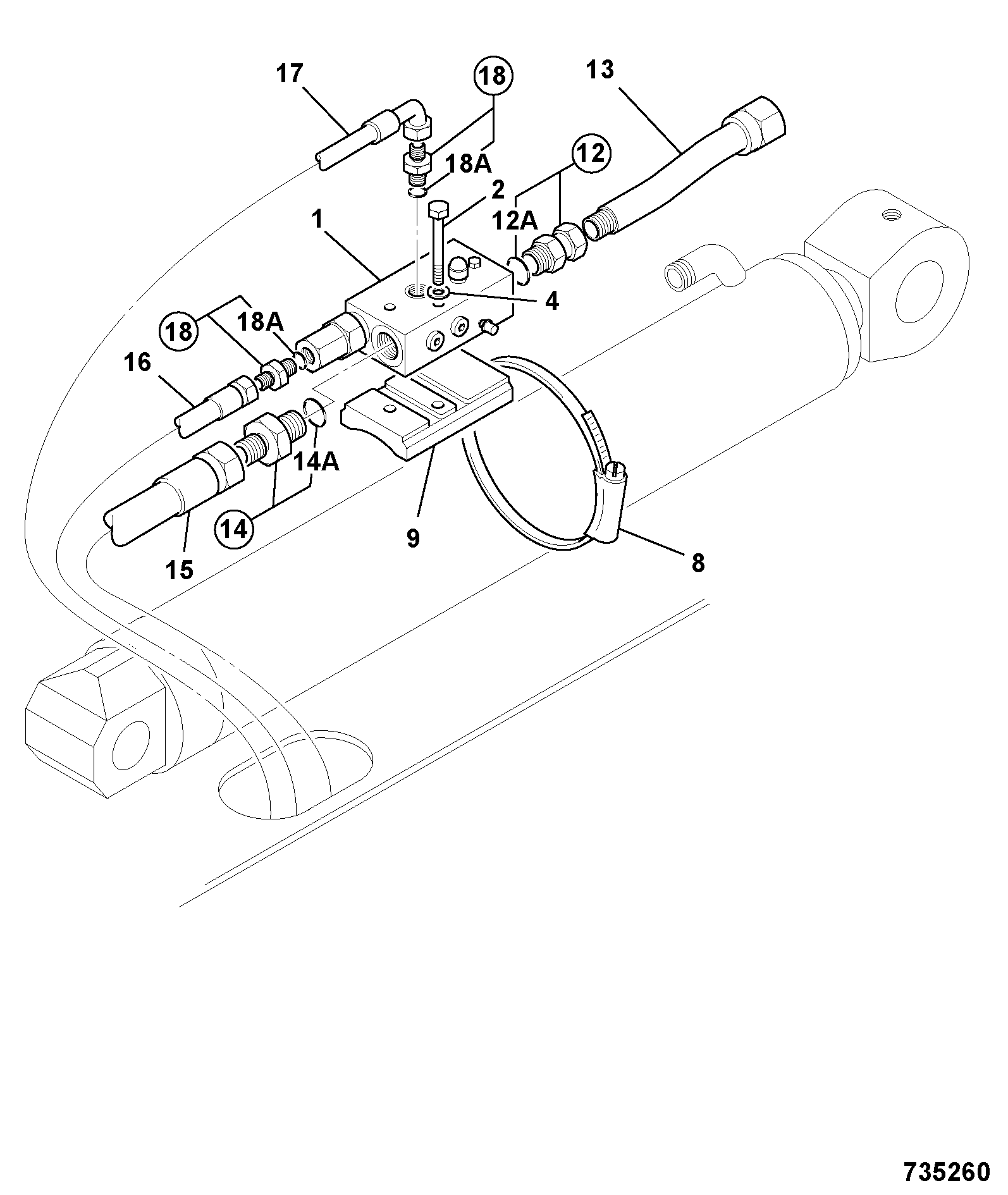

DIAG-E1-26-5-395145 E1-26-5 CIRCUIT, HBCV, PC DIPPER RAM
View Diagram -

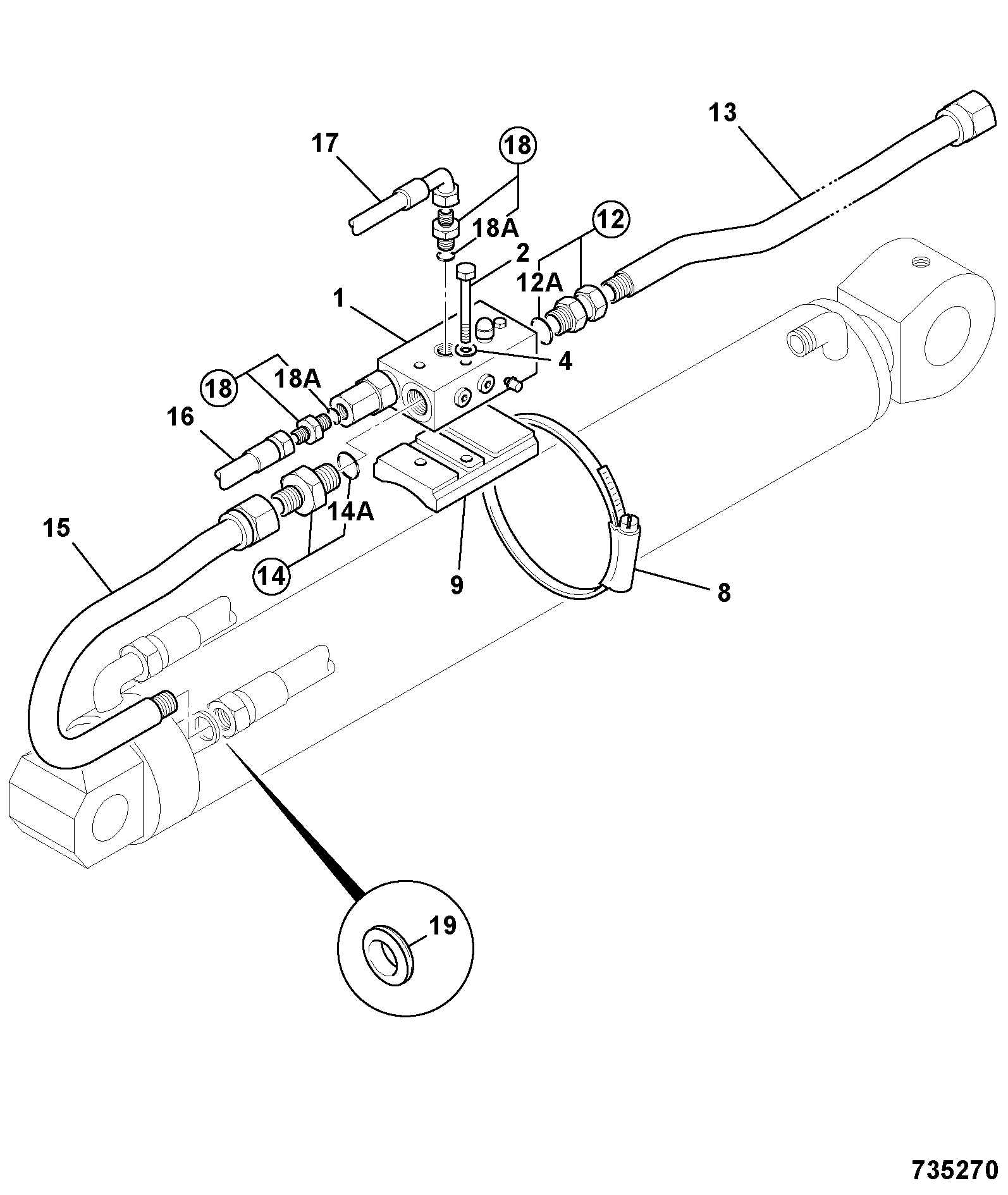

DIAG-E1-27-5-395145 E1-27-5 CIRCUIT, HBCV, PC BOOM RAM
View Diagram -
DIAG-E1-23-1-395145 E1-23-1 CIRCUIT, AUXILIARY BREAKER, 1" RETURN TO TANK, SIDESHIFT, GEAR PUMP
View Diagram
