Scroll to zoom Click a part # to view details

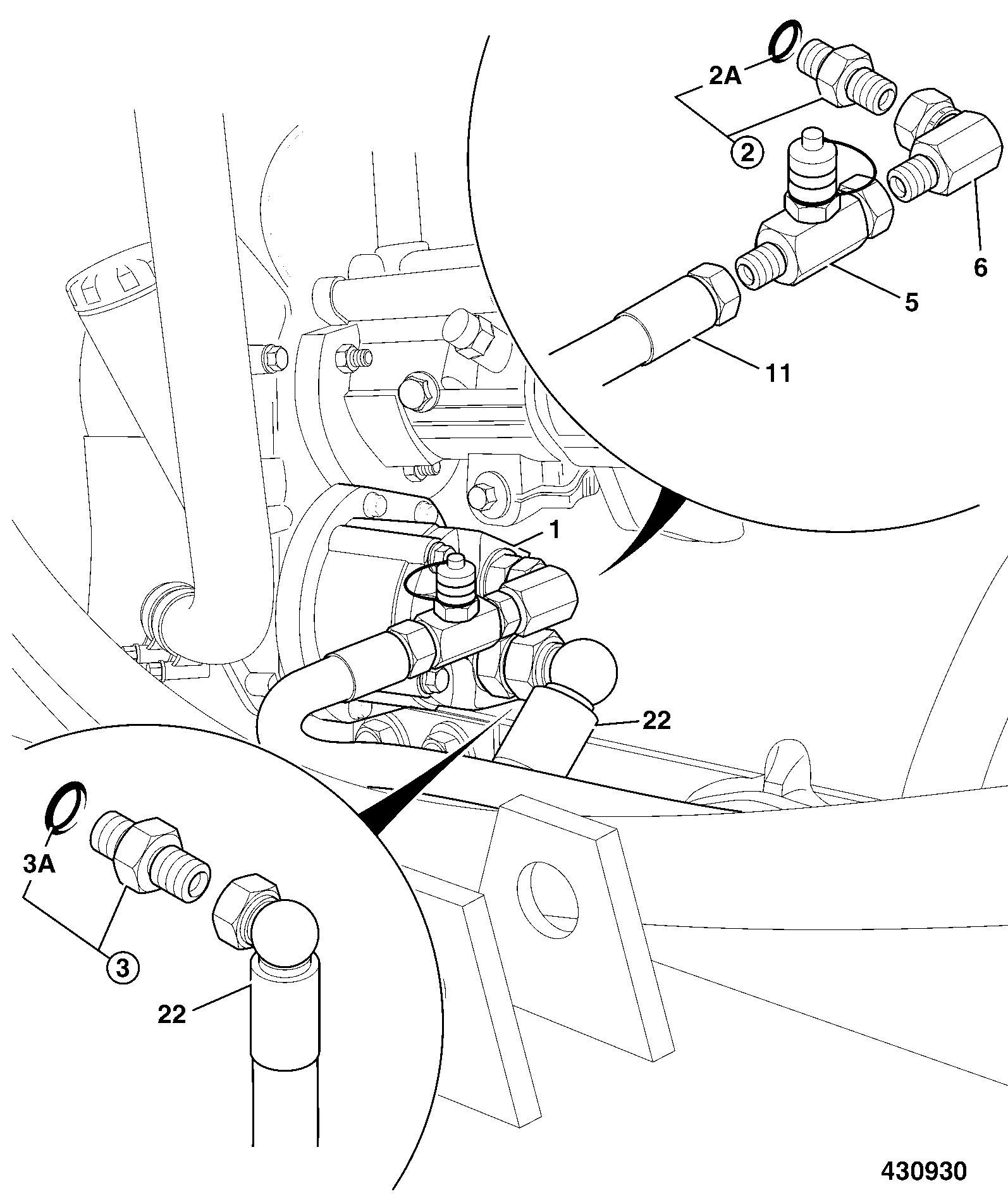

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | STEER VALVE-EMERG 928/60118 | 1 | $1,193.91 | |||
| 2 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 2A | O-RING 2401/0506 | 1 | $1.46 | |||
| 3 | ADAPTOR G3/4A X 7/8 SAE 1620/2058 | 1 | $5.52 | |||
| 3A | 'O' RING (P564) 2401/0507 | 1 | $1.46 | |||
| 5 | 'T' ADAPTOR 816/13138 | 1 | $105.01 | |||
| 6 | PRESSURE SW. MAIN PUMP 332/V4172 | 1 | $240.85 | |||
| 6A | O RING 2301/0006 | 1 | $1.89 | |||
| 6B | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | |||
| 7 | PRESSURE SW. EMERGENCY STEER 701/74400 332/V4171 | 1 | $73.77 | |||
| 8 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 8A | O RING 2401/0010 | 1 | $0.51 | |||
| 9 | Bracket mounting 335/02374 | 1 | $110.24 | |||
| 10 | BOLT M8x45 1315/3311D | 1 | $1.32 | |||
| 11 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 16 | HOSE 613/08100 | 1 | $105.93 | |||
| 20 | ADAPTOR 816/00464 | 1 | $11.19 | |||
| 33 | HOSE 1/2BSP 715mm 613/22800 | 1 | $134.47 | |||
| 34 | ADAPTOR 816/10016 | 1 | $32.60 | |||
| 37 | HOSE 04 BSP LP 570mm B 631/30600 | 1 | $66.60 | |||
| 38 | HOSE 635/11000 | 1 | $105.52 | |||
| 42 | HOSE 1/2BSP 1255mm 613/06100 | 1 | $159.84 | |||
| 43 | ADAPTOR -TEE 816/50005 | 1 | $25.86 | |||
Showing 1 to 23 of 23 parts
