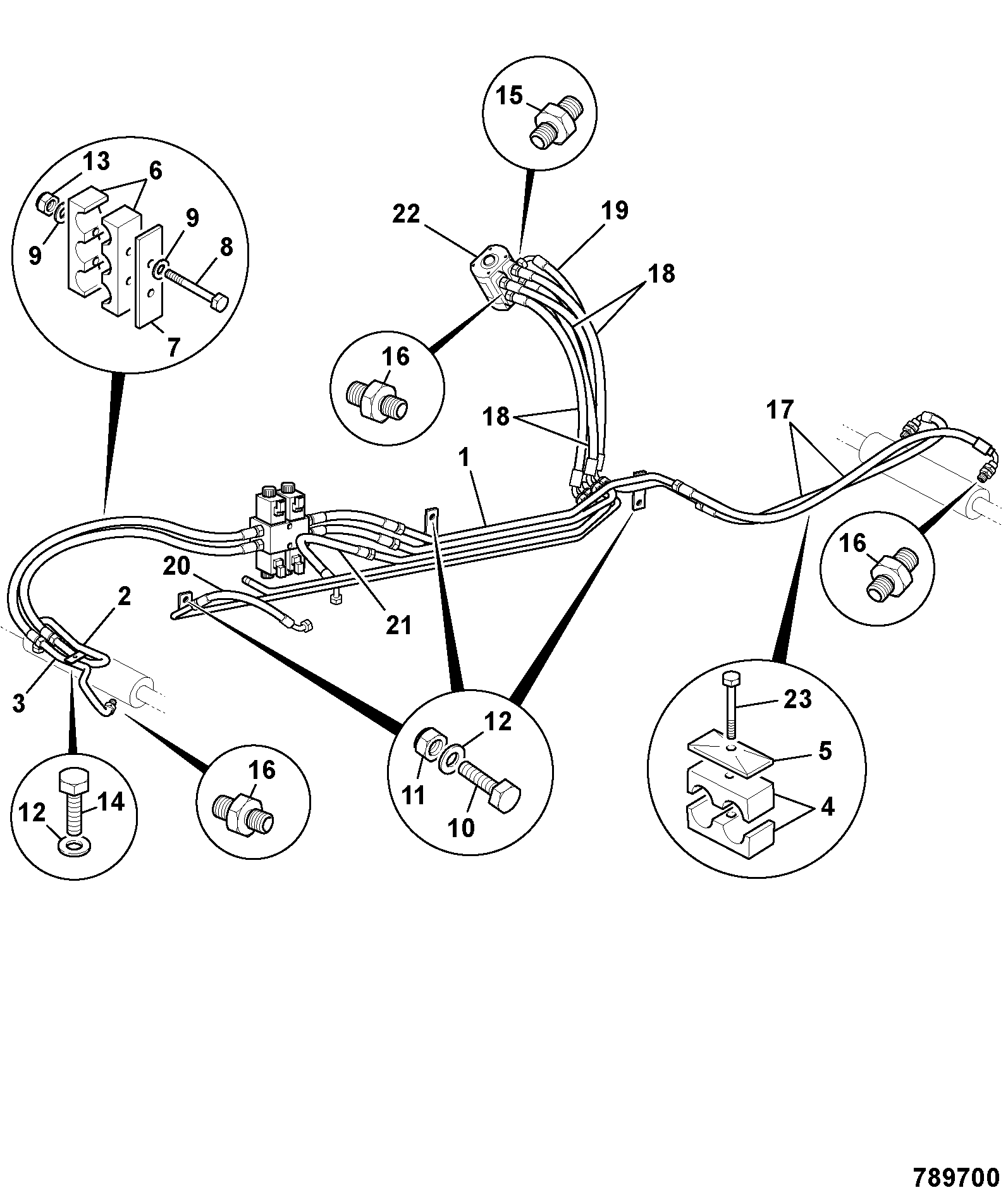

E1-2-5 CIRCUIT,LIFT END SMOOTH RIDE SYSTEM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	WA RH BOOM PIPE 335/06399 400/M8435	1	AVAILABLE TO ORDER	$718.83	Quantity
2	WA LH BOOM PIPE 335/06400 400/M7992	1	AVAILABLE TO ORDER	$651.00	Quantity
3	WA REAR PIPE 335/06401 400/N0255	1	AVAILABLE TO ORDER	$544.36	Quantity
4	WA LH LIFT PIPE 335/08580	1	AVAILABLE TO ORDER	$582.20	Quantity
5	WA RH LIFT PIPE 335/06403	1	AVAILABLE TO ORDER	$332.93	Quantity
6	ADAPTER, TEE 816/90404	1	AVAILABLE TO ORDER	$73.80	Quantity
7	ADAPTOR. G1/4A - 7/16 SAE 816/90167	1	AVAILABLE TO ORDER	$126.95	Quantity
8	SET SCREW M8x16 1315/0303Z	1	AVAILABLE TO ORDER	$2.03	Quantity
9	WASHER M_8 PLAIN 1420/0007Z 1420/0007D	1	38 IN STOCK	$0.20	Quantity
10	WASHER M_8 SPRING 1425/0007Z	1	AVAILABLE TO ORDER	$1.22	Quantity
11	SET-SCREW M_8 L-20mm 1315/0305Z	1	AVAILABLE TO ORDER	$1.25	Quantity
12	(W) SET SCREW M8x40 1315/0310Z	1	2 IN STOCK	$1.55	Quantity
13	NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z	1	AVAILABLE TO ORDER	$0.26	Quantity
14	GROMMET 2410/0212	1	AVAILABLE TO ORDER	$23.00	Quantity
15	TUBE-2.4 METRES 647/02721 647/02703	1	AVAILABLE TO ORDER	$195.62	Quantity
16	HOSE 1/2BSP 620mm 613/31900	1	AVAILABLE TO ORDER	$110.84	Quantity
17	HOSE 1/2BSP 435mm 613/34000	1	AVAILABLE TO ORDER	$75.31	Quantity
18	HOSE 36 1/2 STR/STR 613/01300	1	AVAILABLE TO ORDER	$132.81	Quantity
19	HOSE 613/21100	1	AVAILABLE TO ORDER	$98.83	Quantity
20	HOSE -08 BSP HP 1510mm B 613/28200 336/F4175	1	AVAILABLE TO ORDER	$45.86	Quantity
21	HOSE - 08 BSP HP 6230mm B 629/80119 333/D8202	1	AVAILABLE TO ORDER	$516.56	Quantity
22	HOSE 1/2BSP 300mm 613/80162	1	AVAILABLE TO ORDER	$36.41	Quantity
23	HOSE 3/8" BSP 340mm 612/80103	1	AVAILABLE TO ORDER	$64.01	Quantity
24	HOSE 3/8BSP 250mm 612/80253	1	AVAILABLE TO ORDER	$53.47	Quantity
25	HOSE 612/33600	1	AVAILABLE TO ORDER	$46.51	Quantity
26	HOSE 3/8BSP 375mm 612/80191	1	AVAILABLE TO ORDER	$66.52	Quantity
27	(W) (Pre-P)-HOSE 3/8BSP 1550mm 612/34400	1	AVAILABLE TO ORDER	$132.84	Quantity
28	HOSE 1/4BSP 1650mm 611/80109	1	AVAILABLE TO ORDER	$112.41	Quantity
29	SET SCREW M8x45 1315/0311Z	1	AVAILABLE TO ORDER	$1.52	Quantity
30	HOSE 1/2BSP 530mm 613/06000	1	AVAILABLE TO ORDER	$90.02	Quantity
31	HOSE 1/4BSP 480mm 611/80187	1	AVAILABLE TO ORDER	$81.44	Quantity

Showing 1 to 31 of 31 parts
