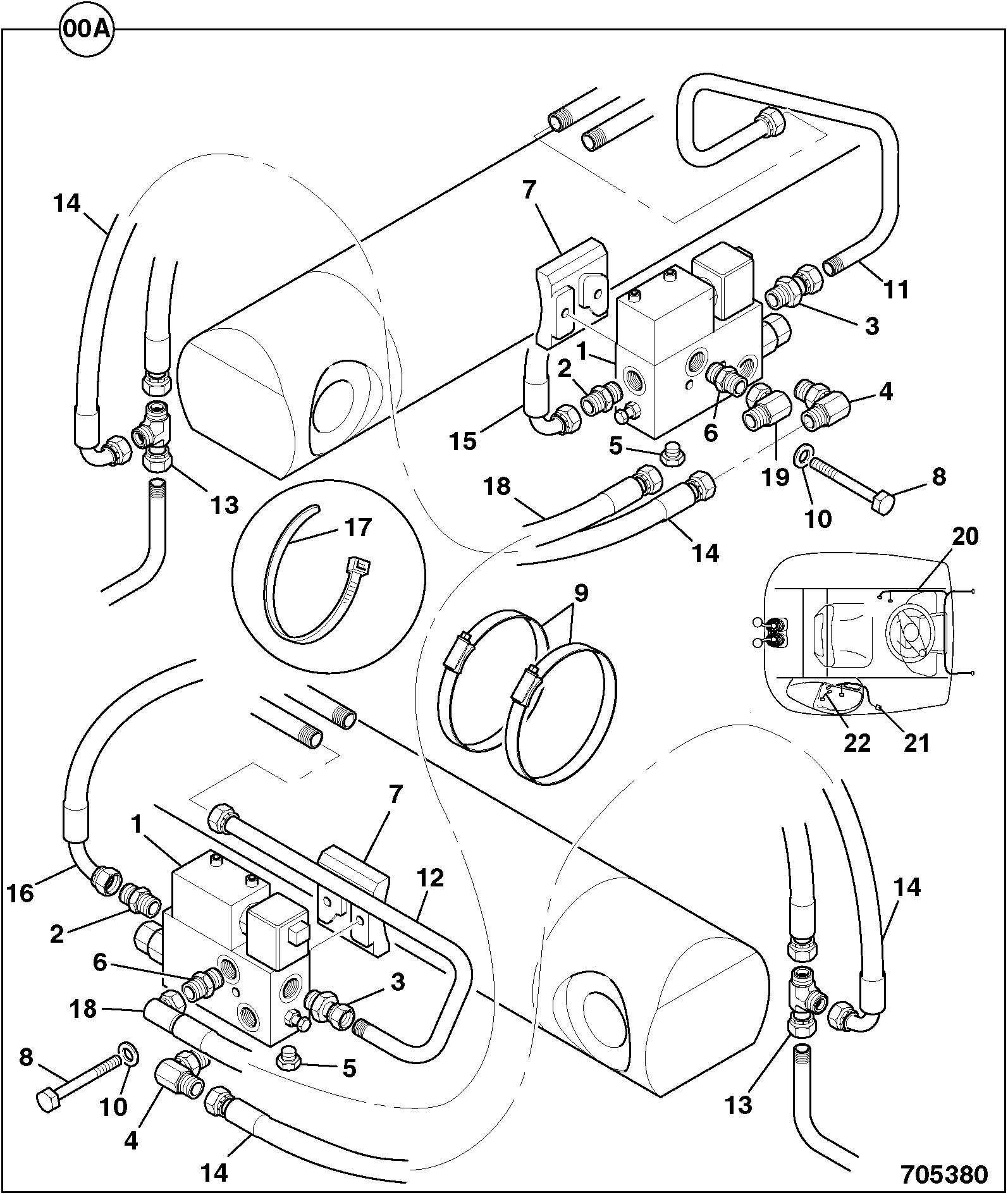

E1-2-21 CIRCUIT, LOADER ARM LIFT RAM, WITH SRS HOSE BURST PROTECTION

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	'O' RING (P564) 2401/0507	1	16 IN STOCK	$1.46	Quantity
	(W) (P) RELAY INT w/716/E0156 716/30285 332/C3148	1	AVAILABLE TO ORDER	$55.77	Quantity
	Auto Blade Fuse 10A 716/05705	1	AVAILABLE TO ORDER	$0.00	Quantity
	CABLE TIE - BLACK 210mm 826/01453	1	AVAILABLE TO ORDER	$1.49	Quantity
	COIL 25/223556 717/20137	1	AVAILABLE TO ORDER	$50.77	Quantity
	LABEL fusebox 817/19199	1	AVAILABLE TO ORDER	$13.16	Quantity
	O-RING 2401/0503	1	3 IN STOCK	$0.54	Quantity
	PANEL SWITCH HI FLOW 701/60081	1	AVAILABLE TO ORDER	$22.67	Quantity
1	HOSE BURST CHECK VALVE 25/221190	1	AVAILABLE TO ORDER	$1,197.47	Quantity
2	ADAPTOR (M/M) 816/17071 816/90152	1	AVAILABLE TO ORDER	$9.04	Quantity
3	ADAPTOR 7/8SAE x G3/8 816/27019 816/90363	1	AVAILABLE TO ORDER	$105.35	Quantity
4	ELBOW ADAPTOR M/M 816/90459	1	AVAILABLE TO ORDER	$6.74	Quantity
5	PLUG - 7/16"UNF 1745/0001 816/90534	1	1 IN STOCK	$49.89	Quantity
6	RESTRICTOR 816/91037	1	AVAILABLE TO ORDER	$7.93	Quantity
7	Saddle Clamp 821/10217	1	AVAILABLE TO ORDER	$59.09	Quantity
8	(W) (Pre-P)-BOLT M8x55 1315/3313Z	1	AVAILABLE TO ORDER	$2.47	Quantity
9	CLIP - WORMDRIVE 90/110mm(KANBAN) 2201/0016	1	AVAILABLE TO ORDER	$0.00	Quantity
10	WASHER M_8 PLAIN 1420/0007Z 1420/0007D	1	38 IN STOCK	$0.00	Quantity
11	HBCV PIPE lift ram 335/04426	1	AVAILABLE TO ORDER	$165.58	Quantity
12	HBCV PIPE lift ram 655/50048	1	AVAILABLE TO ORDER	$287.34	Quantity
13	ADAPTER TEE M/F/M (R) 816/90079	1	AVAILABLE TO ORDER	$90.60	Quantity
14	HOSE 1/4" BSP 650mm 611/26500	1	AVAILABLE TO ORDER	$80.29	Quantity
15	HOSE 3/8BSP 570mm 612/21100	1	AVAILABLE TO ORDER	$80.36	Quantity
16	HOSE -06 BSP HP 630 mm B 612/35200	1	AVAILABLE TO ORDER	$87.89	Quantity
17	CABLE TIE - BLACK 200mm 826/01144	1	AVAILABLE TO ORDER	$0.20	Quantity
18	HOSE 1/4BSP 2070mm 611/20600	1	AVAILABLE TO ORDER	$75.05	Quantity
19	ELBOW ADAPTOR 1/4BSP (P493) 816/90004	1	AVAILABLE TO ORDER	$35.04	Quantity
20	HARNESS - HBCV MAINFRAME 721/11185	1	AVAILABLE TO ORDER	$197.48	Quantity
21	HARNESS - HBCV PANEL 721/11186	1	AVAILABLE TO ORDER	$273.96	Quantity
22	HARNESS - SWITCH LINK 721/11187	1	AVAILABLE TO ORDER	$151.57	Quantity
A	(Z) H.B.C.V. KIT (+SRS LIFT) 980/89509	1	AVAILABLE TO ORDER	$4,487.61	Quantity

Showing 1 to 31 of 31 parts

DIAG-E1-2-21-395097-11177643 E1-2-21 CIRCUIT, LOADER ARM LIFT RAM, WITH SRS HOSE BURST PROTECTION
View Diagram
DIAG-E1-2-11-395097 E1-2-11 CIRCUIT, LOADER ARM LIFT RAM, NO SRS HOSE BURST PROTECTION
View Diagram

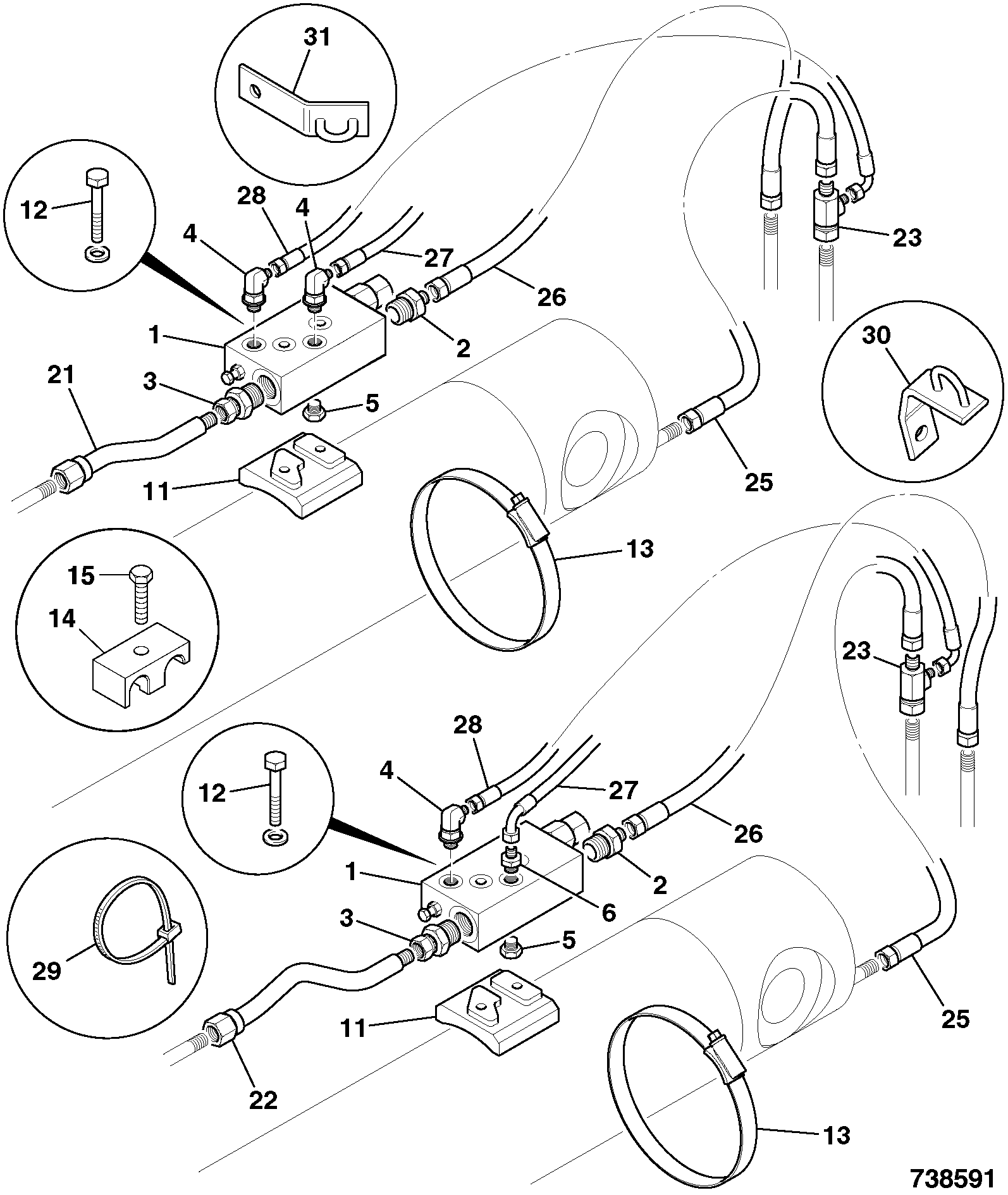

DIAG-E1-2-31-395097 E1-2-31 CIRCUIT, LOADER ARM SHOVEL RAM HOSE BURST PROTECTION
