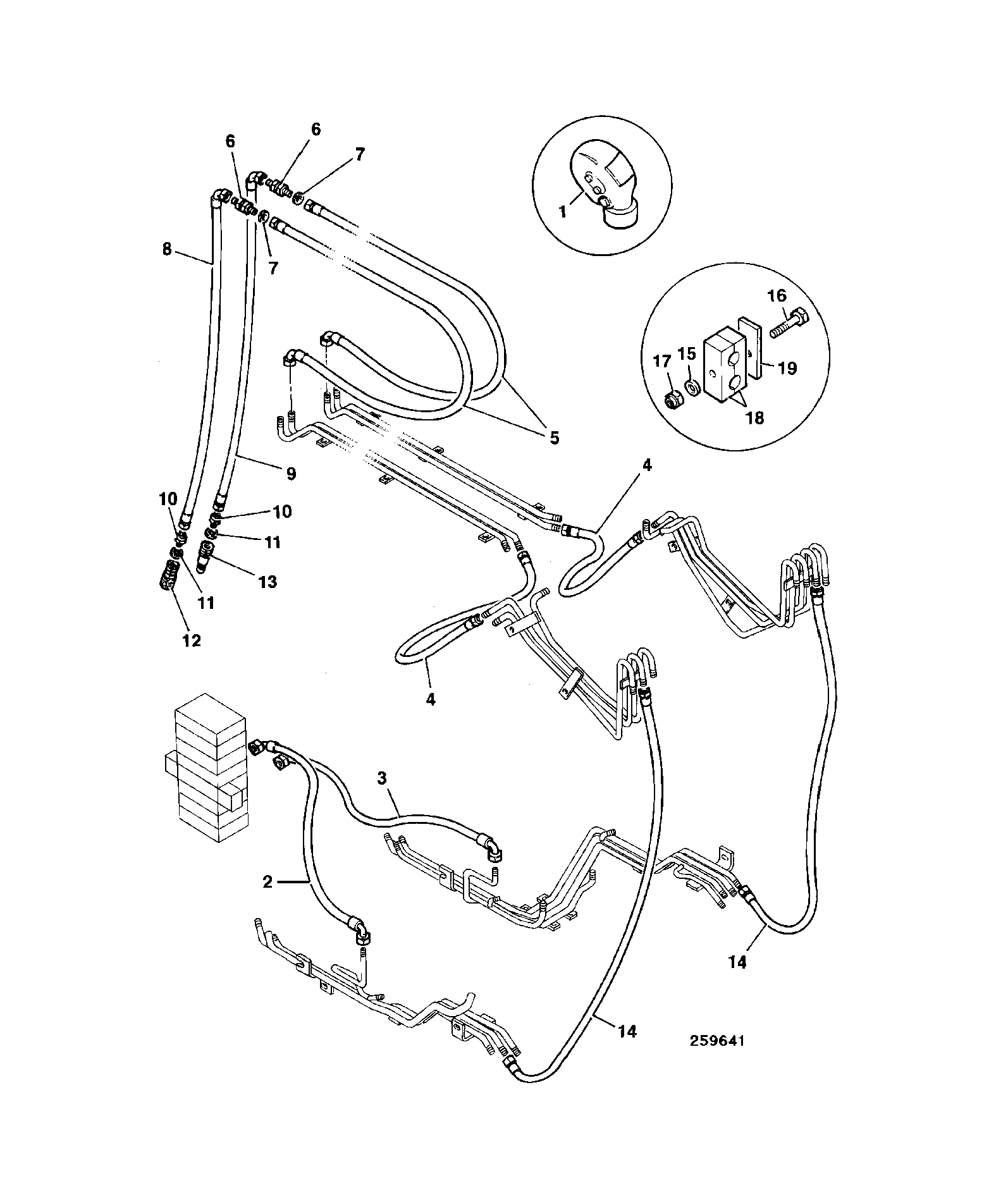

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 5 | ADAPTOR 3/8BSPX3/8BSPX3/8 (P564) 816/90040 | 1 | $119.12 | |||
| 6 | WA CROSS YOKE BTM LAYER 335/04377 | 1 | $2,236.04 | |||
| 7 | WA CROSS YOKE PIPE 335/04124 | 1 | $434.52 | |||
| 8 | WA PIPE - TOP R.H. BOOM 400/M7913 | 1 | $625.55 | |||
| 9 | WA PIPE - TOP L.H. BOOM 400/M7955 | 1 | $669.59 | |||
| 10 | ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $4.44 | |||
| 11 | WA PIPE BOTTOM LH 400/M8449 | 1 | $787.57 | |||
| 12 | WA PIPE BOTTOM RH 400/M8447 | 1 | $619.44 | |||
| 13 | HOSE 5/8BSP 9760mm 629/80108 | 1 | $868.73 | |||
| 14 | HOSE 41 5/8 STR/STR 614/00600 | 1 | $235.17 | |||
| 15 | HOSE 3/8" BSP 380mm 612/31700 | 1 | $75.71 | |||
| 16 | HOSE 612/42600 | 1 | $72.20 | |||
| 19 | HOSE 614/25200 | 1 | $59.95 | |||
| 20 | HOSE 5/8 ST/90-15 LONG 614/23400 | 1 | $57.24 | |||
| 21 | HOSE 5/8BSP 670mm 614/03400 | 1 | $159.47 | |||
| 22 | HOSE 5/8BSP 320mm 614/27000 | 1 | $53.90 | |||
| 23 | PLATE 162/02109 | 1 | $18.97 | |||
| 24 | BOLT M8x75 1315/3317Z | 1 | $3.61 | |||
| 25 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $6.63 | |||
| 26 | (W) WASHER 5/16 MED PLAIN 1411/0002Z | 1 | $0.18 | |||
| 27 | (W) SET SCREW M8x40 1315/0310Z | 1 | $0.00 | |||
| 28 | HOSE 5/8BSP 1150mm 614/22200 | 1 | $83.10 | |||
| 29 | HOSE 5/8BSP 450mm 614/20200 | 1 | $146.76 | |||
| 30 | TEE ADAPTOR M/F/F (P710-T) 816/90413 | 1 | $14.46 | |||
| 33 | HOSE 5/8BSP 4650mm 614/80077 | 1 | $482.62 | |||
| 34 | WA FEED PIPE FRONT 335/08251 | 1 | $615.62 | |||
| 35 | HOSE -4 BSP 400mm 611/20800 336/F4266 | 1 | $22.31 | |||
| 36 | WASHER BONDED 1/8"BSP(KANBAN) 1406/0008 | 1 | $0.00 | |||
| 37 | ADAPTOR. G1/4A - 7/16 SAE 816/90167 | 1 | $126.95 | |||
| 38 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $0.37 | |||
| 39 | SET SCREW M8x16 1315/0303Z | 1 | $2.03 | |||
| 40 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $0.48 | |||
| 41 | ADAPTOR - TEE 816/90507 | 1 | $23.93 | |||
| 42 | HOSE 5/8BSP 670mm 614/25100 | 1 | $99.32 | |||
| 43 | COUPLING QR MALE 10 -8SAE 45/920050 | 1 | $103.37 | |||
| 44 | WASHER BONDED 3/8" BSP(KANBAN) 1406/0015 | 1 | $1.52 | |||
| 45 | HOSE 614/24300 | 1 | $63.83 | |||
Showing 1 to 37 of 37 parts
