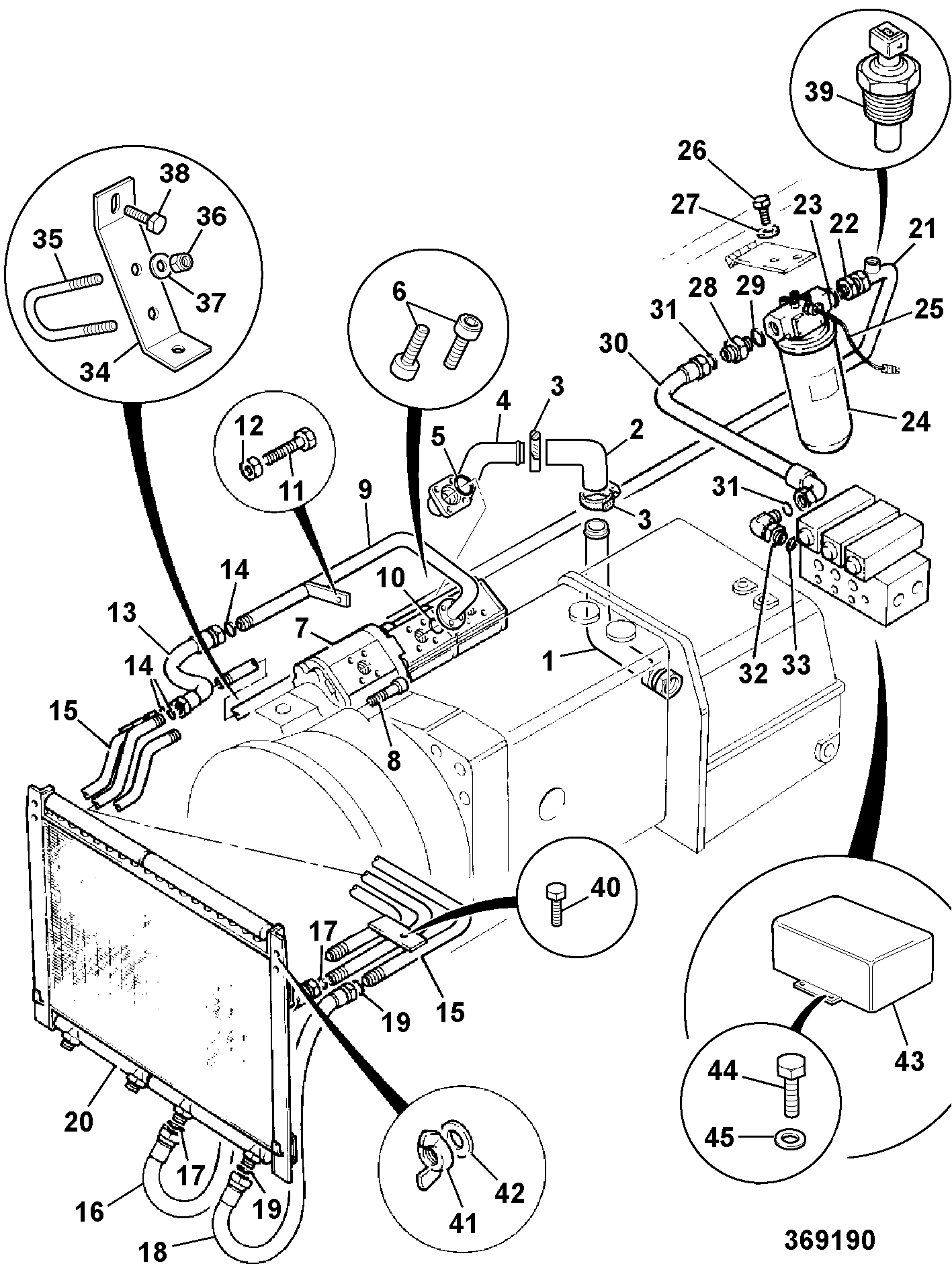

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BACKNUT 1/2 BSP 1356/0004Z | 1 | $25.21 | ||||
| O RING 477/00799 | 1 | $5.75 | ||||
| 2 | PIPE: MAIN TRANS LUBE 1/2 BSP 830/10726 | 1 | $418.96 | |||
| 3 | ADAPTOR 477/00391 | 1 | $16.31 | |||
| 5 | HOSE -04 BSP HP 500mm C 611/30300 31AG/CN050 | 1 | $65.06 | |||
| 7 | ADAPTER, EXTENDED 1.00mm RESTRICTOR 816/13296 | 1 | $9.15 | |||
| 9 | Hose 1/4X260 631/80003 | 1 | $26.43 | |||
| 10 | O-RING 828/00237 | 1 | $0.20 | |||
| 11 | ADAPTER 477/00404 | 1 | $37.62 | |||
| 12 | WASHER 1406/0018 | 1 | $4.09 | |||
| 13 | PIN 826/01259 | 1 | $3.97 | |||
| 14 | HOSE 477/00347 | 1 | $30.23 | |||
| 16 | ADAPTOR 477/00411 | 1 | $11.96 | |||
| 16 | ADAPTOR: 3/8 1/4 1.5 REST 816/13407 | 1 | $111.46 | |||
| 17 | WASHER BONDED 3/8" BSP(KANBAN) 1406/0015 | 1 | $1.52 | |||
| 18 | Hose 3/8x300 632/10400 | 1 | $21.74 | |||
| 19 | O RING 2301/0006 | 1 | $1.89 | |||
| 20 | PIPE 478/00829 | 1 | $48.31 | |||
| 21 | ADAPTOR 477/00403 | 1 | $69.85 | |||
| 23 | PIPE LUBRICATION F 830/10883 | 1 | $181.36 | |||
| 23 | PIPE:LESS FRNT PTO LUBE 481/00615 | 1 | $799.24 | |||
| 24 | HOSE 478/00645 | 1 | $34.49 | |||
| 30 | HOSE 477/00352 | 1 | $83.48 | |||
| 31 | O RING 2401/0010 | 1 | $0.51 | |||
| 34A | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 35 | O-RING 2401/0506 | 1 | $1.46 | |||
| 36 | PIPE:SPLITTER PRESURE 481/00600 | 1 | $138.35 | |||
| 39 | HOSE: 5/8 BSP 90-0 614/80105 | 1 | $53.62 | |||
| 40 | O RING 5/8" BSP 2301/0011 | 1 | $0.09 | |||
| 41 | ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $12.58 | |||
| 43 | ADAPTOR 5/8BSP X 3/4BSP 1606/0011 | 1 | $128.42 | |||
| 44 | WASHER BONDED 1" BSP 1406/0021 | 1 | $6.00 | |||
| 45 | PRESSURE TEST ADAPTOR 45/904200 | 1 | $25.74 | |||
| 46 | KIT-SEAL 45/904201 | 1 | $57.73 | |||
| 47 | Pipe trans/breathe 830/10808 | 1 | $184.72 | |||
| 48 | ELBOW 3/4"BSPM 1 816/13272 | 1 | $40.61 | |||
| 49 | ADAPTOR 816/20014 | 1 | $12.24 | |||
| 50 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 51 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 52 | PIPE:LUBE RANGE BOX 830/10702 | 1 | $241.84 | |||
| 53 | HYD HOSE 1/4X370 631/80006 336/F4224 | 1 | $24.92 | |||
| 55 | 'ADAPTER, 1/4" BSP x 1/4" BSPF RESTRICTE 816/13218 | 1 | $24.60 | |||
| 56 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | |||
| 57 | Pipe pto idler 830/10657 | 1 | $261.13 | |||
| 59 | ADAPTOR 1612/0003 1612/2051 | 1 | $24.49 | |||
| 60 | HOSE 1/4" BSP X 31 631/32500 | 1 | $37.62 | |||
| 63 | Hose 1/2" x 445mm 633/80001 | 1 | $42.89 | |||
| 64 | O RING 1/2 BSP 2301/0010 | 1 | $0.23 | |||
| 67 | SET SCREW M8x35(KANBAN) 1315/0309Z | 1 | $2.57 | |||
| 67A | SET SCREW M8x45 1315/0311Z | 1 | $1.52 | |||
| 68 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 69 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 70 | O-RING 2401/0505 | 1 | $2.54 | |||
| 71 | HYDRAULIC HOSE 632/80001 | 1 | $32.26 | |||
| 73 | ADAPTOR G1/4A M/M 1604/0002 | 1 | $29.81 | |||
| 74 | Hose 1/2"BSP x 630 613/80028 | 1 | $42.72 | |||
| 76 | Hose 1/4"BSP X 600 631/80007 | 1 | $32.00 | |||
| 77A | ADAPTOR/RESTRICTOR 816/10169 | 1 | $11.32 | |||
| 78 | Hose 1/4"BSP X 475 631/80008 | 1 | $30.44 | |||
| 78A | ADAPTOR - LUBRICATION 816/13188 | 1 | $191.33 | |||
| 80 | (P) ADAPTOR G1/2A X G1/2 1612/0004 1612/2052 | 1 | $76.32 | |||
| 81 | Hose 1/2"BSP 610mm 613/80031 | 1 | $42.43 | |||
| 83 | PIPE 830/10683 | 1 | $233.53 | |||
| 83 | Pipe clutch actuat 830/10913 | 1 | $127.05 | |||
| 84 | ACCUMULATOR 456/00107 | 1 | $542.66 | |||
| 89 | HOSE 648/22201 | 1 | $50.01 | |||
| 90 | ADAPTOR 816/60288 | 1 | $6.11 | |||
| 91 | BREATHER 476/31301 | 1 | $57.43 | |||
| 92 | WASHER M16 PLAIN 1420/0011Z | 1 | $3.08 | |||
| 93 | ELBOW ADAPTOR 816/40006 | 1 | $23.97 | |||
| 94 | COUPLING 3/8BSP 893/90220 | 1 | $36.61 | |||
| 95 | BREATHER HOSE. 648/21203 | 1 | $17.91 | |||
| 97 | ADAPTOR G1/2A-G3/8A 1606/0007 | 1 | $10.12 | |||
| 98 | HOSE 632/80002 | 1 | $32.33 | |||
Showing 1 to 74 of 74 parts
Related Assemblies
-
DIAG-E1-2-1-393531 E1-2-1 CIRCUIT TRANSMISSION COOLING, 2WS
View Diagram -
DIAG-E1-2-11-393531 E1-2-11 CIRCUIT TRANSMISSION COOLING, 4WS
View Diagram -
DIAG-E1-1-11-393531 E1-1-11 CIRCUIT, NEUTRAL 4WS
View Diagram
