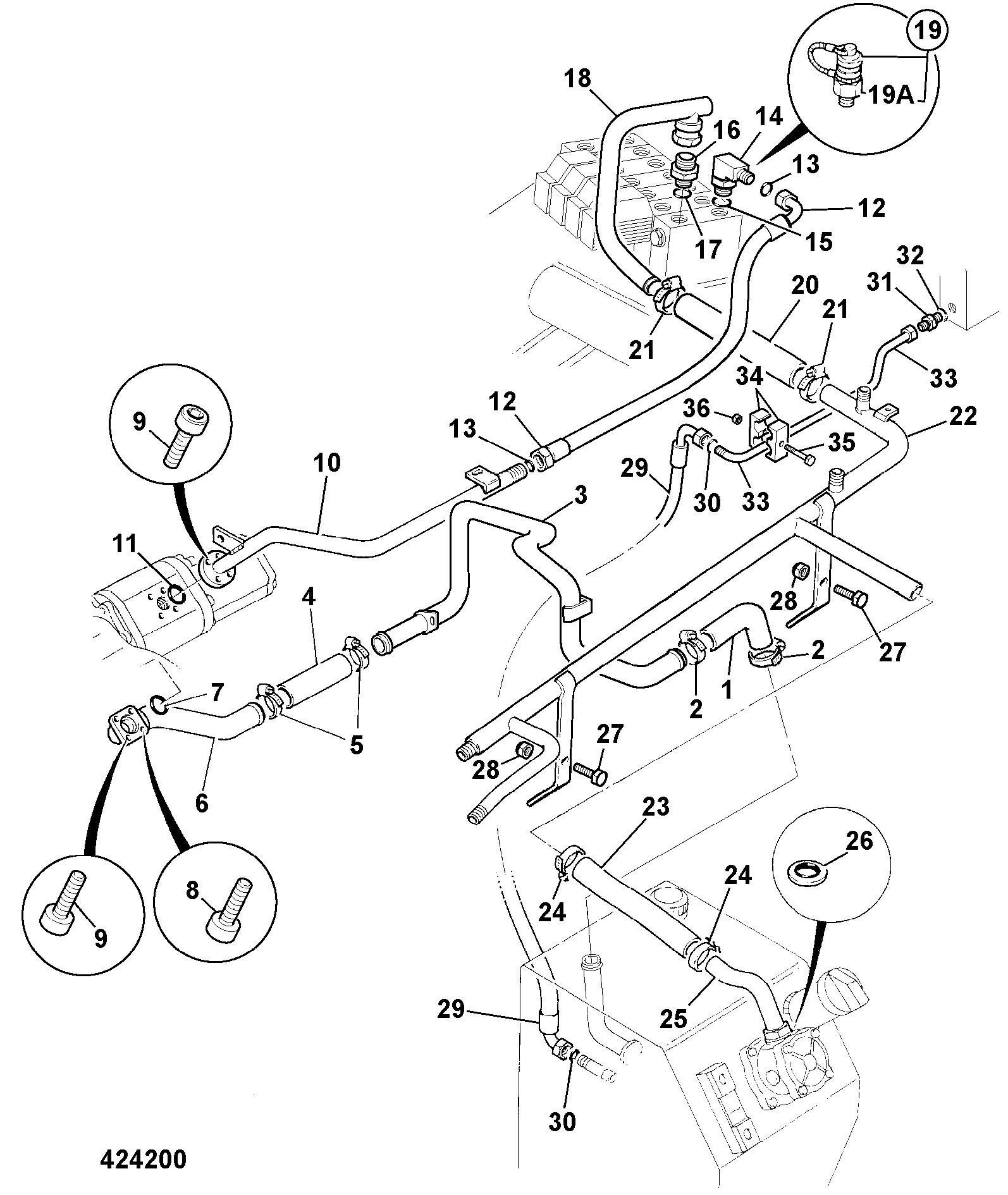

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Pipe 830/11067 | 1 | $1,038.16 | ||||
| 1 | PIPE SUCTION TRANS 830/10817 | 1 | $184.14 | |||
| 2 | SUCTION HOSE 250MM 648/00709 | 1 | $33.70 | |||
| 3 | CLIP - WORMDRIVE 35/50mm(KANBAN). 2201/0009 | 1 | $3.89 | |||
| 6 | CAP-SCREW M_8 L-_25mm 1391/3307D | 1 | $3.61 | |||
| 7 | PUMP 20/919000 | 1 | $3,702.83 | |||
| 8 | CAP SCREW M12x45 1391/3511D | 1 | $6.02 | |||
| 9 | PIPE 830/10793 | 1 | $156.20 | |||
| 10 | O RING 828/00347 | 1 | $3.89 | |||
| 11 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 12 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 13 | HOSE 477/00357 | 1 | $117.80 | |||
| 14 | O RING 5/8" BSP 2301/0011 | 1 | $0.09 | |||
| 15 | Pipe trans/oil coo 830/11252 | 1 | $205.59 | |||
| 16 | HOSE 477/00354 | 1 | $48.73 | |||
| 18A | Catch 331/32427 | 1 | $109.79 | |||
| 18B | Catch oil cooler r 331/32428 | 1 | $81.13 | |||
| 18C | POP RIVET 826/01345 | 1 | $2.08 | |||
| 19 | PIPE:COOLER TO FILTER 481/00618 | 1 | $128.75 | |||
| 20 | ADAPTOR 477/00386 | 1 | $33.17 | |||
| 21 | O-RING 2401/0508 | 1 | $3.28 | |||
| 22 | FILTER 32/910600 | 1 | $604.62 | |||
| 23 | Harness link, 2 wa 332/R6662 721/11260 | 1 | $72.60 | |||
| 24 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 25 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 26 | ADAPTOR G5/8A-1-1/16UNF(M) 1620/0008 1620/2057 | 1 | $25.23 | |||
| 28 | HOSE 477/00355 | 1 | $49.69 | |||
| 30 | ELBOW ADAPTOR M/M 816/90461 | 1 | $20.76 | |||
| 31 | O RING 2401/0605 | 1 | $0.65 | |||
| 32 | Bracket 477/00413 | 1 | $17.21 | |||
| 33 | Bolt U Bolt M6 x 2 826/10797 | 1 | $3.46 | |||
| 34 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 35 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 36 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 37 | Water Temperature Sender 716/30128 | 1 | $97.20 | |||
| 38 | Bracket filter 331/28698 | 1 | $381.86 | |||
| 39 | SET-SCREW M12 L-_35mm 1315/0509D | 1 | $1.67 | |||
| 40 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 41 | Nut M12 STD SELF LOCK 1370/0403D | 1 | $1.01 | |||
| 42 | COVER - TRANSMISSION SOLE 331/34503 | 1 | $43.54 | |||
| 43 | SET-SCREW 1315/0101D | 1 | $5.00 | |||
| 44 | WASHER 15MM OD X 5.5 ID 823/00473 | 1 | $0.95 | |||
Showing 1 to 42 of 42 parts
Related Assemblies
-
DIAG-E1-1-2-393579 E1-1-2 CIRCUIT, NEUTRAL PLUS BUILDS
View Diagram -
E1-2-2 CIRCUIT TRANSMISSION
View Diagram -
DIAG-E1-1-1-393579 E1-1-1 CIRCUIT, NEUTRAL STANDARD
View Diagram
