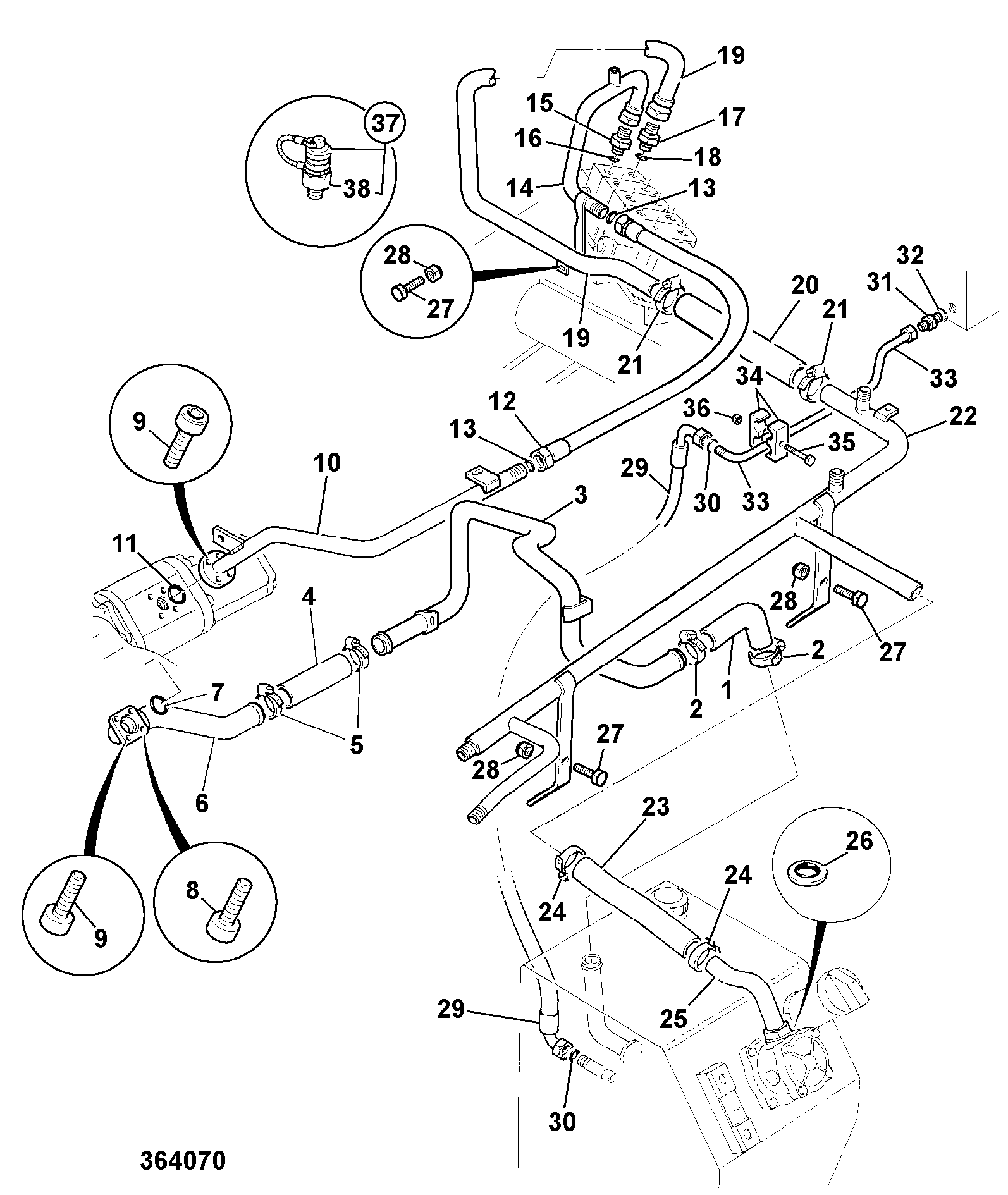

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PIPE SUCTION TRANS 830/10817 | 1 | $184.14 | |||
| 2 | SUCTION HOSE 250MM 648/00709 | 1 | $33.70 | |||
| 3 | CLIP - WORMDRIVE 35/50mm(KANBAN). 2201/0009 | 1 | $3.89 | |||
| 6 | CAP SCREW M8 x 25 G12.9 1391/3307Z | 1 | $1.73 | |||
| 8 | CAP SCREW M12x45 1391/3511Z | 1 | $2.03 | |||
| 9 | PIPE 830/10793 | 1 | $156.20 | |||
| 10 | O RING 828/00347 | 1 | $3.89 | |||
| 11 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 12 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 13 | HOSE 477/00357 | 1 | $117.80 | |||
| 14 | O RING 5/8" BSP 2301/0011 | 1 | $0.09 | |||
| 15 | Pipe assembly, coo 478/01772 | 1 | $798.50 | |||
| 16 | HOSE 477/00353 | 1 | $52.33 | |||
| 18 | Hose 5/8", length 634/31900 | 1 | $47.30 | |||
| 20 | COOLER OIL 30/205300 | 1 | $1,804.07 | |||
| 21 | PIPE:OIL COOLER TO FILTER 478/02334 | 1 | $1,081.10 | |||
| 22 | ADAPTOR 477/00386 | 1 | $33.17 | |||
| 23 | O-RING 2401/0508 | 1 | $3.28 | |||
| 24 | FILTER 32/910600 | 1 | $604.62 | |||
| 25 | INDICATOR 32/910630 | 1 | $125.95 | |||
| 26 | SET SCREW M10x20 1315/0405Z | 1 | $4.23 | |||
| 27 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 28 | ADAPTOR G5/8A-1-1/16UNF(M) 1620/0008 1620/2057 | 1 | $25.23 | |||
| 30 | HOSE 477/00355 | 1 | $49.69 | |||
| 32 | ELBOW ADAPTOR M/M 816/90461 | 1 | $20.76 | |||
| 33 | O RING 2401/0605 | 1 | $0.65 | |||
| 34 | Bracket 477/00413 | 1 | $17.21 | |||
| 35 | Bolt "U" 477/00414 | 1 | $8.98 | |||
| 35 | Bolt U Bolt M6 x 2 826/10797 | 1 | $3.46 | |||
| 36 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 37 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 38 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 39 | WATER TEMP SENDER 716/28800 | 1 | $58.81 | |||
| 39 | Water Temperature Sender 716/30128 | 1 | $97.20 | |||
| 40 | (W) SET SCREW M8x40 1315/0310Z | 1 | $1.55 | |||
| 41 | WING-NUT M6 826/01115 | 1 | $1.52 | |||
| 42 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 44 | SET SCREW M5x12 1315/0101Z | 1 | $0.44 | |||
| 45 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.65 | |||
Showing 1 to 39 of 39 parts
