Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| O RING 2401/0511 | 1 | $16.19 | ||||
| 1 | Pipe assembly 668/40001 | 1 | $501.82 | |||
| 2 | ADAPTOR G3/4A-3/4UNF(M) 1620/0014 | 1 | $111.97 | |||
| 7 | HOSE 638/80000 | 1 | $292.87 | |||
| 8 | ADAPTER 816/13211 | 1 | $176.45 | |||
| 9 | CLAMP 265/02930 | 1 | $114.96 | |||
| 10 | Bracket 265/01560 | 1 | $40.58 | |||
| 11 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 12 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 13 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 14 | ADAPTOR G1-1/4A M/M 1604/0009 | 1 | $74.20 | |||
| 15 | ADAPTER 816/13169 | 1 | $28.74 | |||
| 16 | (S) CAP 3/8BSP USE 816/90044 816/00189 | 1 | $4.43 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-
DIAG-E1-18-1-404763 E1-18-1 HOSE AND PIPEWORK STEER VALVE
View Diagram -

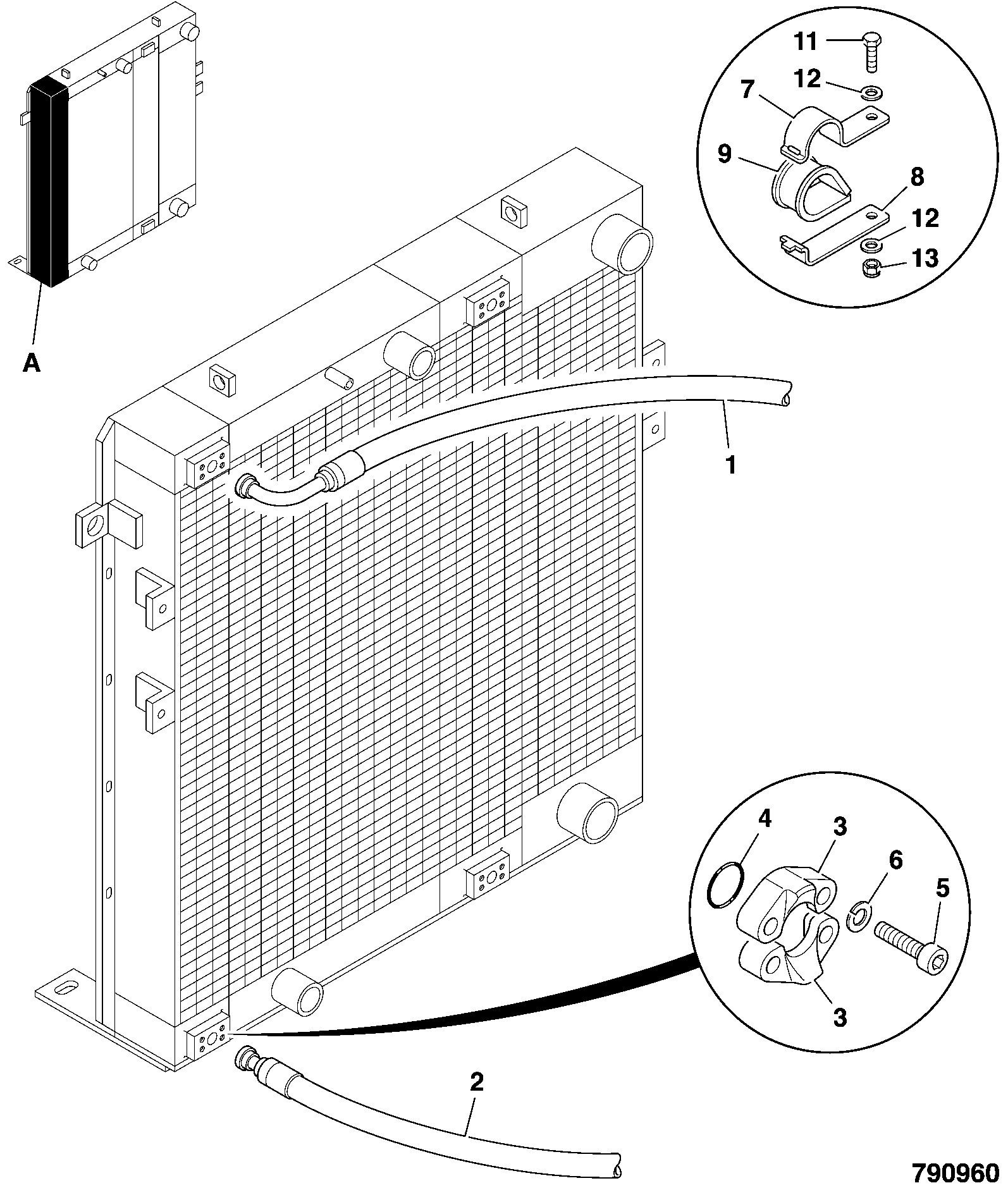

DIAG-E1-20-1-404763 E1-20-1 HOSE AND PIPEWORK HYDRAULIC OIL COOLER
View Diagram -

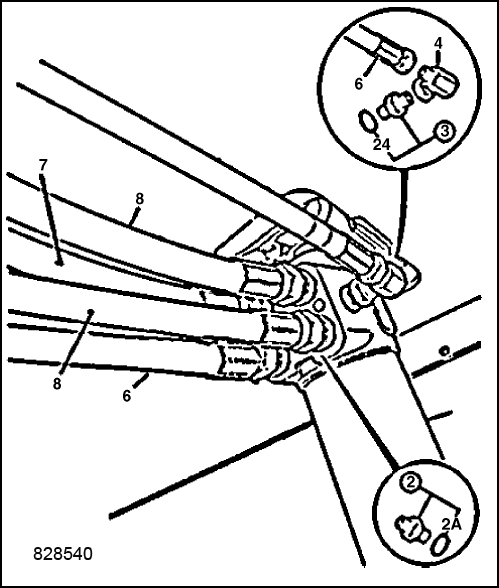

DIAG-E1-17-1-404763 E1-17-1 HOSE AND PIPEWORK STEER VALVE
View Diagram
