Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| HOSE 1/4BSP 610mm 611/21200 | 1 | $41.69 | ||||
| NUT M8 STD SELF LOCK 1370/0203D | 1 | $6.15 | ||||
| SETSCREW M8x35 1315/0309D | 1 | $2.40 | ||||
| T ADAPTOR WA 426/36 335/11104 | 1 | $66.66 | ||||
| WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | ||||
| 1 | 'STEER VLVE 740 CC/REV 446 (233-4057-003 35/910105 | 1 | $3,705.40 | |||
| 1 | STEER VALVE 588 CC/REV (233-4072-003) 35/902700 400/Y8627 | 1 | $3,212.70 | |||
| 2 | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 2A | O-RING 2401/0506 | 1 | $1.46 | |||
| 3 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 3A | O-RING 2401/0505 | 1 | $0.68 | |||
| 6 | HOSE 1/2BSP 2080mm 613/80181 | 1 | $78.39 | |||
| 25 | HOSE 615/29700 | 1 | $177.34 | |||
| 36 | ELBOW ADAPTOR M/M 816/90459 | 1 | $6.74 | |||
| 36 | ELBOW G1/4A X 9/16UNF 816/90618 | 1 | $21.13 | |||
| 38 | Hose "SLS" 269/40962 | 1 | $122.71 | |||
| 39 | HOSE 1/2BSP 1300mm 629/80093 | 1 | $80.62 | |||
| 60 | HOSE 1/2BSP 1800mm 613/29700 | 1 | $192.51 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-

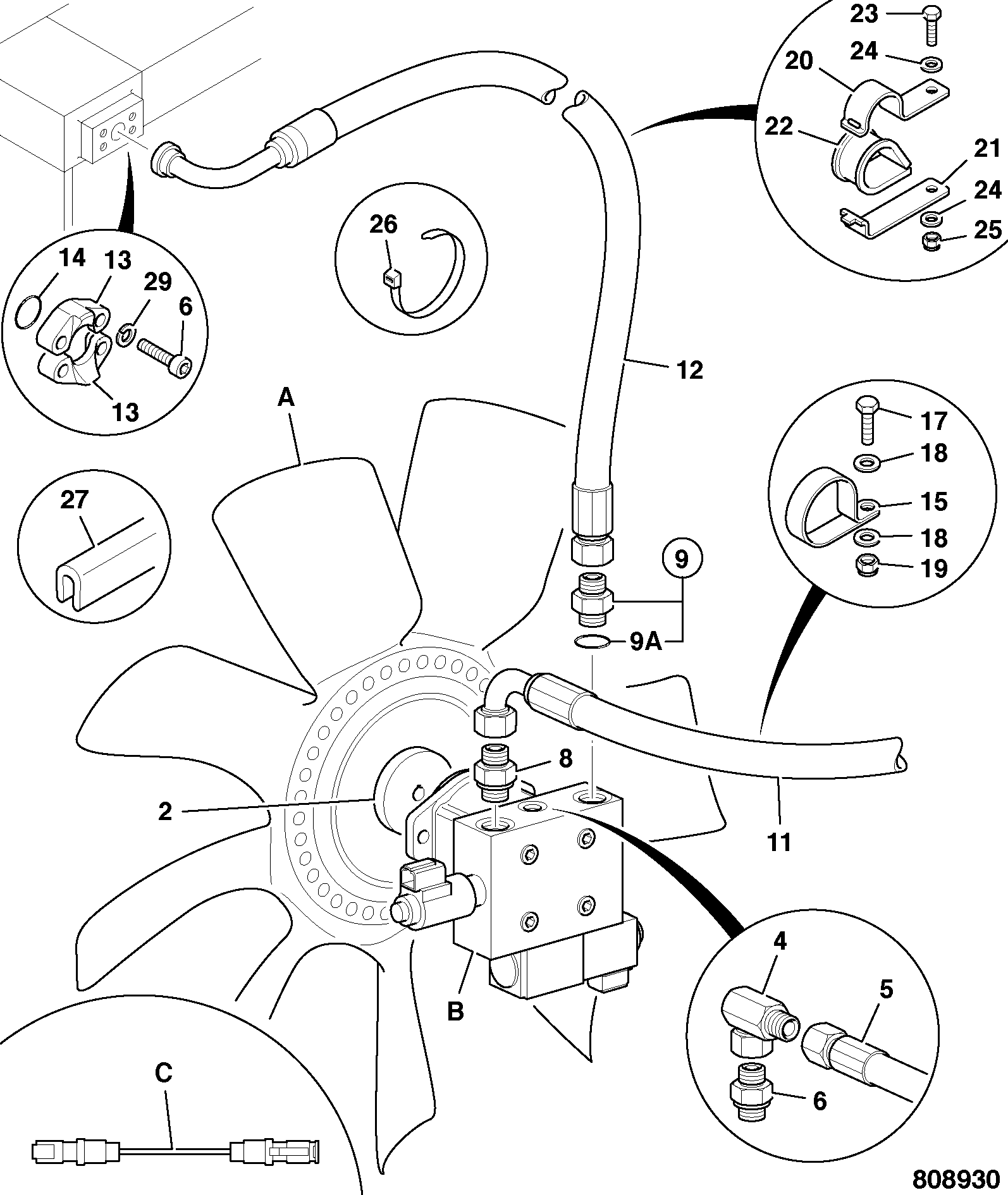

DIAG-E1-15-5-404694 E1-15-5 HOSE AND PIPEWORK REVERSE FAN MOTOR COOLING BAY
View Diagram -
DIAG-E1-19-1-404694 E1-19-1 FILTER, HYDRAULIC RETURN PIPE
View Diagram -

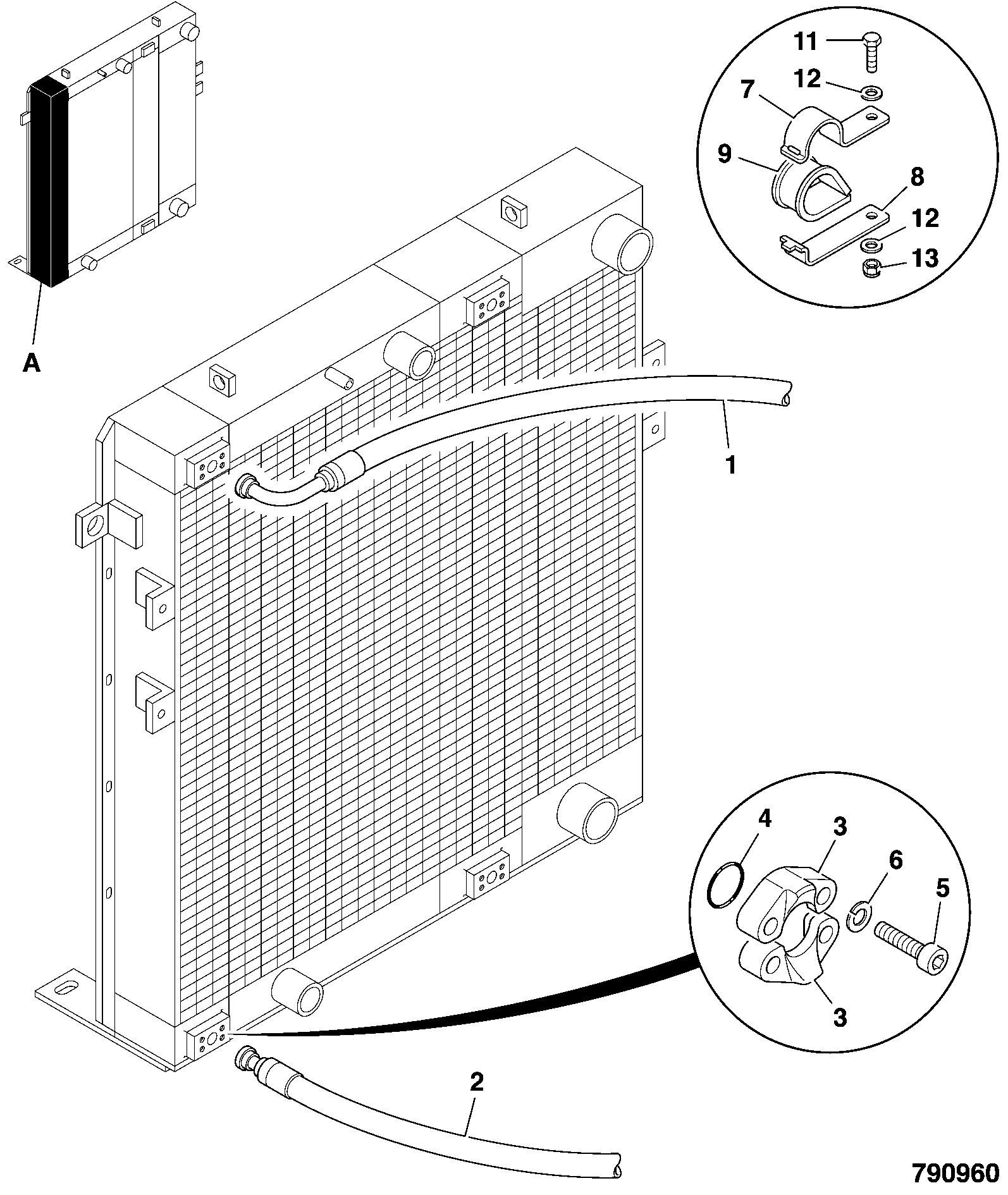

DIAG-E1-20-1-404694 E1-20-1 HOSE AND PIPEWORK HYDRAULIC OIL COOLER
View Diagram
