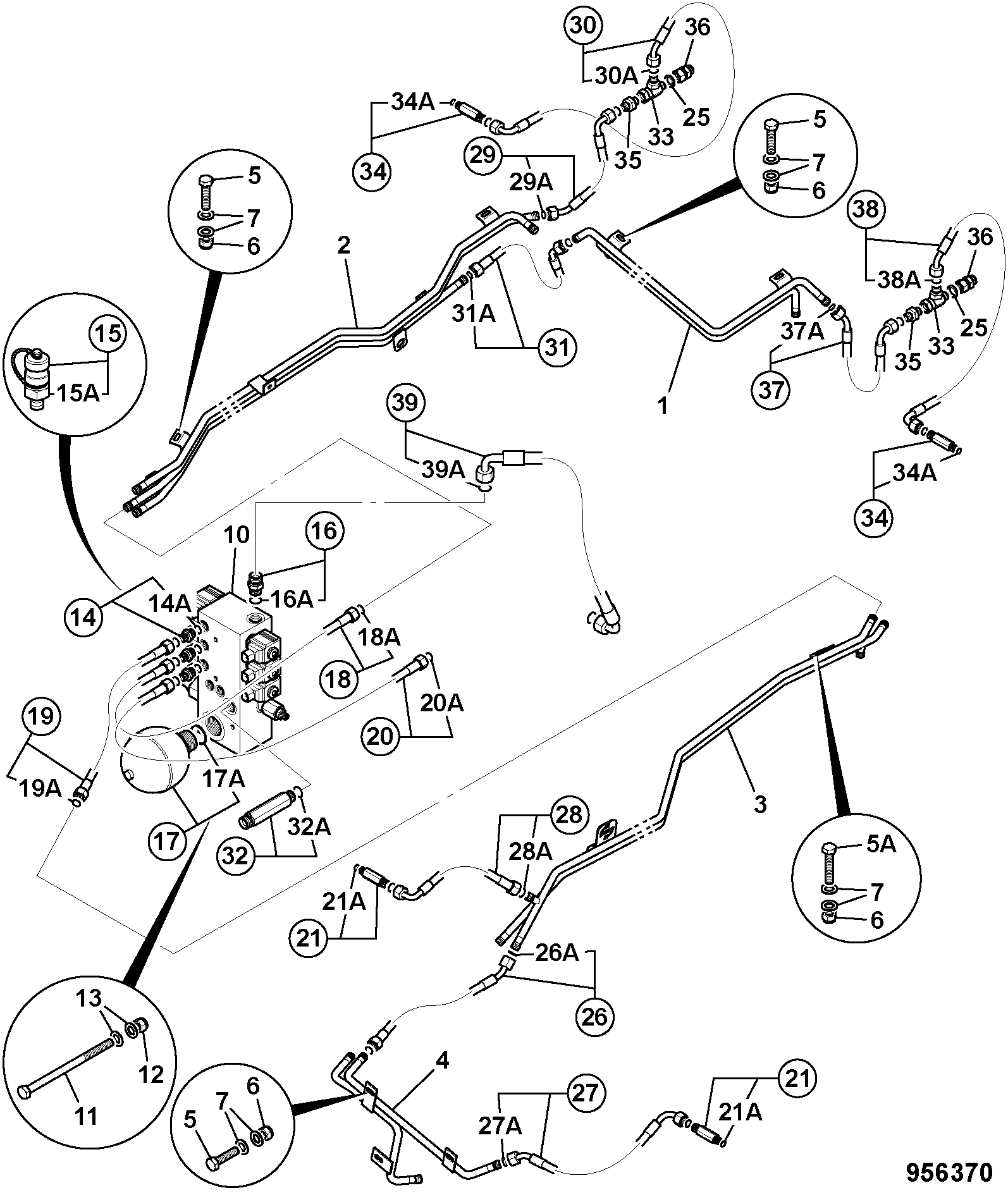

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| HOSE -04 BSP HP 550mm C 611/80070 | 1 | $51.43 | ||||
| SPACER - 11x30x8 THK. 823/10312 | 1 | $28.69 | ||||
| 5 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 5A | HEX SCREW M6x32 LG 1315/0208D | 1 | $0.51 | |||
| 10 | P140 SUSPENSION VALVE 332/T9447 | 1 | $3,055.33 | |||
| 11 | BOLT M6x100 1315/3220D | 1 | $1.26 | |||
| 12 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 13 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 14 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 14A | O-RING 2401/0503 | 1 | $0.54 | |||
| 15 | PRESSURE TEST ADAPTOR 45/904200 | 1 | $25.74 | |||
| 15A | KIT-SEAL 45/904201 | 1 | $57.73 | |||
| 16 | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 16A | O RING 2401/0504 | 1 | $0.62 | |||
| 17 | GAS SPRING 75 BAR 476/01600 333/R6469 | 1 | $213.56 | |||
| 17A | GAS SPRING, SEAL 813/00381 | 1 | $33.88 | |||
| 18 | HOSE 1/4 BSP 500mm 332/S8219 | 1 | $265.67 | |||
| 18A | O-RING 828/00237 | 1 | $0.20 | |||
| 19 | HOSE 1/4 BSP 420mm 332/S8244 | 1 | $19.46 | |||
| 21 | ADAPTOR 332/R9187 | 1 | $12.17 | |||
| 22 | CHECK VALVE(FPRU1-4-0.5BAR_0.7) 332/T8059 | 1 | $51.65 | |||
| 23 | ADAPTOR G1/4A X G1/4 1612/0002 1612/2050 | 1 | $16.07 | |||
| 24 | ADAPTOR G1/4A M/M 1604/0002 | 1 | $29.81 | |||
| 25 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | |||
| 28 | HOSE 1/4 BSP 260MM (P564) 332/T9814 | 1 | $21.31 | |||
| 29 | HOSE 1/4 BSP 210MM 332/U2641 | 1 | $24.89 | |||
| 30 | HOSE 1/4 BSP 600MM 332/U1211 | 1 | $57.79 | |||
| 31 | HOSE -4 BSP 400mm 611/20800 336/F4266 | 1 | $22.31 | |||
| 32A | O-RING 2401/0506 | 1 | $1.46 | |||
| 33 | ADAPTOR 1/4 BSP TEE-M/F/M 816/90013 | 1 | $80.41 | |||
| 34 | ADAPTOR 477/00431 | 1 | $50.94 | |||
| 35 | RESTRICTOR 0.7MM 816/10170 | 1 | $16.04 | |||
| 37 | HOSE 1/4 BSP 300MM 332/U3088 | 1 | $27.53 | |||
| 38 | HOSE 611/48600 | 1 | $137.21 | |||
| 39 | HOSE ASSY TBV 633/80025 | 1 | $81.94 | |||
| 39 | HOSE STEER 332/Y1217 | 1 | $362.83 | |||
Showing 1 to 36 of 36 parts
Related Assemblies
-
DIAG-E1-17-2-393710-10576572 E1-17-2 CIRCUIT SUSPENSION
View Diagram -
DIAG-E1-16-1-393710 E1-16-1 CIRCUIT TRANSMISSION TEST
View Diagram -
DIAG-E1-17-12-393710 E1-17-12 CIRCUIT, SUSPENSION PUMP FEED 6 X 4 GEARBOX
View Diagram
