Scroll to zoom Click a part # to view details

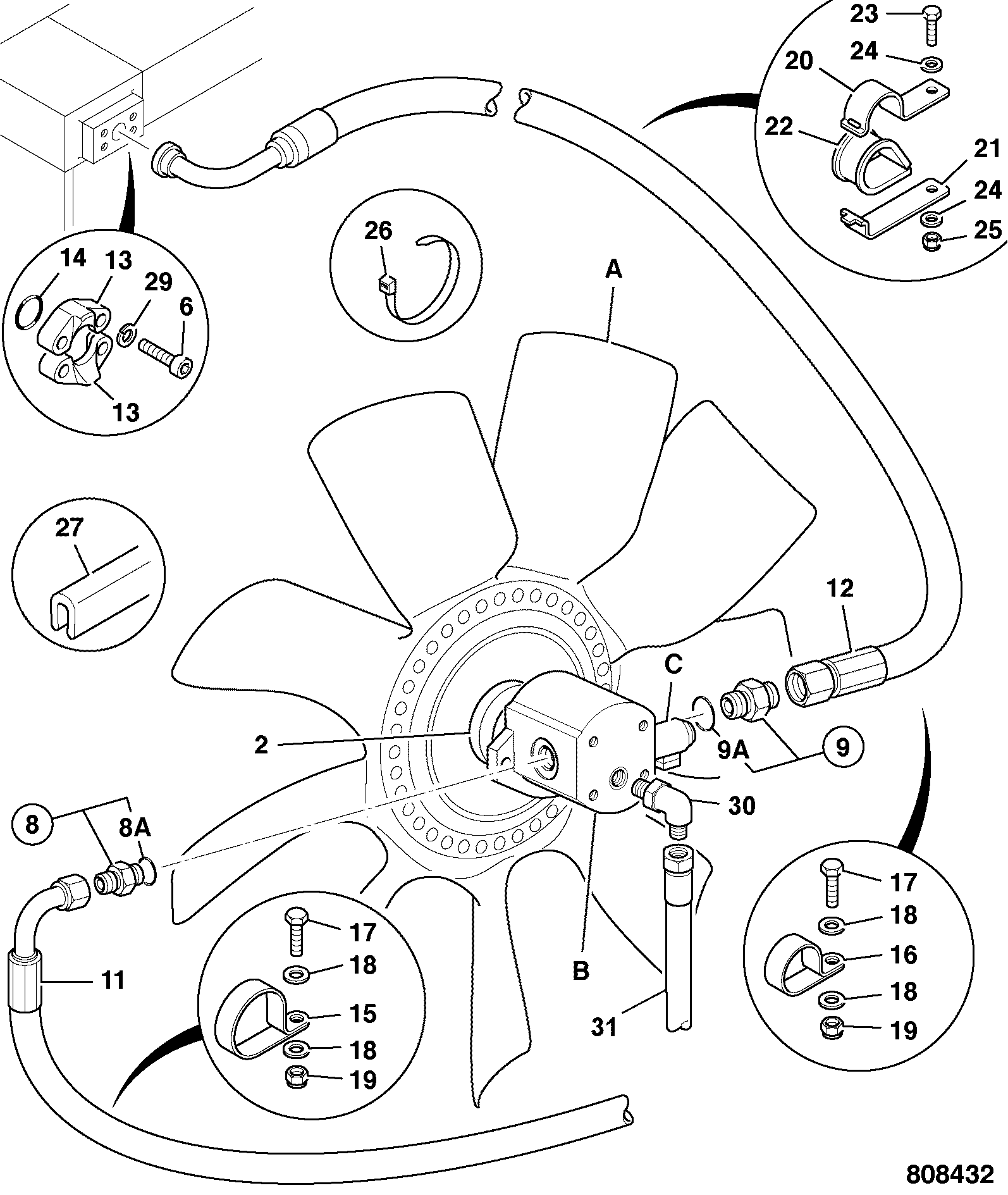

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| O-RING 2401/0506 | 1 | $1.46 | ||||
| P CLIP 20mm DIA. 821/00306 | 1 | $6.70 | ||||
| 2 | FAN DRIVE COUPLING 331/53398 | 1 | $518.60 | |||
| 5 | HOSE G1/4 LP 5150MM 631/80062 | 1 | $100.83 | |||
| 8 | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 9 | ELBOW ADAPTOR M/M 816/90478 | 1 | $18.16 | |||
| 9A | 'O' RING (P564) 2401/0507 | 1 | $1.46 | |||
| 11 | HOSE 1/2" bsp 4000mm 613/31600 | 1 | $142.19 | |||
| 12 | HOSE 3/4" BSP x 1"SAE LP 616/80150 | 1 | $316.77 | |||
| 13 | FLANGE SPLIT KRJ2682 | 1 | $18.47 | |||
| 14 | O RING 2401/0210 | 1 | $1.39 | |||
| 15 | P-CLIP - 13mm 821/10087 | 1 | $12.69 | |||
| 17 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 18 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 19 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 20 | (W) (Pre-P) CLAMP TOP 821/00183 | 1 | $28.83 | |||
| 21 | (W) (Pre-P) CLAMP BASE 821/00184 | 1 | $21.40 | |||
| 22 | RUBBER-INSERT 821/00185 | 1 | $16.69 | |||
| 23 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 24 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 25 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 26 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | |||
| 27 | STRIP EDGE 30M (ROLL) 926/04800 | 1 | $6.43 | |||
| A | FAN COOLING 28" 30/925628 | 1 | $717.61 | |||
| B | GEAR MOTOR - BI DIRECTION 333/S1282 | 1 | $1,663.33 | |||
| C | LINK HARNESS DT06-2S TO D 721/11440 | 1 | $58.47 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-
DIAG-E1-15-2-404642 E1-15-2 HOSE AND PIPEWORK FAN MOTOR COOLING BAY
View Diagram -
DIAG-E1-17-1-404642 E1-17-1 HOSE AND PIPEWORK STEER VALVE
View Diagram -
DIAG-E1-14-2-404642 E1-14-2 HOSE AND PIPEWORK LOAD SUSPENSION
View Diagram
