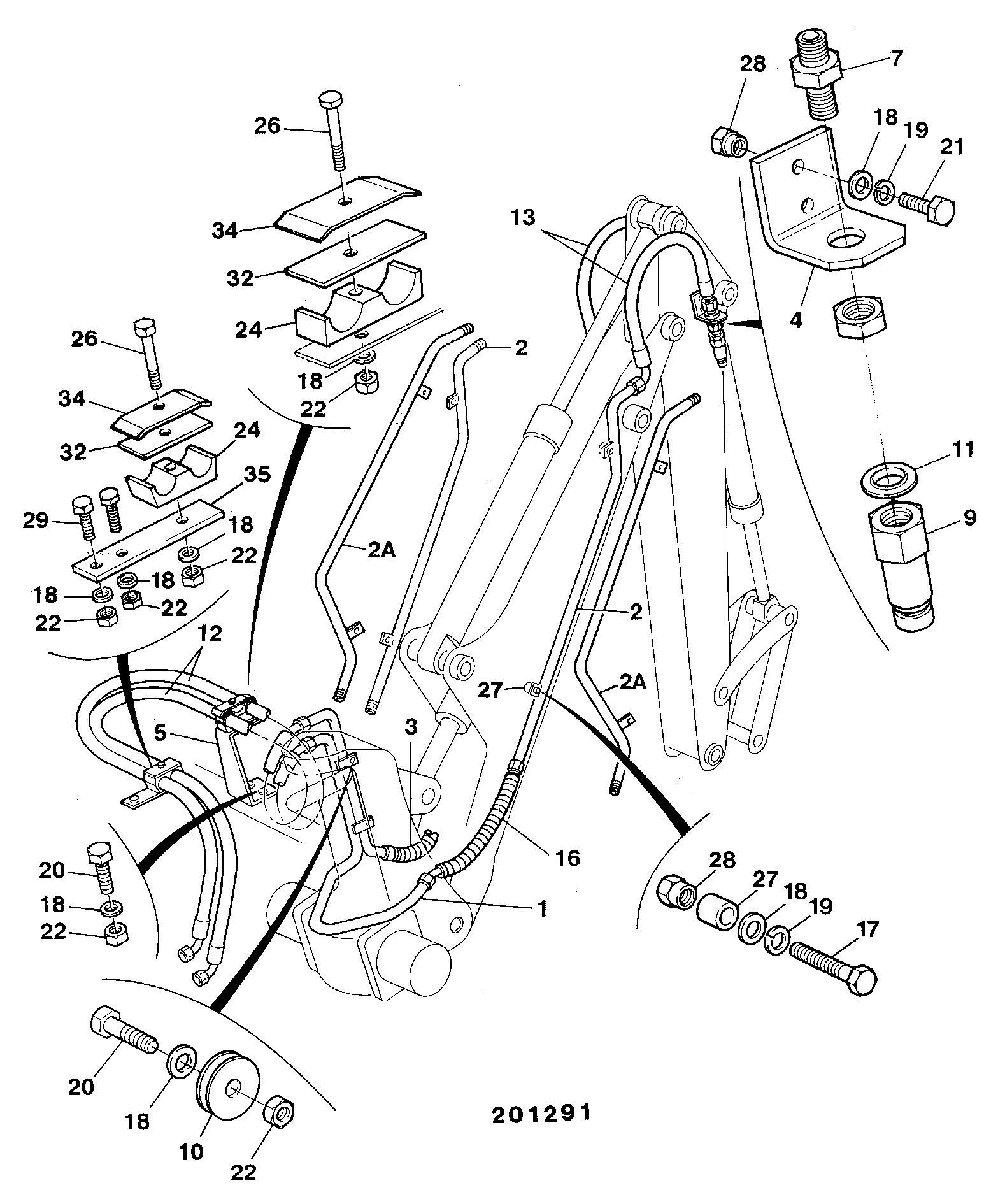

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| WASHER LOCKING 1417/0019Z | 1 | $1.16 | ||||
| 3 | HOSE 5/8BSP 570mm 614/03300 | 1 | $75.25 | |||
| 4 | BRACKET 290/00337 | 1 | $92.30 | |||
| 7 | ADAPTOR 816/10144 | 1 | $120.34 | |||
| 10 | SPACER - ZINC PLATED 210/33605 | 1 | $27.84 | |||
| 11 | WASHER BONDED 1" BSP 1406/0021 | 1 | $6.00 | |||
| 12 | HOSE 614/45000 | 1 | $325.77 | |||
| 13 | HOSE 5/8BSP 645mm 614/25400 | 1 | $80.34 | |||
| 14 | PIPE CLAMP 821/00350 | 1 | $42.80 | |||
| 15 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 16 | HOSE 5/8BSP 600mm 614/25300 | 1 | $77.35 | |||
| 18 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 19 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 20 | BOLT M8x45 1315/3311Z | 1 | $2.08 | |||
| 21 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 22 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 23 | BOLT M8x75 1315/3317Z | 1 | $3.61 | |||
| 24 | CLAMP (PAIR) 821/00117 | 1 | $5.13 | |||
| 25 | CLAMP COVER 821/00108 | 1 | $5.61 | |||
| 26 | (W) (P) SET SCREW M6x40 1315/0210Z | 1 | $6.06 | |||
| 27 | SPACER 10X20X18.5 290/00460 | 1 | $3.67 | |||
| 28 | RIVET NUT M8 826/01254 826/01106 | 1 | $1.04 | |||
| 29 | BOLT M8x35 1315/3309Z | 1 | $1.97 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-E1-14-2-394174 E1-14-2 CIRCUIT SLEW, JCB X PATTERN
View Diagram -
DIAG-E1-15-2-394174 E1-15-2 CIRCUIT, EXCAVATOR AUXILIARY
View Diagram -
DIAG-E1-14-1-394174 E1-14-1 CIRCUIT SLEW, JCB + & ISO +
View Diagram
