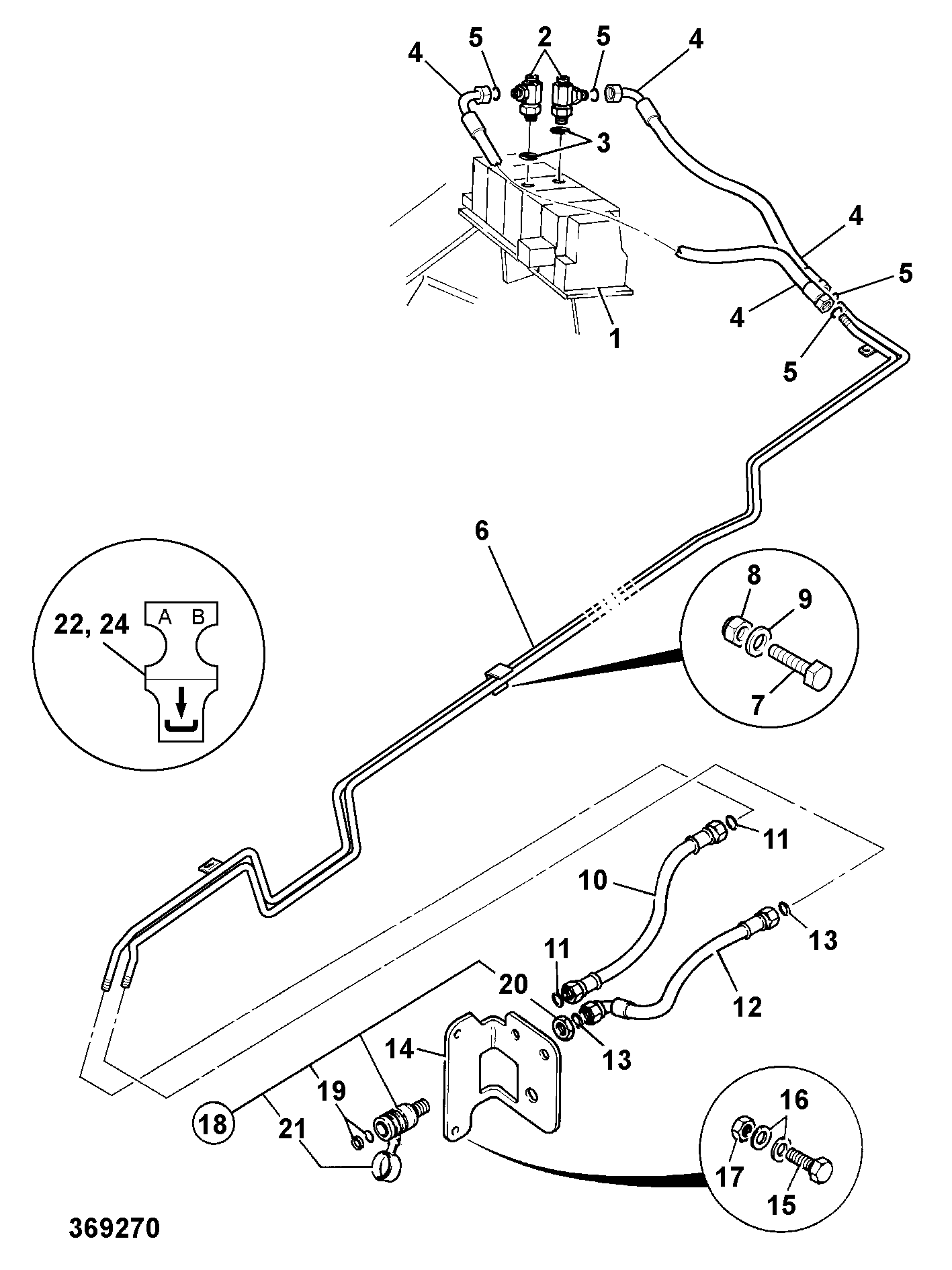

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | ADAPTOR 478/00663 | 1 | $14.52 | |||
| 3 | O-RING 828/00293 | 1 | $1.75 | |||
| 4 | HOSE 3/8BSP 700mm 612/26600 | 1 | $52.70 | |||
| 5 | O RING 2301/0006 | 1 | $1.89 | |||
| 6 | HOSE 477/00471 | 1 | $50.87 | |||
| 8 | PIPE:FRNT HITCH FEED 830/10651 | 1 | $179.17 | |||
| 9 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 10 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 11 | SPACER 477/00509 | 1 | $15.27 | |||
| 12 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 15 | QR COUPLING 3/8BSP BULKHEAD 45/909000 45/911800 | 1 | $91.05 | |||
| 16 | Kit-seal 2 x 10 pi 45/911801 333/F0331 | 1 | $32.92 | |||
| 17 | BACK NUT 3/8"BSP 1356/0003Z | 1 | $8.47 | |||
| 18 | QRC CAP:ORANGE 477/01411 | 1 | $17.33 | |||
| 19 | DECAL ORANGE 4 SPO 817/16986 | 1 | $23.53 | |||
| 20 | DECAL ORANGE 4 SPO 817/16989 | 1 | $10.51 | |||
Showing 1 to 16 of 16 parts
