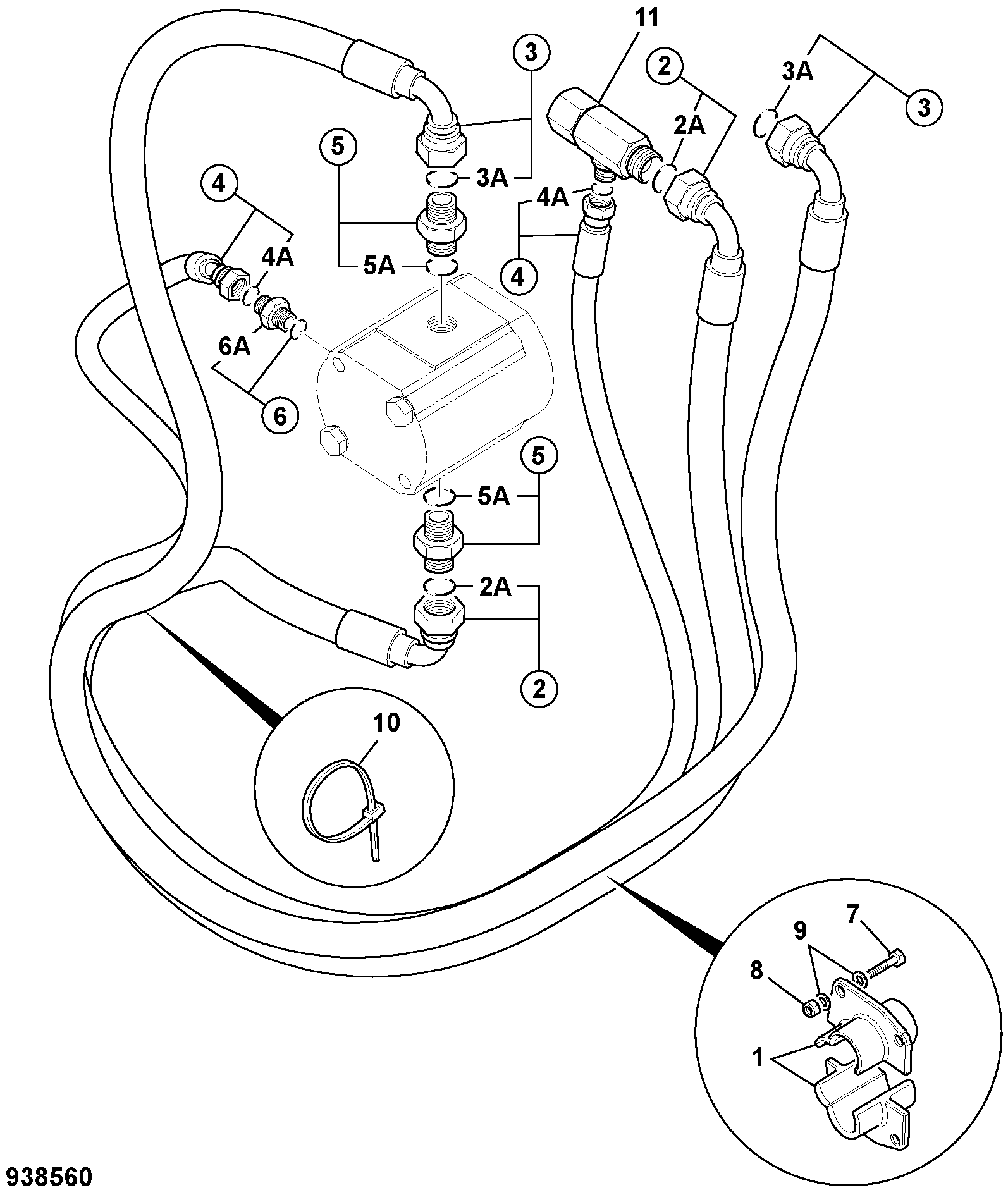

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| O Ring 333/D5649 | 1 | $40.84 | ||||
| Seal shaft 333/D5648 | 1 | $34.77 | ||||
| 10 | fan 23" cooling 30/926950 | 1 | $478.03 | |||
| 20 | FAN MOTOR 15cc REV 332/H0550 | 1 | $2,250.83 | |||
| 30 | FAN SPIDER 23 FAN 332/E4725 | 1 | $46.97 | |||
| 40 | FAN REVERSE VALVE 332/C2222 333/G4580 | 1 | $485.20 | |||
| 50 | Hose 1/2 BSP 950MM 332/D0217 | 1 | $77.74 | |||
| 60 | HOSE 1/2BSP 715mm 613/22800 | 1 | $134.47 | |||
| 70 | Hose 1/2 BSP 720MM 332/D0189 | 1 | $64.37 | |||
| 80 | Hose 1/2 BSP 920MM 332/D0148 | 1 | $74.20 | |||
| 90 | (P) HOSE 1/4 BSP 1000 LONG 332/C4942 | 1 | $50.51 | |||
| 100 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 110 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 120 | CAP SCREW M6x60 1391/3214Z | 1 | $1.05 | |||
| 130 | (W) (Pre-P)-BOLT M8x55 1315/3313Z | 1 | $2.47 | |||
| 140 | BOLT.M10X120MM LONG 1315/3422Z | 1 | $7.44 | |||
| 150 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $0.80 | |||
| 160 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $6.63 | |||
| 170 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 180 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 190 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 200 | GROMMET BLIND 2410/1101 | 1 | $5.19 | |||
| 210 | P CLIP 20mm DIA. 821/00306 | 1 | $6.70 | |||
| 230 | CABLE TIE LOCKING(KANBAN) 826/11436 | 1 | $2.75 | |||
| 240 | ELBOW ADAPTOR 1/4BSP (P493) 816/90004 | 1 | $35.04 | |||
| 250 | ADAPTOR 1/4 BSP BULKHEAD 816/90005 | 1 | $4.45 | |||
| 260 | HOSE 1/4BSP 575mm 611/05100 | 1 | $115.91 | |||
| 270 | PLUG 9/16UNF O RING BOSS 1745/0002 | 1 | $106.02 | |||
Showing 1 to 28 of 28 parts
Related Assemblies
-
DIAG-E1-13-24-400911-13051463 E1-13-24 CIRCUIT,COOLING FAN REVERSING, MT3 99BHP/114BHP ENGINE BUILDS WITH CAC
View Diagram -
DIAG-E1-14-1-400911-13051473 E1-14-1 CIRCUIT ACCUMULATOR HYDRAULICS
View Diagram -
DIAG-E1-13-23-400911-13051460 E1-13-23 CIRCUIT,COOLING FAN NON-REVERSING MT3 99BHP/114BHP ENGINE BUILDS WITH CAC
View Diagram
