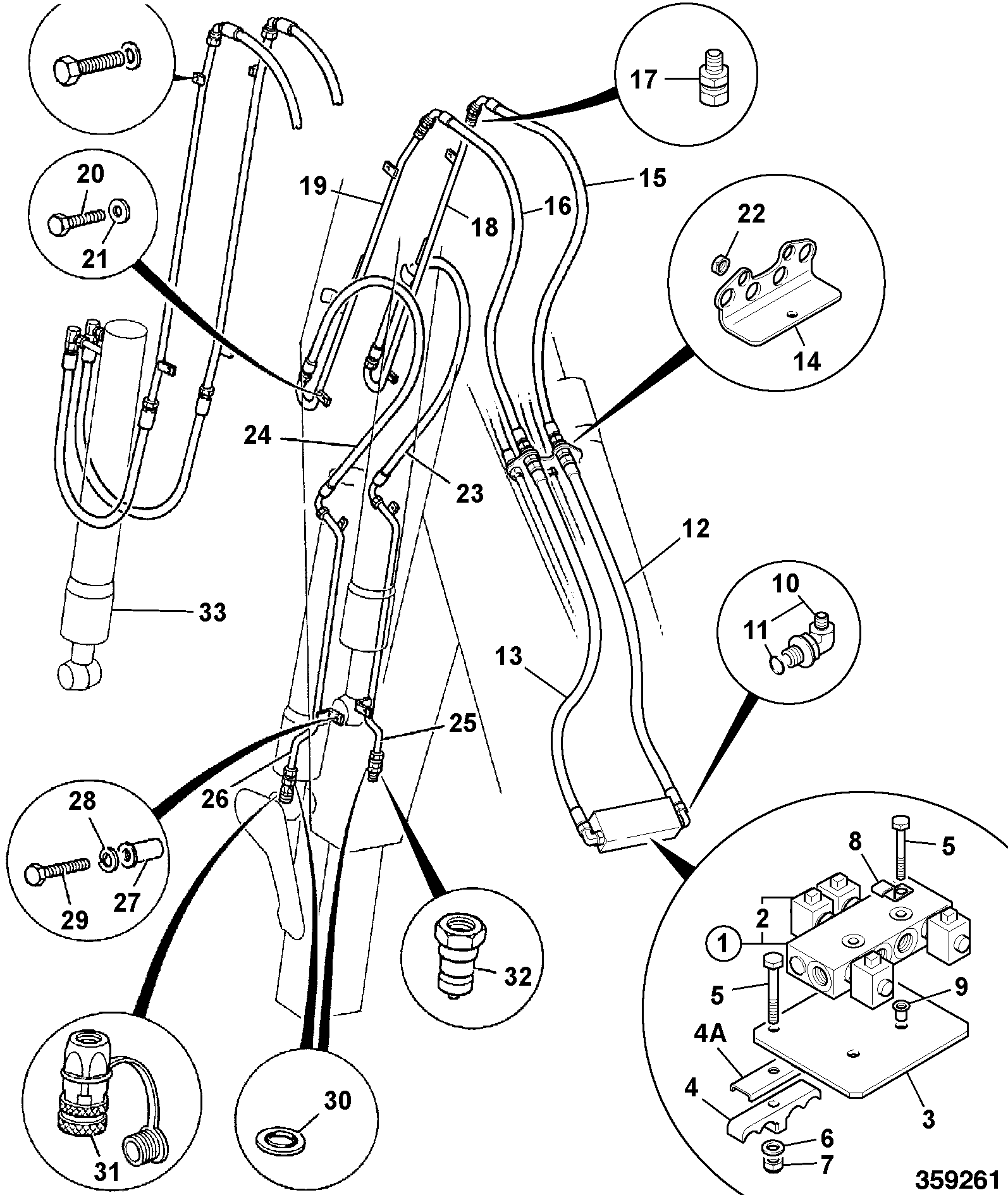

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| COUPLING COVER 835/10109 980/67301 | 1 | $2.99 | ||||
| COUPLING QR MALE F9 - 1/2BSP 45/910500 | 1 | $78.76 | ||||
| FLIP TOP CAP 835/10082 | 1 | $5.79 | ||||
| WASHER 7/8" INT LOCK 1418/0018Z | 1 | $5.34 | ||||
| 1 | HOSE 1/2BSP 2880mm 629/27400 | 1 | $781.26 | |||
| 3 | PIPE CLUSTER 125/99100 | 1 | $1,650.36 | |||
| 4 | BOLT M10x60 1315/3414Z | 1 | $1.95 | |||
| 5 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 6 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 7 | HOSE 35 1/2 STR/STR 613/05500 | 1 | $132.94 | |||
| 9 | BACK NUT 1/2"BSP 1356/0204Z | 1 | $6.20 | |||
| 10 | HOSE 613/08000 | 1 | $251.77 | |||
| 12 | PIPE LEFT HAND JAW 125/00264 | 1 | $1,291.39 | |||
| 13 | PIPE RIGHT HAND JAW 125/00265 | 1 | $643.75 | |||
| 14 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 15 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 16 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 17 | (P) ADAPTOR G1/2A X G1/2 1612/0004 1612/2052 | 1 | $76.32 | |||
| 18 | WASHER 1406/0018 | 1 | $4.09 | |||
| 19 | COUPLING QR FEMALE F9 - 1/2BSP 45/910400 | 1 | $124.19 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-
DIAG-E1-11-12-394940 E1-11-12 CIRCUIT, AUXILIARY EXTENTION RAM EXTRADIG DIPPER 1550, V.FLOW PUMP
View Diagram -
DIAG-E1-12-31-394940 E1-12-31 CIRCUIT, JAW BUCKET EXTRADIG DIPPER 1550
View Diagram -
DIAG-E1-11-3-394940-11002174 E1-11-3 CIRCUIT, AUXILIARY EXTENTION RAM EXTRADIG DIPPER 1550 GEAR PUMP
View Diagram
