Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 11 | BRACKET 265/00435 | 1 | $79.83 | |||
| 12 | CLAMP (1EA = 2 HALF) 821/00285 | 1 | $34.86 | |||
| 13 | HOSE 1/2BSP 830mm 613/07400 | 1 | $53.19 | |||
| 14 | HOSE 613/80017 | 1 | $80.99 | |||
| 16 | BOLT M8x100 1315/3320D | 1 | $6.60 | |||
| 17 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 18 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
Showing 1 to 7 of 7 parts
Related Assemblies
-

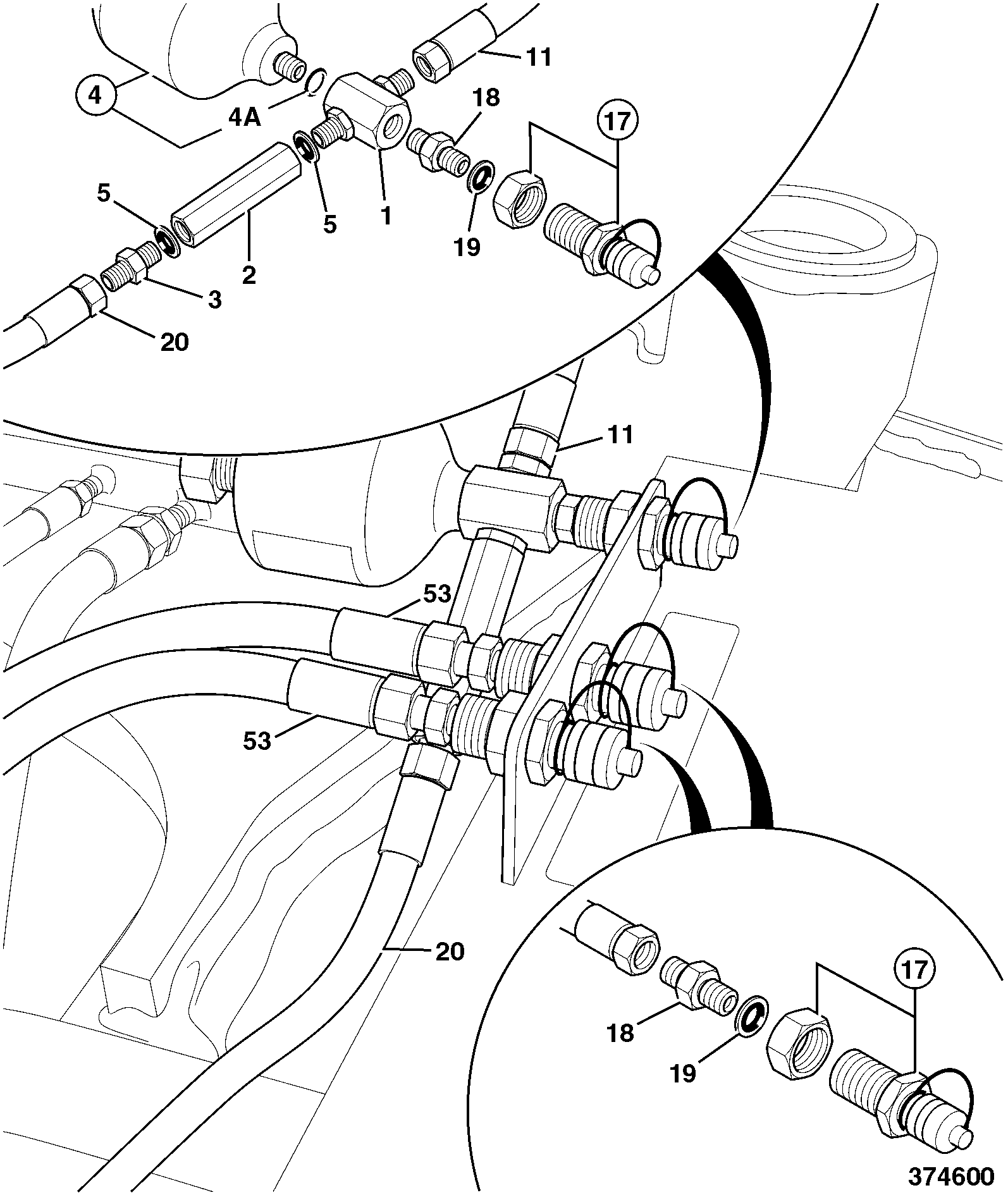

DIAG-E1-11-1-404930 E1-11-1 HOSE AND PIPEWORK TEST POINTS
View Diagram -

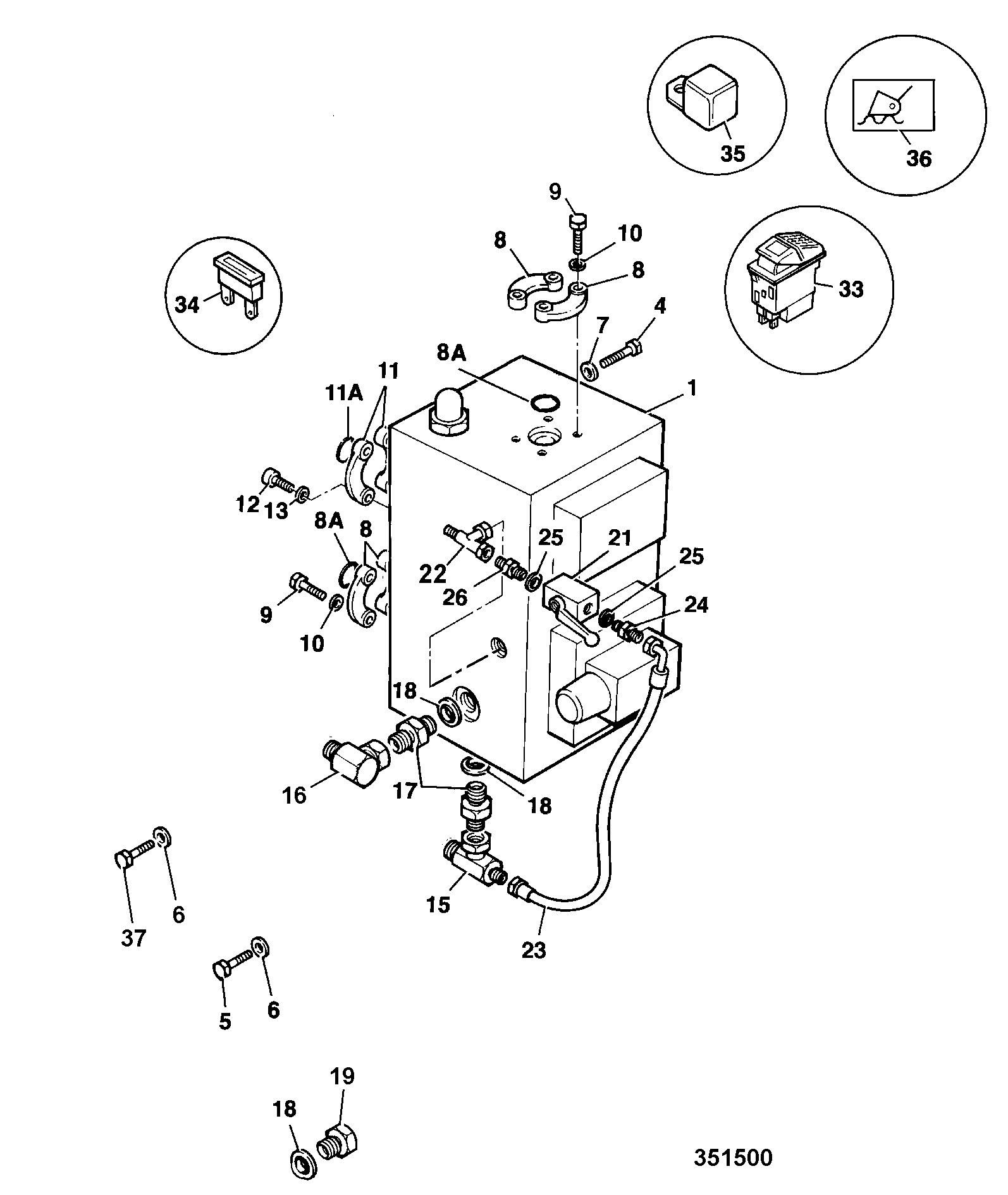

DIAG-E1-13-1-404930-15830166 E1-13-1 LOAD SUSPENSION VALVE PAGE SUPERCEDED, SEE E1-17-1, E1-18-1
View Diagram -
DIAG-E1-10-4-404930 E1-10-4 CIRCUIT SERVO VALVE 2 SPOOL, PAGE SUPERSEDED, REFER TO INDEX
View Diagram
